RICOH TC II R Twin color digital production printer (вспомогательное устройство)

Ricoh дополнительное оборудование и комплектующие

P/N:

КАТАЛОГ ЗАПАСНЫХ ЧАСТЕЙ Ricoh TC-IIR

Краткое описание:

Быстро растет спрос на устройства, обеспечивающие качественную печать небольших тиражей по требованию. Все чаще необходима не только черно-белая, но и двухцветная печать на бланках, конвертах и карточках, а также печать рекламных листовок, анкет и форм.

Вспомогательное устройство Ricoh TC-IIR представляет собой однопроходный дупликатор для двухцветной печати. Являясь дополнением к дупликаторам HQ7000 и HQ9000, это устройство обеспечит высокую производительность, отличное качество и простоту использования. Ricoh TC-IIR экономит ваше время и деньги и поднимает цветную печать на профессиональный уровень.

Технические характеристики

Digital duplicators effectively fill a market niche where large quan-tities of single documents must be created at low cost. This market includes schools, nonprofit groups, churches, and other organiza-tions with limited budgets.

Not content with just these industry segments, duplicator compa-nies are raising the bar in the quality and technology available on devices, expanding to markets outside of the cost-strapped envi-ronments and into corporate and commercial print situations.

The Ricoh Digital Duplicating Combination is a perfect example of technology opening new doors into high-production commercial environments, a market sub-segment that—until now—has been difficult for digital duplicator manufacturers to address.

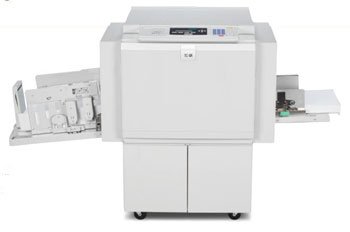

The HQ9000

The Ricoh HQ9000 is the new kid on the block in this trilogy of technology pieces, replacing the successful (and former BERTL’s Best award-winning) Ricoh Priport JP8500. The HQ9000 features 600 x 600 dpi scanning and output resolution like its predecessor, and brings a wealth of new technology to the table including a faster 135 ppm engine, an improved touch screen interface for faster job build, and a new print on demand function.

It also features PostScript 3 capability, the optional LS3000R high-capacity 3,000 sheet paper feeder module, and a new ink formu-lation designed to provide even faster drying times and crisper out-put.

While the HQ9000 is impressive in its own right, it is its ability to be combined with other Ricoh products—the dual-color TC-IIR pro-ductions printer, the SeriPrinter Model 25 instant-drying module, and a variable data inkjet printer module—that make it a true pro-duction class product for high run output.

The TC-IIR

The TC-IIR is a dual-color single pass production printer. Once masters have been created on the HQ9000, the user moves the mastered drums into the TC-IIR. The TC-IIR then runs with the print job on its own, freeing the HQ9000 to print another job or cre-ate more masters.

With just the combination of the HQ9000 and TC-IIR, the ability to handle two print runs concurrently can double output volume (monochrome on both, or monochrome on one and two-color on the other) in very high-production environments.

The TC-IIR includes fine registration adjustment capabilities allow-ing users to tighten registration from master layer to layer down to 1mm accuracy. Output colors can be changed by simply swapping an existing color cylinder for another cylinder supporting a different color. Ricoh offers 16 different standard colors, and can also pro-vide custom colors.

The SeriPrinter 25

One of the downsides of multi-pass digital duplicating is the risk of ink offsetting (smudging) while new pages are output on top of just-inked pages. Ricoh has addressed this issue exceptionally well with the SeriPrinter Model 25. The SeriPrinter Model 25 connects to the paper exit tray of the device (either the HQ9000 or TC-II) and, using ultraviolet light, instantly dries even heavily-inked pages.

While the concept of drying ink in this manner is simple, the SeriPrinter Model 25 dramatically enhances the output in a digital duplicating environment. First, high-speed ink drying enables the faster, less user-intensive creation of true, four-color digital duplica-tion printing since each output stack can be dried and immediate-ly re-fed through other equipment to apply the next color.

Second, output from one device (the HQ9000, for example) can be dried with the SeriPrinter and fed through another device such as the TC-IIR, or any copier or printer. In environments with both out-put devices, production speed is increased even more since the issue of drying time is eliminated.

Third, no matter what the combination of Ricoh equipment or where the output is headed, the SeriPrinter collectively makes wet ink-related issues (smudging, registration, and other imperfec-tions) a thing of the past.

Through this combination of features, it is now possible to produce full color output through the creation of CMYK master plates and two dual drum print runs on the TC-IIR with instant second pass capabilities through the instant-dry technology provided by the SeriPrinter Model 25.

The 1mm registration accuracy is obviously not tight enough to offer the same quality of output as a laser/LED or press imaging process, but for many just interested in using color as a communi-cation vehicle, the Ricoh duplicator production combination fits the bill perfectly and is fully deserving of its 2006 BERTL’s Best award.

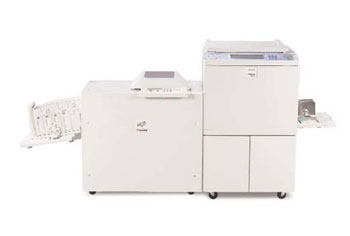

TC-IIR Twin Color Digital Production Printer

Add fast, two-color printing to your Priport.

The Ricoh TC-IIR Digital Production Printer allows you to print two-color documents in a single pass, multiplying the usefulness and economic advantages of your Ricoh Priport.

Save time, cut costs

The Ricoh TC-IIR is the only production printer that can print two colors in one pass. This allows commercial reproduction departments to output more jobs in-house, eliminating the time and costs of outsourcing color projects, while print-for-pay companies can quickly and easily add another profit center to their operations.

• Make two-color, offset-quality printing a simple and convenient proposition for your organization.
• Streamline your production from start to finish, reducing your costs and improving quality at the same time.

Tight registration, dot-on-dot quality

Two-color registration is never an issue with the TC-IIR Digital Pr oduction Printer.

• Exclusive Dual Cylinder Port design guarantees vir tual "dot-on-dot" registration of your two-color documents, resulting in clearer, crisper images print after print.

Fast, simple, flexible operation

The Ricoh TC-IIR contains two inline print cylinder chambers that accept color cylinders from the Ricoh HQ9000 Priport. Simply place two separately imaged color cylinders into the Ricoh TC-IIR to achieve full pr oductivity. It of fers exacting registration on two-color output and prints from 90- to 120- 11"x17" sheets per minute, cutting costs and saving you time on multi-color jobs.

• Easy-to-use LCD display control allows you to create customized jobs quickly and simply.
• Card stock, NCR and embossed papers can be used with equal ease.

The Ricoh TC-IIR digital production printer: two colors, superior registration, twice as fast. It’ s the simple way to multiply the advantages of your Ricoh Priport.

Protecting our shared environment.

The Ricoh TC-IIR Twin Color Digital Production Printer meets our longstanding commitment to engineering office solutions with superior energy and supply-saving features, including:

• Instant Start Up (no warm up) Technology
• Power-saving Sleep Modes
• Zero Ozone Emissions

Specifications

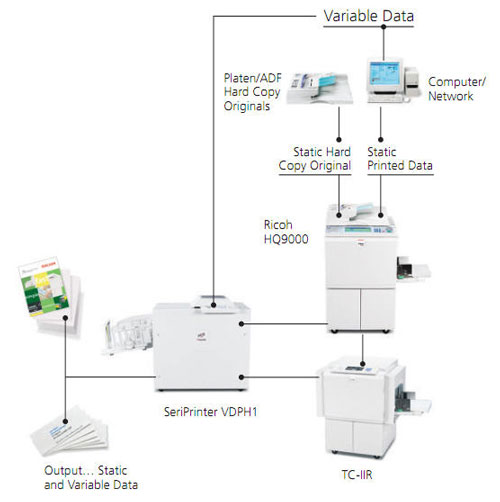

Workflow for Production System
