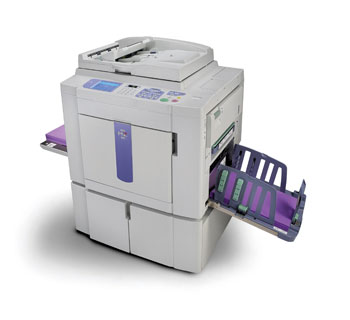

Riso RZ 500

Master-making/printing methods

High-speed digital master-making/full automatic stencil printing

Original Type

Book (10 kg or less), sheet

Original Size (max./min.)

When using the Platen Glass : 50mm x 90mm - 297mm x 432mm When using the ADF unit (option): 90mm x 140mm - 297mm x 432mm

Original Paperweight

When using the Platen Glass : 10 kg or less When using the ADF unit (option): 50g/m² - 110g/m²

Print Paper Size (max./min.)

100mm x 148mm - 297mm x 432mm

Paper Supply Capacity

1000 sheets (64g/m²)

Print Paper Weight

46g/m² - 210g/m²

Image Processing mode

Line, Photo, Duo, Pencil

Resolution

D600dpi

Master-making Time

Approx. 22 seconds (for A4/portrait/100% reproduction ratio)

Printing Area (max.)

210mm x 290mm

Print Reproduction Ratio

Zoom : 50 - 200%

Standard reproduction ratio (enlargement) : 163%, 141%, 122%, 116% Standard reproduction ratio (reduction) : 87%, 82%, 71%, 61%

Margin+ : 90 - 99 %

Print Speed

Approx. 60- 130 sheets per minute (five steps variable)

Print Position Adjustment

Vertical : ±15mm Horizontal : ±10mm

Ink Supply

Full automatic (1000 ml per cartridge)

Master Supply/Disposal

Full automatic (approx. 295 sheets per roll)

Master Disposal Capacity

100 sheets

User Interface

LCD Touch Panel with Progress Arrow indicators, front-side operation

Optional Accessories

Auto Document Feeder AF-V, Job Separator, Key Card Counter, Colour Drum, Network Interface Card RISORINC-NET, Special Paper Feed Kit, Stand

Power Source

RZ500EP : 220V-240V AC, 50/60HZ <1.6A>

Dimensions

When in use : 1380mm(W) x 645mm(D) x 660mm(H) When in storage : 775mm(W) x 645mm(D) x 660mm(H)

Weight

Approx. 103 kg
