Доступны к заказу узлы и запасные части Riso ComColor 9050

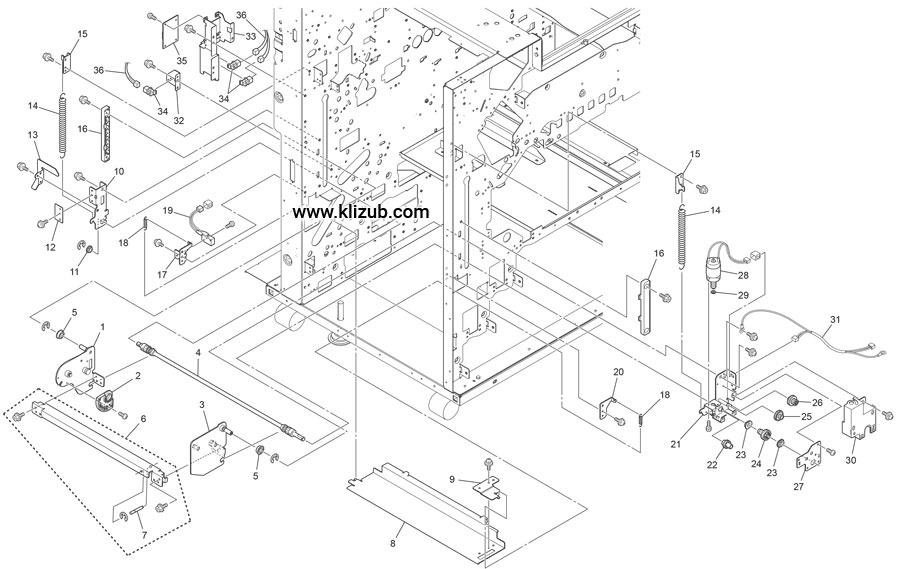

External Paper Feed Tray (1)

External Paper Feed Tray (1)

Ref. Партс код Наименование Примечание
  023-75078-050 Elevator Motor Assy(21-30)
1 050-79727-000 FRAME_FEED_TRY_R_AS
2 050-79736-009 GEAR_FEEDTRY
3 050-79726-003 FRAME_FEEDTRY_F_AS
4 050-74002-082 Elevator Shaft_ASSY
5 050-79729-002 Bearing 678
6 050-79728-006 STAY_EXIT_ASSY
8 050-79730-000 LOWER_FRAME
9 023-12206-008 Support Lower Limit Frame
10 050-79732-003 HOOK_SRG_R
11 607-15000-000 Metal F8x13/12x5:16x2
12 024-12216-000 Plate Paper Volume Detection
13 024-12214-008 FCC Guide
14 050-79731-007 SPRING_E
15 023-12203-009 Bracket Lower limit Frame
16 023-12201-006 Elevator Rack P.-F.
17 050-79733-000 SP_BASE_R
18 050-79737-005 SPRING_L_SNR
19 023-53023-007 Elevator Safety SW
20 023-12251-003 Bracket F
21 023-12234-206 *Motor Chassis Elevator Spring
22 612-80011-001 *Gear m0.8x23+m0.8x14
23 023-12244-104 *Elevator Motor Collar
24 612-10009-107 *Gear m1x24
25 612-80012-008 *Gear m0.8x30+m0.8x14
26 612-80013-004 *Gear m0.8x29+m1x14
27 023-12223-000 *Gear Cover Elevator Motor
28 023-74001-054 *Motor Assy(CWRS-445PA)
29 030-19205-001 *Support Clamp Worm
30 023-12247-006 *Cover Elevator Motor
31 050-79797-008 OR2ELV_CBL
32 023-12233-307 Bracket Lower limit sensor
33 024-12209-101 Bracket Junction PCB
34 444-30008-100 Sensor LG248NL1
35 050-50903-089 PF-RELAY-PCB
36 050-79862-004 Wire Harness PAFEED

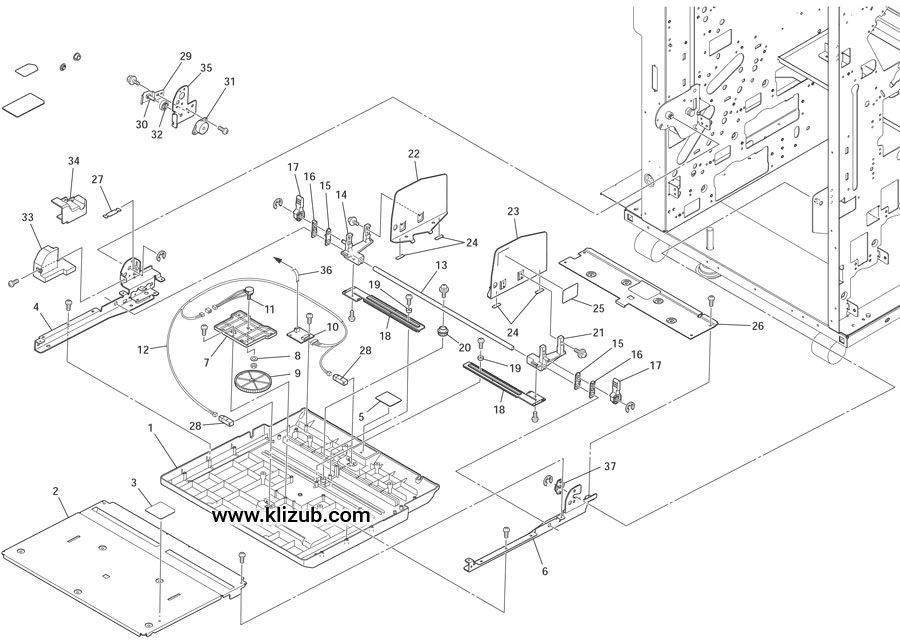

External Paper Feed Tray (2)

External Paper Feed Tray (2)

Ref. Партс код Наименование Примечание
  050-74003-089 Paper Feed Tray(1-30)
1 024-12101-300 *Feed Tray Cover
2 024-12102-102 *PFT Table L
3 024-12122-006 *Seal PFT Close
4 050-12023-008 *Frame R PFT
5 020-11520-106 *L.O. Sheet
6 050-12021-005 *Frame F PFT
7 024-12127-008 *Bracket Potentiometer
9 612-10039-006 *Gear m1x72x6
10 024-12602-202 *PF-Tray-PCB
11 021-51032-209 *Potentiometer Assy
12 024-12608-200 *Wire Harness PF Tray Inner
13 024-12105-004 *Shaft PF Tray
14 030-14124-003 *Slider R Paper Guide
15 030-14130-003 *Lock B Paper Guide
16 030-14129-005 *Lock A Paper Guide
17 024-12120-003 *Lever Fence Lock
18 024-12110-008 *Slide Rack P-F-T
19 030-14133-002 *Collar Slide Rack
20 612-12103-003 *Gear m1x16x3.2
21 030-14126-006 *Slider F Paper Guide
22 024-12107-104 *Fence Tray R
23 024-12106-108 *Fence Tray F
24 024-12123-002 *Fence Sheet
25 024-12121-000 *Seal Fence Set
26 050-12026-180 *PFT Table S
27 024-12125-005 *FCC Holder
28 444-33013-007 *Sensor PS124TD1
29 050-12072-084 *Cover Hinge
30 024-12109-000 *Shaft Hinge
31 610-10010-003 One-Way Hinge OWHF6-1NLS
32 612-10036-007 Gear m1x20x7
33 050-79734-006 COVER_FFC
34 050-79735-002 COVER_FFC_G
35 050-12071-088 Bracket One-way Hinge
36 050-12907-089 Wire Harness PF Tray
37 024-12119-005 Fixed Plate PFT

1st Paper Feed (1)

1st Paper Feed (1)

Ref. Партс код Наименование Примечание
  023-75072-157* Stripper Unit SU(15-37)
1 050-79738-001 BRACKET_EXFEED
2 050-79741-002 BRACKET_L_G_R
3 050-79739-008 BRACKET_L_G_F
4 050-12054-086 Cover Wire Harness PFT
5 050-12015-080 Stay PFT
6 050-12017-083 Side Frame PFT R
7 050-12057-085 Lever PFT Cover R
8 635-00004-004 Stepped screw F8x2.3
9 050-12058-087 Lever PFT Cover F
10 050-12016-087 Side Frame PFT F
11 050-12018-080 Stay Guide Plate
12 050-12009-188 Guide Plate Lower
13 050-12046-180 Guide Block Elevator
14 050-12074-087 Extension Sheet Guide Plate Lower
15 023-12429-201 *Spring Angle Adg.
16 023-12403-008 *Spring Tension Stripper
17 024-12401-100 *Base Stripper Unit
18 023-12431-001 *Guide Block Front Stripper Unit
19 023-12430-005 *Unfix Lever Stripper Unit
20 030-14521-002 *Fixed Block
21 023-12428-108 *Lock Lever Stripper Unit
22 018-31614-001 *Ground Spring Roller System
23 023-12412-007 *ARM Stripper Pressure
24 023-12402-109 *Bracket Stripper Base
25 023-12408-107 *Housing Stripper RZ-L
26 023-12404-101 *Shaft Stripper RZ-L
27 019-11832-000 *Cover F Stripper Pad
28 019-11831-100 *Base F Stripper Pad
29 019-11833-006 *Stripper Pad 70
30 635-00002-001 *Stepped Screw F6x2.2
31   *Washer WW6004
32 024-12403-005 *Cam Stripper
33 024-12405-008 *Stripper ADJ Arm
34 024-12406-004 *Plate Stripper Shaft Catch
35 023-12409-308 *Worm Gear Box Stripper Unit
36 023-12405-000 *ADJ Dial Stripper
37 050-79740-006 STUD_EXFEED

1st Paper Feed (2)

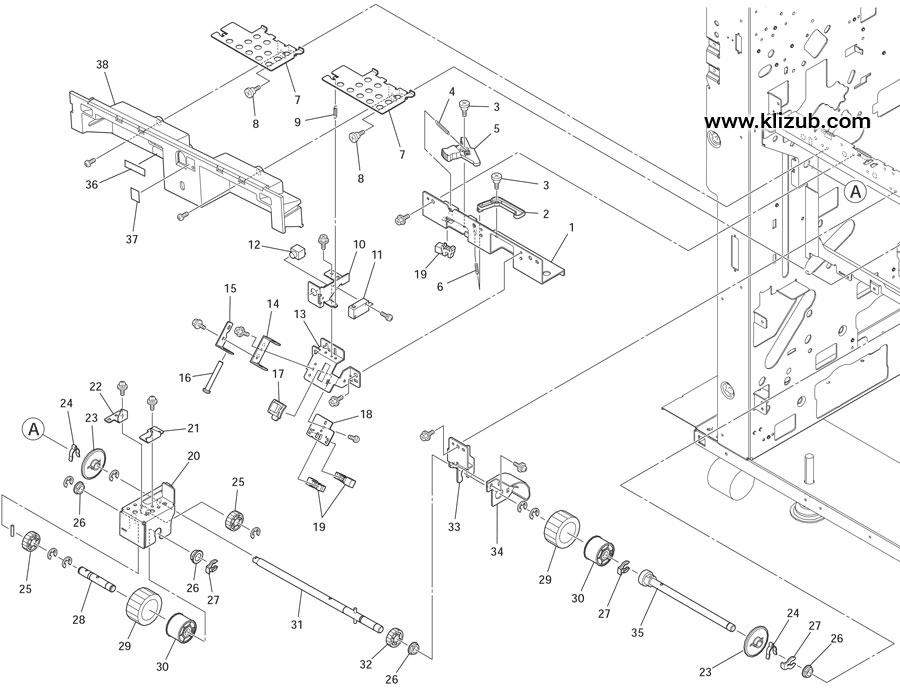

1st Paper Feed (2)

Ref. Партс код Наименование Примечание
  021-14301-100 Pick-up Roller(29,30)
1 050-12008-084 Stay 1st Paper Feed
2 050-12007-088 Arm P.-F.Pressure Adj.
3 635-00001-005 Stepped Screw F6x1.8
4 023-12313-106 Spring PF Pressure Adj. Lever
5 050-12006-081 P.-F. Pressure Adj. Lever
6 020-11811-208 Spring B P.-F.Pressure Adj.
7 050-12014-084 Upper Guard
8 635-00004-004 Stepped Screw F3x2.3
9 023-12344-001 Spring Elevator Safety SW
10 050-12012-081 E SW Plate
11 023-53023-007 ELEVATOR SAFETY SW
12 021-51030-109 Push Button SW Assy 2
13 050-12005-085 Bracket A Upper Limit Sensor
14 046-12301-005 Bracket B Upper Limit Sensor
15 046-12302-001 Support Plate Upper Limit Sensor
17 030-14347-002 Base Upper Limit Adj. Screw
18 023-12325-007 Bracket Upper Limit Sensor
19 444-30008-100 Sensor LG248NL1
20 050-12003-082 Frame Bracket Pick-Up
21 023-12308-005 Actuator Upper Limit
22 023-12334-006 Actuator Upper Limit
23 050-12049-082 Paper Guide Roller
24 000-06123-007 Stopper Paper Guide Roller
25 612-11300-107 Gear m0.8x34x8.5
26 607-16001-000 Metal F10x15/14x6
27 019-11812-106 Lock Ring
28 050-75006-057 Scraper Shaft Pick-Up SU
29 035-14303-001 *Rubber Pick-Up Roller
30 021-14302-107 *Core Pick-Up Roller
31 050-75005-050 Shaft Pick-Up Roller SU
32 612-10021-107 Gear m0.8x33x7.4
33 050-12002-086 Support Pick-Up Roller Shaft
34 050-12031-086 Cover Pick-Up Roller
35 050-75004-054 Extension Shaft Pick-Up Roller SU
36 550-21173-001 Seal: P.-Feed Pressure Pic
37 030-04034-006 Seal P.-F.-T Down
38 050-12013-088 Cover P.-Feed
39 050-12903-105 Wire Harness PFT 1
40 050-12906-007 Junction Harness Upper Limit Sensor

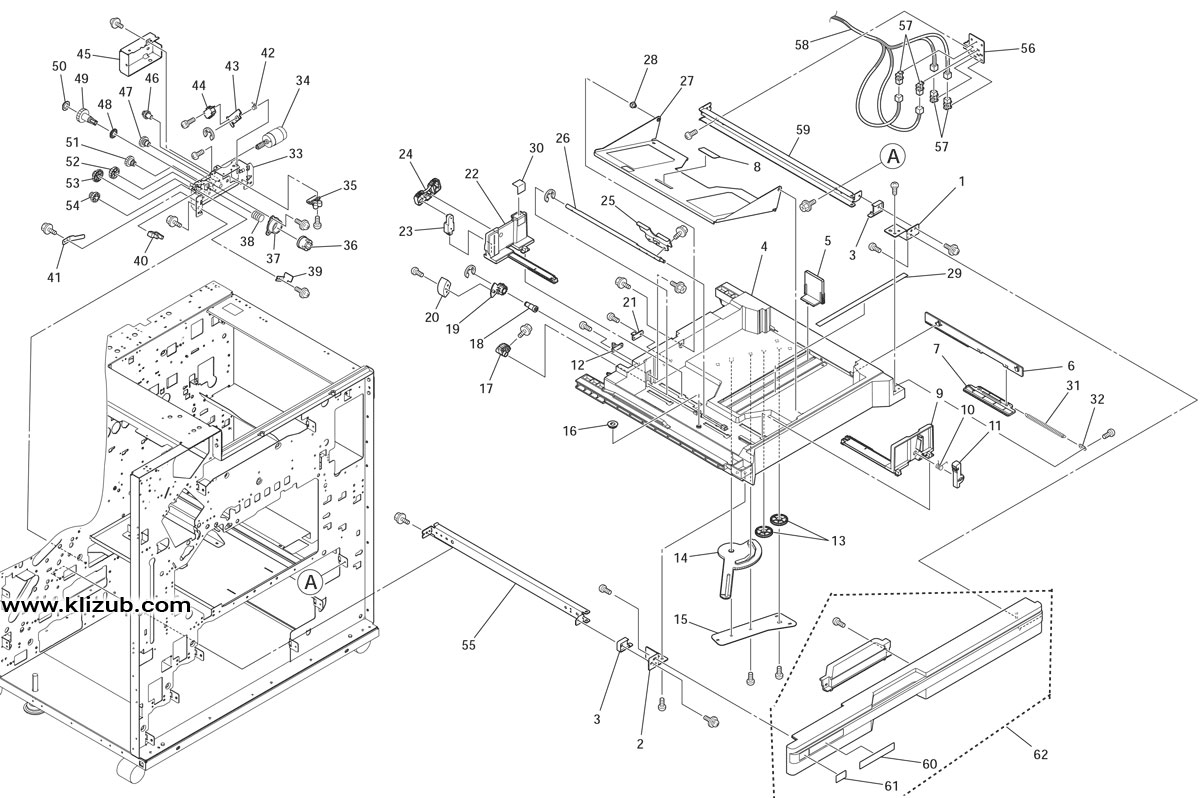

Lift Table Unit

Lift Table Unit

Ref. Партс код Наименование Примечание
  050-74024-086 Tray Unit(4-32)
  050-74023-080 Elevator Motor Assy Tray(33-54)
1 050-79714-005 BRACKET_TR_R
2 050-79713-009 BRACKET_TR_L
3 050-79715-001 STOPPER_TR1
4 050-65501-289 *Main Unit Tray
5 050-65508-089 *End Fence
6 050-65517-088 *Slider Paper Size Det
7 050-65539-081 *Rack Paper Size Det
8 030-21306-001 *L.O. Sheet
9 050-65506-183 *Guide Fence F
10 050-65511-080 *Spring Guide Fence F
11 050-65510-083 *Lever Guide Fence
12 660-05110-000 Joint M PC6901
13 612-10060-005 *Gear m1x36x4
14 050-65516-189 *Sector Gear Size Det.
15 050-65530-084 *Cover Size Det.
16 050-65534-080 *Center Gear
17 050-65524-084 *Drive Gear Bottom Plate
18 050-65531-080 *Mid Shaft Bottom Plate
19 050-65532-087 *Mid Gear Bottom Plate
20 050-65546-088 *Shield Plate Paper Volume
21 050-65536-082 interlock Pusher
22 050-65507-082 *Guide R
23 050-65513-287 *Lock Guide
24 050-65512-183 *Lever Guide R
25 050-65504-180 *Bracket Bottom Plate Tray
26 050-65505-080 *Shaft Bottom Plate
27 050-65503-184 *Bottom Plate Tray
28 050-65533-083 *Support shaft Bottom Plate
29 050-65545-081 *Seal Paper length
30 050-65544-085 *Seal Guide
31 050-65540-004 *Spring Size det.
32 050-65541-000 *Hook Plate Spring
33 050-65527-180 *Bracket Elevator Tray
34 023-74001-054 *Motor Assy (CWRS-445PA)
35 660-05111-006 Joint F PC6901
36 050-65564-086 *Coupling Elevator Motor
37 050-65557-187 *Case Coupling
38 050-65563-187 Joint Spring
39 050-65567-085 *Plate Sensor Lock
40 444-30010-007 *Sensor LG285D1
41 050-65537-089 *Earth Plate Tray
42 023-28403-105 *Spring Safety SW
43 024-28059-100 * BRACKET SAFETY SW
44 023-53026-006 *Drive Interlock Safety SW
45 050-65562-083 *Cover E Motor
46 612-80011-001 *Gear m0.8x23+m0.8x14
47 612-80012-008 *Gear m0.8x30+m0.8x14
49 050-65556-083 *Joint Gear Drive
50 050-65558-086 *Color E Motor
51 612-80037-000 *Gear m0.8x30+m0.8x14
52 612-80038-007 *Gear m0.8x34+m0.8x18
53 612-80013-004 *Gear m0.8x29+m1x14
54 612-80039-003 *Gear m1x30+m1x16
56 050-65515-085 Bracket Paper Size Det. Sensor
57 444-30008-100 Sensor LG248NL1
58 050-65916-080 Wire Harness Tray Paper Size Sensor
60 050-65543-0089 Seal Paper Size
61 050-65542-082 Seal Tray No.
62 050-79774-008 COVER_TR_SET

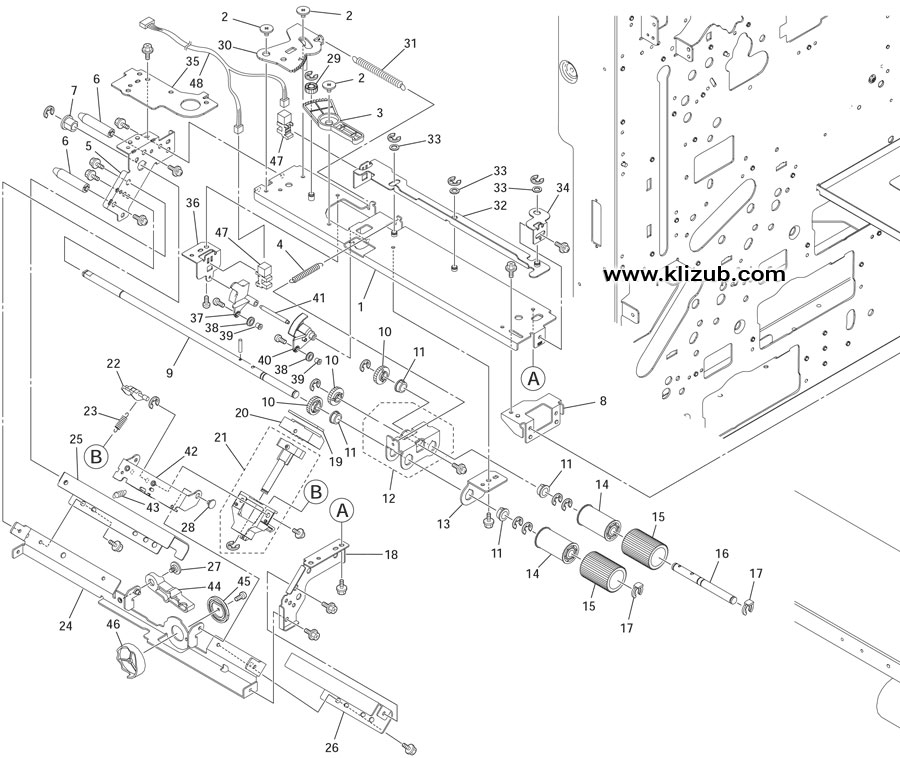

Internal Paper Feed Tray

Internal Paper Feed Tray

Ref. Партс код Наименование Примечание
  050-75017-008 *Actuator Paper Detection Assy (37-39)
  050-75016-001 *Actuator Upper Limit Assy (38-40)
  050-74025-082 Internal P.-F.-T. (1-48)
  050-65358-001 *Pick-up Roller Assy Internal(14,15)
1 050-65353-182 *Stay Internal P.-F.-T.
2 635-00004-004 *Stepped Screw F8x2.3
3 050-65418-080 *Plate Scraper Release
4 050-65416-087 *Spring Scraper Pressure
5 050-65357-080 *Sub Side Frame R Internal
6 050-65401-080 *Fixed Shaft Internal Paper Feed
7 60715013-005 *METAL F8 x12/10 x12
8 050-79724-000 *BRACKET_U_F
9 050-75014-009 *Shaft Pick-Up Assy
10 612-00008-102 *Gear m1x20x8
11 607-60002-006 *Housing 8
12 050-65431-183 *PU Arm Assy Internal
13 050-65340-080 *Bracket Paper Feed
14 050-65428-000 **Core Pick-Up Roller
15 050-65427-089 **Roller Pick-Up
16 050-75015-005 *Shaft Pick-Up Roller Assy
17 030-21203-105 *Lock Ring Paper Feed
18 050-65356-084 *Sub Side Frame F Internal
19 050-65407-088 *Stripper Pad
20 050-65348-081 *Holder Stripper
21 050-65426-180 *Stripper Assy Internal
22 050-65406-081 *Lever Stripper Pressure
23 050-65410-089 *Spring Stripper
24 050-65351-180 *Fixed Bracket Stripper
25 050-65423-083 *Stay R Guide Plate
26 050-65422-087 *Stay F Guide Plate
27 635-00004-004 *Stepped Screw F8x2.3
28 635-00002-001 *Stepped Screw F6x2.2
29 011-11514-000 *Center Gear
30 050-65414-084 *Plate Scraper Release
31 050-65415-080 *Spring Scraper Release
32 050-65432-082 *Lever Upper Limit Adj.
33 639-00001-004 *Washer 6x10x0.9
34 050-65347-085 *Plate Upper Limit Adj.
35 050-65403-082 *Fixed Bracket R Internal
36 050-65413-088 *Bracket Paper Detection
37 050-65342-082 **Actuator Paper Detection
38 050-65417-083 **Collar 10x5.1x3
38 050-65417-083 **Collar 10x5.1x3
39 050-65435-081 **Shaft Actuator
39 050-65435-081 **Shaft Actuator
40 050-65341-087 **Actuator Upper Limit
41 050-65412-081 *Shaft Upper Limit
42 050-65350-086 *Support Plate Stripper Base
43 050-65411-085 *Spring Stripper Angle Adj.
44 050-65419-086 *Lever Stripper Pressure Release
45 050-65421-080 *Dial Stripper Angle Adj.
46 050-65409-080 *Cam Stripper Angle Adj.
47 444-30008-100 *Sensor LG248NL1
48 050-65902-089 *Wire Harness Paper Sensor

Vertical Transfer Unit A

Vertical Transfer Unit A

Ref. Партс код Наименование Примечание
  050-74021-087 Vertical Transfer Unit A(1-20)
1 050-65399-085 *Shaft Jam Release
2 050-65201-080 *HOOK JAM RELEASE
3 050-65302-189 *Driven Assy Vertical Transfer Unit A
4 050-65398-186 *LEVER JAM RELEASE
5 050-65213-089 *Seal Jam Release
6 050-62180-082 * LEVER LOCK EJECTION
7 050-65388-180 *Bracket Vertical Transfer Unit A
8 050-65387-087 *Guide Jam Release Lever
9 050-65389-080 *Bracket Guide Support Shaft F
10 050-65390-088 *Bracket Guide Support Shaft R
11 444-33013-007 *Sensor PS124TD1
12 050-65112-282 *Roller 5 Vertical Transfer
13 601-10195-004 *Bearing DDLF-1910ZZR
14 050-65396-280 *Roller Cover Vertical Transfer Unit A
15 050-64328-087 *Support Plate Driven Roller
16 050-65206-082 *Vertical Transfer Driven Roller
17 050-55246-086 *Shaft Driven Roller 2
18 050-65214-085 *Spring Vertical Transfer Unit A
19 050-65377-189 *Base Bracket Driven Roller VTA
20 050-65901-082 *Wire Harness Vertical Transfer Unit

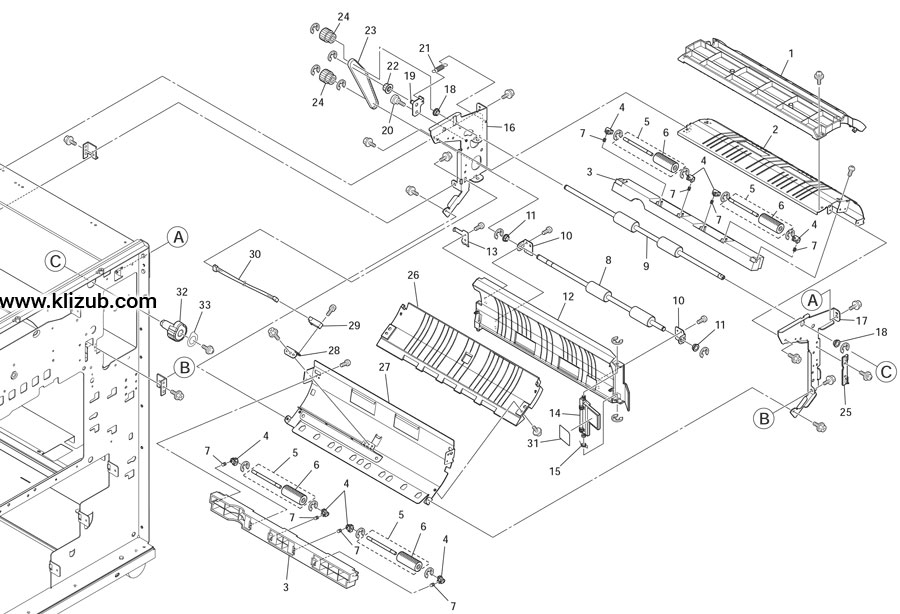

Vertical Transfer Unit B (1)

Vertical Transfer Unit B (1)

Ref. Партс код Наименование Примечание
  050-74026-089 Vertical Transfer Unit B(Fig.8 1-16, Fig.9 1-36)
  050-75013-002 *Vertical Transfer Unit B Jam Release Assy(1-16)
  050-75022-001 DIAL B JAM RELEASE Assy (17,18)
1 050-65373-183 **Tray 3 Transfer Guide Upper
2 050-64328-087 **Support Plate Driven Roller
3 050-65206-082 **Vertical Transfer Driven Roller
4 050-55246-086 **Shaft Driven Roller 2
5 050-64307-080 **Spring Transfer Switchback
6 050-65374-287 **Tray 3 Transfer Guide Lower
7 050-65203-083 **Shaft Jam Release
8 050-64344-082 ** BRACKET SPRING
9 050-65209-081 **Spring Release Lever
10 050-64342-187 * JAM RELEASE HOOK SWITCHBACK A
11 050-64343-086 ** JAM RELEASE LEVER SWITCHBACK A
12 050-65391-084 **Lower Cover Transfer Guide Tray3
13 050-65394-083 **Lower Movable Cover Transfer Guide Tray
14 050-65395-080 **Spring Lower Movable Cover
15 050-65322-082 **Support Shaft Transfer Guide
16 050-65212-007 **Seal Release Lever
17 050-12519-089 *DIAL JAM RELEASE
18 050-65211-000 *Jam Dial Release Seal Vertical Transfer Unit

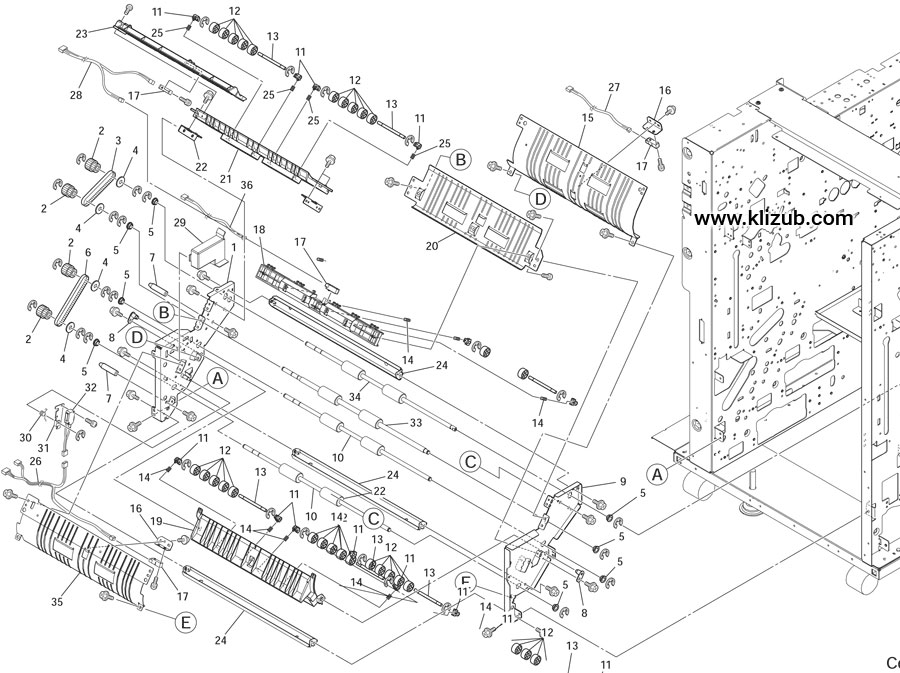

Vertical Transfer Unit B (2)

Vertical Transfer Unit B (2)

Ref. Партс код Наименование Примечание
  050-74026-089 Vertical Transfer Unit B(Fig.8 1-16, Fig.9 1-36)
1 050-65383-081 *Sub Side Frame R Vertical Transfer Uni
2 613-00003-000 *Pulley m1x22+30S2M
3 621-00008-004 *Belt 60-S2M-212
4 639-00007-002 * WASHER 8x22x1.5
5 607-15016-004 *Metal F8x11/10x5.5
6 621-00014-004 *Belt 60-S2M-260
7 050-65401-080 *Fixed Shaft Internal Paper Feed
8 050-65322-082 *Support Shaft Transfer Guide
9 050-65330-085 *Sub Side Frame F Vertical Transfer Uni
10 050-65108-005 *Roller 1 Vertical Transfer
11 050-64328-087 *Support Plate Driven Roller
12 050-65206-082 *Vertical Transfer Driven Roller
13 050-55246-086 *Shaft Driven Roller 2
14 050-64307-080 *Spring Transfer Switchback
15 050-65320-080 *Transfer Guide Assy Tray 2
16 050-65386-080 *Bracket Sensor 1
17 444-33013-007 *Sensor PS124TD1
18 050-64312-180 *Base Bracket Driven Roller
19 050-65314-284 *Transfer Guide Driven
20 050-65306-184 Junction Plate Left
21 050-65319-189 *Transfer Guide Driven
22 050-65365-083 *Transfer Guide
23 050-65318-085 *Transfer Guide Driven
24 050-65360-081 *Stay Vertical Transfer B
25 050-65311-005 *Spring 750 Transfer
26 050-65918-007 *Wire harness Internal Transfer Sensor E
27 050-65919-003 *Wire harness Internal Transfer Sensor C
28 050-65917-000 *Wire harness Internal Transfer Sensor A
29 050-65392-005 *Cover Wire Harness
30 050-65210-004 *Spring Safety SW
31 024-28059-100 * BRACKET SAFETY SW
32 023-53026-006 *Drive Interlock Safety SW
33 050-65110-000 *Roller 3 Vertical Transfer
34 050-65111-006 *Roller 4 Vertical Transfer
35 050-65304-009 *Transfer Guide Assy Tray 3
36 050-65920-206 Junction Wire Harness Internal Paper F

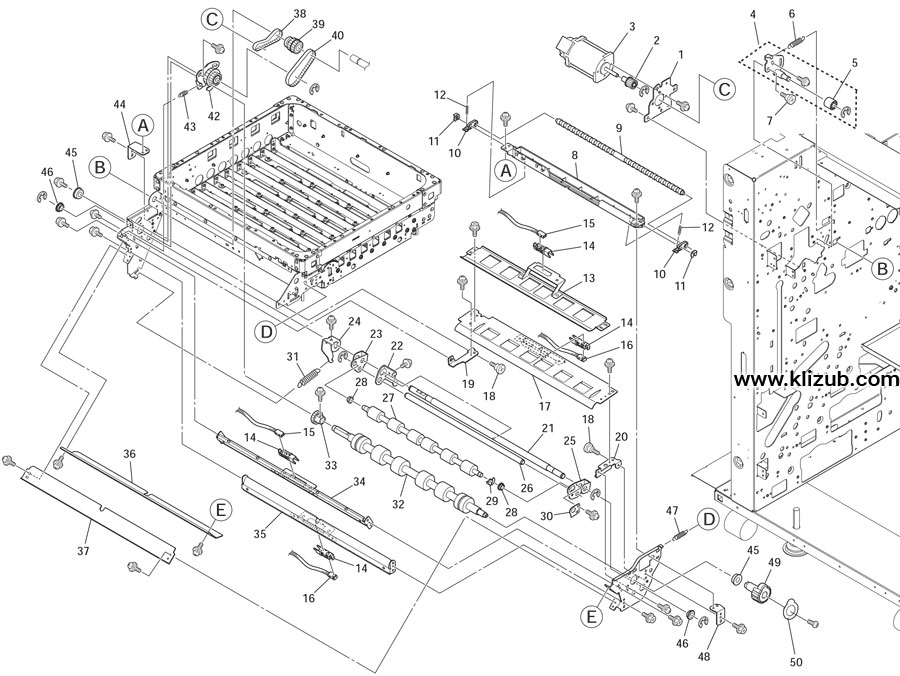

2nd Paper Feed

2nd Paper Feed

Ref. Партс код Наименование Примечание
  050-74004-085 Resist Motor Assy(1-3)
  050-74027-085 SS Roller Assy(8-12)
  050-74005-081 Plate Resist Guide(13-17)
  050-74006-088 Guide Roller Assy(21-30)
  050-74029-088 Timing Roller Assy(32-33)
  050-75018-004 DIAL A2 JAM RELEASE (49,50)
1 050-12533-081 *Bracket Resist motor
2 611-90032-000 *Pulley S2M-28
3 490-20007-108 *Motor TD3357-240
4 050-79686-001 RST_TENTIONER_1_ASSY
6 050-79690-009 SPRING_RST_1
7 635-00001-005 Stepped Screw F6x1.8
8 050-12524-007 *BU Guide Plate
9 050-12520-001 *SS Roller
10 050-12523-205 *SS Roller Arm
11 023-17197-007 *Lock Ring 4
12 050-12535-009 *Spring SS Roller
13 050-12516-187 *Guide Plate Upper
14 050-12528-088 *Cover Sensor
15 444-32007-003 *Sensor OF-11R1-N23(resive)
16 444-32006-007 *Sensor OF-11T-N23(Send)
17 050-12511-185 *Guide Plate Middle
18 635-17423-000 Stepped Screw F4x2.2
21 050-12502-003 *Support Shaft Guide Roller
22 050-12501-081 *Pressure Plate Guide Roller
23 050-12504-081 *Support Plate R Guide Roller
24 050-12508-087 *Bracket Guide Roller
25 050-12506-084 *Support Plate F Guide Roller
26 023-12513-202 *Pressure Shaft Guide Roller
27 023-12511-102 *Guide Roller
28 607-15016-004 *Metal F8x11/10x5.5
29 023-12519-006 *Lock Ring
30 050-12507-080 *Plate Guide Roller Adj.
31 050-79689-000 GUIDE_ROLL_SPRING
32 050-12510-189 *Timing Roller
33 612-10065-007 *Gear m1x26x6
36 050-12525-089 Re-Feed Roller
37 050-12544-083 Guide Plate Vertical Transfer
38 621-00012-001 Belt 70-S2M-160
39 050-79692-001 PULLY_S2M41_AS
40 621-00013-008 Belt 70-S2M-202
42 050-79687-008 RST_TENTIONER_2_ASSY
43 050-79688-004 SPRING_RST_2
45 050-79693-008 Bearing 1910ZZNR
46 607-16001-000 Metal F10x15/14x6:18x2
49 050-12519-089 *DIAL JAM RELEASE
50 050-12545-004 *Jam Dial Release Seal Timing Roller

CCD Unit (Side Registration Area)

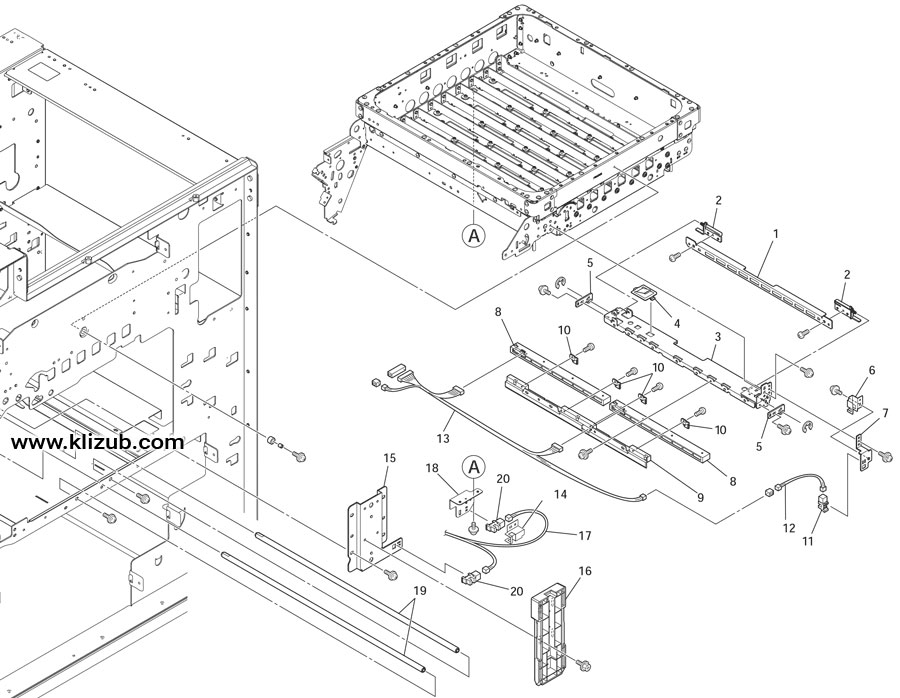

CCD Unit (Side Registration Area)

Ref. Партс код Наименование Примечание
  050-74008-080 PAPER POSITION DET. ASSY(1-13) CC9,7 Series
  050-75043-009 PAPER POSITION DET. ASSY A4 (1-13) CC3 Series
1 050-18009-082 *BLADE PAPER LIFT DET.
1 050-18009-082 *BLADE PAPER LIFT DET.
2 050-18010-080 *BASE PAPER LIFT DET.
2 050-18010-080 *BASE PAPER LIFT DET.
3 050-18006-288 *PAPER DET. FRAME
3 050-18006-288 *PAPER DET. FRAME
4 050-18007-080 *SPRING PAPER DET.
4 050-18007-080 *SPRING PAPER DET.
5 050-18004-080 *GATE ARM PAPER DET.
5 050-18004-080 *GATE ARM PAPER DET.
6 050-18014-183 *SENSOR COVER
6 050-18014-183 *SENSOR COVER
7 050-18005-184 *BRACKET PAPER LIFT DET. SENSOR
7 050-18005-184 *BRACKET PAPER LIFT DET. SENSOR
8 444-60004-001 *CIS U8R216-6494
8 444-60004-001 *CIS U8R216-6494
9 050-18001-189 *CIS BASE BRACKET
9 050-18001-189 *CIS BASE BRACKET
10 050-18002-185 *CIS FIX PLATE
10 050-18002-185 *CIS FIX PLATE
11 444-30019-004 *SENSOR LG248D2
11 444-30019-004 *SENSOR LG248D2
12 050-18904-081 *WIRE HARNESS PAPER LIFT DET. SENSOR
12 050-18904-081 *WIRE HARNESS PAPER LIFT DET. SENSOR
13 050-18901-287 *WIRE HARNESS PAPER POSITION DET.
13 050-18905-002 *WIRE HARNESS PAPER POSITION DET. A4
14 050-18014-183 SENSOR COVER
14 050-18014-183 SENSOR COVER
15 050-79720-005 BRACKET_BP_G_RAIL
15 050-79720-005 BRACKET_BP_G_RAIL
16 050-79723-004 GUIDE_RAIL_BP
16 050-79723-004 GUIDE_RAIL_BP
17 050-79881-009 Wire Harness BPELSNS
17 050-79881-009 Wire Harness BPELSNS
18 050-79677-002 BRACKET_BP_SENSOR
18 050-79677-002 BRACKET_BP_SENSOR
19 050-79722-008 BP_SHAFT
19 050-79722-008 BP_SHAFT
20 444-30008-100 SENSOR LG248NL1
20 444-30008-100 SENSOR LG248NL1

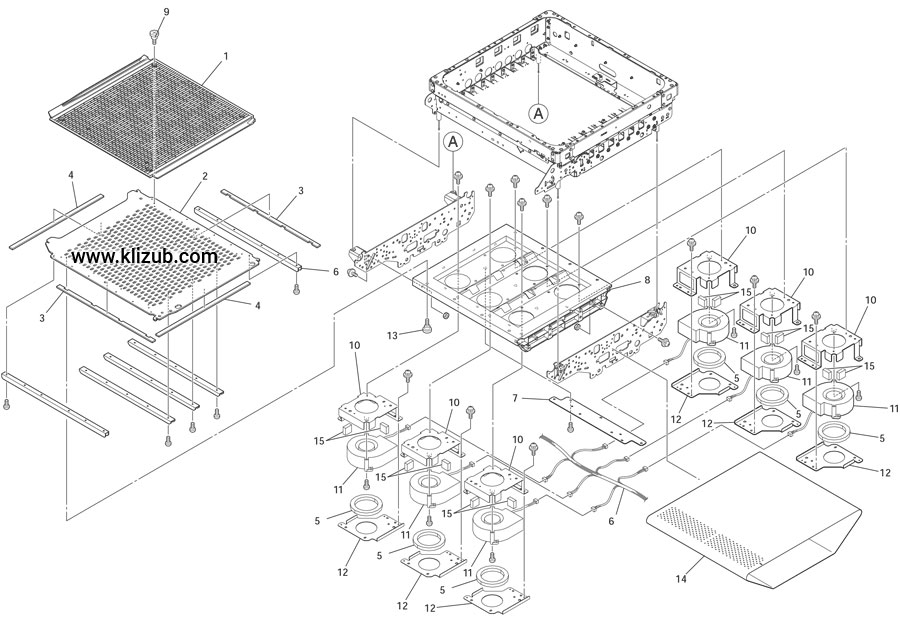

BP Transfer Area (1)

BP Transfer Area (1)

Ref. Партс код Наименование Примечание
  050-74007-688 BELT PLATEN UNIT(Fig12,Fig13 1-53)
1 050-19018-107 *PLATEN
2 050-19066-101 *PLATEN PLATE
3 050-19080-007 *BP AIR SEAL A
4 050-19081-003 *BP AIR SEAL B
5 050-19078-002 *FAN VIBRATION ABSORB SEAL
6 050-19901-108 *WIRE HARNESS BP INNER
7 050-19047-000 *BP WIRE HARNESS SET PLATE
8 050-19020-101 *BP FRAME
9 635-10002-107 *STEPPED SCREW F4x4.5
10 050-19103-007 *FAN COVER U
11 490-41014-007 *FAN E1033H24BYAZ-33
12 050-19104-003 *FAN COVER L
13 635-17523-102 *STEPPED SCREW F5x2
14 050-19001-280 *TRANSFER BELT
15 050-19105-000 *FAN GUIDE SEAL

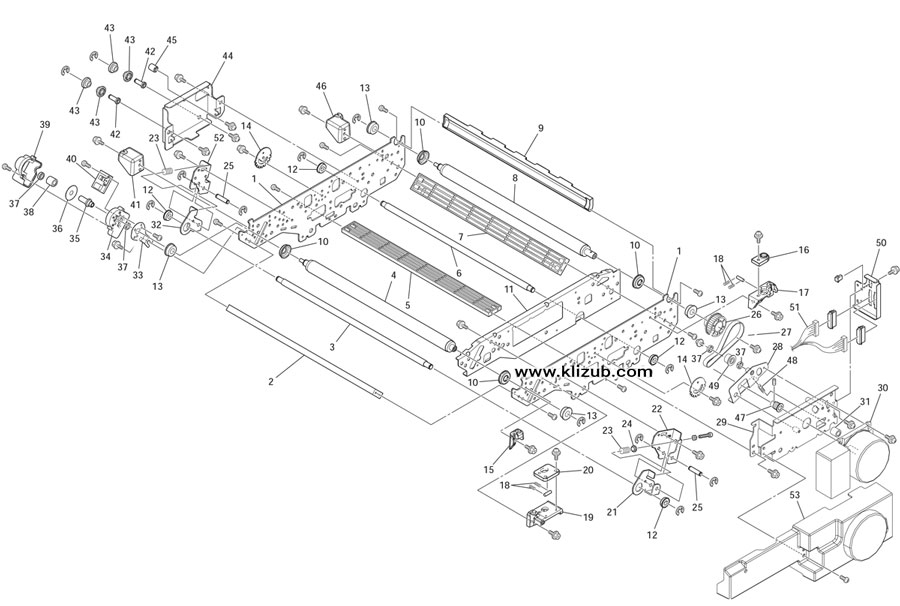

BP Transfer Area (2)

BP Transfer Area (2)

Ref. Партс код Наименование Примечание
  050-74007-289 BELT PLATEN UNIT(Fig12,Fig13 1-53)
  050-75009-005 * BP POSITION PLATE A Assy (15-17)
  050-75010-003 * BP POSITION PLATE B Assy (18-20)
  050-75008-009 **BP Motor Assy (30,31)
  050-75007-002 *Encoder Assy (33,34)
1 050-19021-108 * BP SIDE FRAME
2 050-19095-004 * STAY A BP FRAME
3 050-19006-001 * TENSION ROLLER
4 050-19002-006 * BELT DRIVEN ROLLER
5 050-19096-000 * STAY B BP FRAME
6 050-19005-005 * IDLER ROLLER
7 050-19097-007 * STAY C BP FRAME
8 050-19003-002 * BELT DRIVE ROLLER
9 050-19042-008 * BP PAPER GUIDE
10 050-19004-009 * BELT FLANGE
11 050-19076-000 * REINFORCE PLATE BP SIDE FRAME
12 600-08168-205 * BEARING SC890ZZNR
13 601-10195-004 * BEARING DDIF-191ZZR
14 050-19070-001 * ADJ. PLATE PLATEN
15 050-19022-007 ** WIRE HOOK A
16 050-19073-000 ** BP POSITION PLATE A
17 050-19023-003 ** WIRE HOOK B
18 050-19029-001 ** SPRING BP POSITION
19 050-19075-003 ** GUIDE PLATE BP POS. PLATE B
20 050-19074-007 ** BP POSITION PLATE B
21 050-19007-008 * F TENSION ROLLER PLATE A
22 050-19008-004 * F TENSION ROLLER PLATE B
23 050-19013-008 * TENSION SPRING
24 050-19012-001 * SPRING BASE
25 050-19009-000 * SHAFT TENSION ROLLER PLATE
26 611-90036-005 * PULLEY 59S2M10
27 621-00011-005 * BELT 80-S2M-230
28 050-19090-002 * TENSIONER PLATE
29 050-19086-005 * BRACKET BP MOTOR
30 490-20008-007 * MOTOR BH80BT50-01
31 611-90035-009 * Pulley 21S2M10
32 050-19010-009 * R TENSION ROLLER PLATE A
33 050-19099-000 ** SET SPRING ENCODER UNIT
34 050-19039-007 ** ENCODER CASE
35 050-19037-004 * ENCODER SHAFT
36 050-19036-008 * ENCODER 780
37 600-00005-005 * BEARING W678ZZ
38 050-19038-108 * ENCODER SLEEVE
39 050-19040-005 * ENCODER COVER
40 444-40001-006 *BP ENC-PCB
41 050-19025-006 * WIRE HOOK D
42 050-19056-009 * BP GUIDE SHAFT
43 050-19053-000 * BP GUIDE ROLLER
44 050-19055-002 * BP GUIDE PLATE
45 050-19057-005 * BP GUIDE SHAFT B
46 050-19024-000 * WIRE HOOK C
47 611-90035-009 * PULLEY 21S2M10
48 050-19094-008 * IDLER TENSION SPRING
49 050-19093-001 * IDLER PULLEY
50 050-19045-007 * BRACKET BP WIRE HARNESS
51 050-19901-108 * WIRE HARNESS BP INNER
52 050-19011-005 * R TENSION ROLLER PLATE B
53 050-19065-008 * BP FRONT COVER

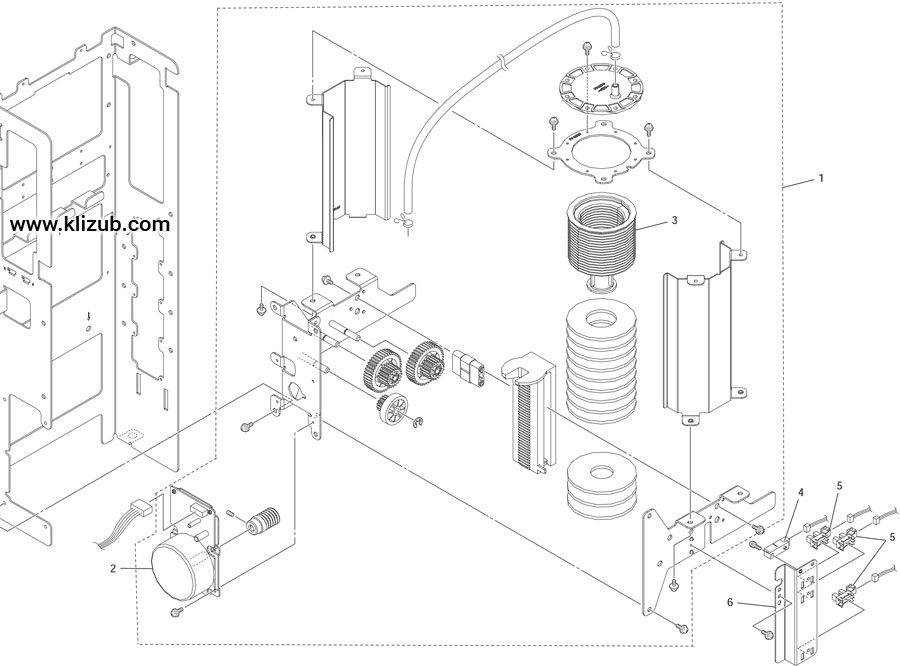

Paper Elevation Area

Paper Elevation Area

Ref. Партс код Наименование Примечание
  050-74016-083 PAPER ELEVATION UNIT(1-31)
  050-75020-009 *DIAL C2 JAM RELEASE Assy (32,33)
1 050-55206-084 * PAPER ELEVATION GUIDE U DRIVE
2 050-55203-085 * PAPER ELEVATION GUIDE U DRIVEN
3 050-55211-185 * DRIVEN ROLLER BASE P.- ELEVATIO
4 050-64328-087 *Support Plate Driven Roller
5 050-55252-086 * DRIVEN ROLLER 3
7 050-55249-085 * SPRING DRIVEN ROLLER
8 050-55121-089 * UPPER TRANSFER DRIVE ROLLER 1
9 050-55122-085 * UPPER TRANSFER DRIVE ROLLER 2
10 050-55216-080 * SHAFT SOCKET PLATE
11 607-15016-004 * METAL F8x11/10x5.5
12 050-55207-188 * PAPER ELEVATION GUIDE M DRIVE
13 050-55118-088 * GROUND PLATE 3
14 050-55208-087 * RELEASE LEVER PAPER ELEVATION
15 050-55209-083 * RELEASE LEVER SPRING PAPER ELE
16 050-55219-089 * SIDE FRAME R PAPER ELEVATION
17 050-55217-086 * SIDE FRAME F PAPER ELEVATION
18 607-15016-004 * METAL F8x11/10x5.5
19 050-55229-084 * PENSIONER BRACKET PAPER ELEVA
20 635-00001-005 * STEPPED SCREW F6x1.8
21 050-55228-088 * PENSIONER SPRING
22 611-90031-003 * IDLER PULLEY S2M-24
23 621-00009-000 * BELT 60-S2M-344
24 613-00003-000 *PULLEY M1x22+30S2M
25 050-55204-081 * RELEASE LEVER GUIDE U
26 050-55215-180 * PAPER ELEVATION GUIDE L DRIVE
27 050-55222-080 * PAPER ELEVATION GUIDE L DRIVEN
28 050-55214-087 * SENSOR BRACKET IN SENSOR
29 444-33013-007 * SENSOR PS124TD1
30 050-55903-087 * WIRE HARNESS PAPER ELEVATION
31 050-55403-084 * RELEASE LEVER SEAL PAPER ELEVA
32 050-12519-089 **DIAL JAM RELEASE
33 050-55401-006 **JAM RELEASE DIAL SEAL PAPER ELEVAT

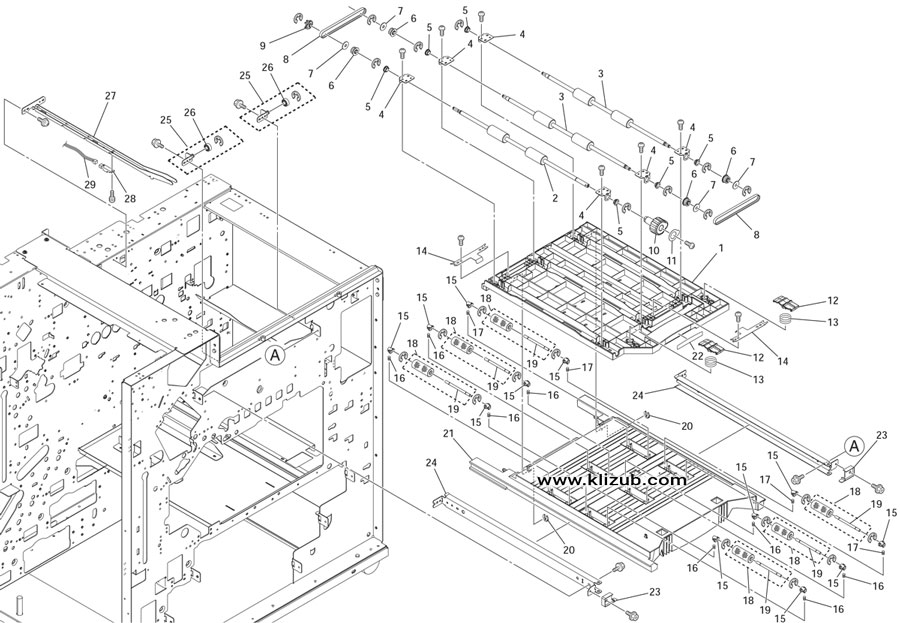

Duplex Transfer Area

Duplex Transfer Area

Ref. Партс код Наименование Примечание
  050-74015-087 UPPER TRANSFER UNIT(1-20)
  050-75012-005 *DIAL D2 JAM RELEASE (10,11)
  050-74028-081 * FLIPPER SENSOR ASSY(27-29)
1 050-55201-082 * UPPER TRANSFER GUIDE DRIVE
2 050-55123-189 * UPPER TRANSFER DIAL ROLLER
3 050-55124-185 * UPPER TRANSFER ROLLER
4 050-55256-080 * SHAFT SOCKET PLATE 2
5 600-50057-081 * Bearing FLAW678ZZA
6 611-90030-104 * PULLEY S3M-16
7 639-00008-009 * WASHER 6x19x1P
8 629-00007-006 * BELT 60-S3M-297
9 050-15112-184 * DRIVE COUPLER
10 050-12519-089 **DIAL JAM RELEASE
11 050-55402-088 ** JAM RELEASE DIAL SEAL UPPER TF
12 050-55241-084 * PRESS. PLATE UPPER TRANSFER
13 050-55242-080 * PRESS. ADJ. SPRING
14 050-55116-085 * GROUND PLATE 1
15 050-64328-087 *Support Plate Driven Roller
16 050-55249-085 * SPRING DRIVEN ROLLER
17 050-65311-080 * SPRING 750g
18 050-55252-086 * DRIVEN ROLLER 3
19   Included in No.18
20 030-21203-105 * CLIP
21 050-55202-186 * UPPER TRANSFER GUIDE DRIVEN
22 050-55244-083 * LEVER SEAL UPPER TRANSFER
23 050-79715-001 *STOPPER_TR1
24 050-65580-081 * TRAY RAIL 2
25 050-79719-007 *LOCK_ASSY
27 050-55205-088 ** BRACKET FLIPPER SENSOR
28 444-33012-000 ** SENSOR GP2A210LCSJF
29 050-55904-083 ** WIRE HARNESS UPPER TRANSFER

Switchback Unit B

Switchback Unit B

Ref. Партс код Наименование Примечание
  050-74018-086 SWITCHBACK UNIT B(1-19)
1 050-64306-086 * SWITCHBACK GUIDE DRIVE
2 611-90028-002 * PULLEY S3M-18
3 607-15016-004 * METAL F8x11/10x5.5
4 050-64107-080 * UPPER TRANSFER DRIVE ROLLER 6
5 050-64362-080 * HOOK CATCH SWITCHBACK B
6 050-64323-085 * SENSOR BRACKET OUT SENSOR
7 444-33013-007 * SENSOR PS124TD1
8 050-64361-084 * HINGE SWITCHBACK B
9 050-64306-180 * SWITCHBACK GUIDE DRIVEN
10 050-55252-086 * DRIVEN ROLLER 3
12 050-64328-087 *Support Plate Driven Roller
13 050-55249-085 * SPRING DRIVEN ROLLER
14 050-64320-086 * RELEASE LEVER SWITCHBACK B
15 050-64364-083 * RELEASE LEVER SEAL SWITCHBACK
16 050-64319-088 * RELEASE LEVER SPRING SWITCHBA
17 050-64903-081 * WIRE HARNESS SWITCHBACK B
18 050-64371-004 Socket Stopper Plate R Switchback B
19 050-64370-008 Socket Stopper Plate F Switchback B

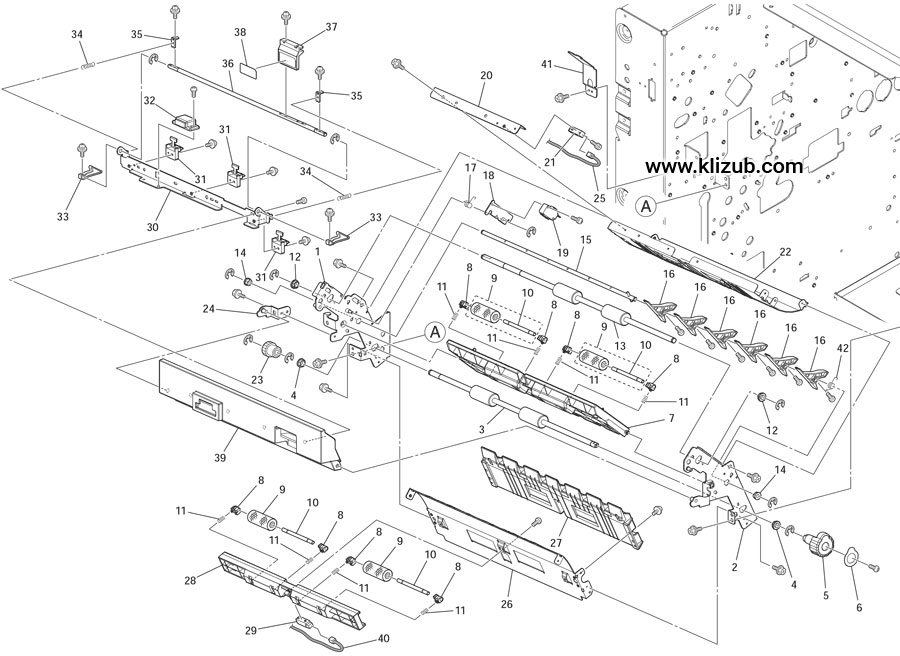

Switchback Unit A

Switchback Unit A

Ref. Партс код Наименование Примечание
  050-74017-080 SWITCHBACK UNIT A(1-42)
  050-75019-000 *DIAL G JAM RELEASE Assy (5,6)
  050-75002-000 * Shaft Gate Assy (15,16)
  050-75001-004 * Switch Back Cover Assy (30-39)
1 050-64326-084 * SIDE FRAME R SWITCHBACK A
2 050-64332-181 * SIDE FRAME F SWITCHBACK A
3 050-64106-181 * RE-FEED DRIVE ROLLER
4 607-15016-004 * METAL F8x11/10x5.5
5 050-12519-089 *DIAL JAM RELEASE
6 050-64363-087 * JAM RELEASE DIAL SEAL SB A
7 050-64304-188 * SWITCHBACK GUIDE DRIVEN
8 050-64328-087 *Support Plate Driven Roller
9 050-55252-086 * DRIVEN ROLLER 3
11 050-55249-085 * SPRING DRIVEN ROLLER
12 607-15016-004 * METAL F8x11/10x5.5
13 050-64105-088 * SWITCHBACK DRIVEN ROLLER
14 607-13000-402 * METAL F6x10/9x6:12x1.5
15 050-64346-085 ** SHAFT GATE
16 050-64301-081 ** GATE
17 023-28403-105 * SAFETY SW SPRING
18 024-28059-100 * BRACKET SAFETY SW
19 023-53026-006 * SAFETY SW
20 050-64337-086 * BRACKET SB SENSOR
21 444-33013-007 * SENSOR PS124TD1
22 050-64303-084 * SWITCHBACK GUIDE DRIVE
23 612-00016-008 * GEAR m1x24x8
24 050-64334-184 * FULCRUM SHAFT COVER
25 050-64901-100 * WIRE HARNESS 1 SWITCHBACK A
26 050-64302-185 * RE-FEED GUIDE DRIVEN
27 050-64321-180 * RE-FEED GUIDE U DRIVE
28 050-64312-180 *Base Bracket Driven Roller
29 444-33013-007 * SENSOR PS124TD1
30 050-64345-089 ** BRACKET JAM RELEASE SHAFT
31 050-64331-088 ** ASSIST GUIDE
32 660-00002-004 ** MAGNET CATCH SM-50P
33 050-64342-187 ** JAM RELEASE HOOK SWITCHBACK A
34 050-64329-083 ** RELEASE LEVER SPRING SWITCHBAC
35 050-64344-082 ** BRACKET SPRING
36 050-64341-083 ** RELEASE LEVER SHAFT SWITCHBACK
37 050-64343-086 ** JAM RELEASE LEVER SWITCHBACK A
38 050-64365-080 ** RELEASE LEVER SEAL SWITCHBACK
39 050-64316-089 ** COVER SWITCHBACK
40 050-64902-000 * WIRE HARNESS 2 SWITCHBACK A
41 050-79725-007 *COVER_CABLE
42 050-64313-004 *GATE SPRING

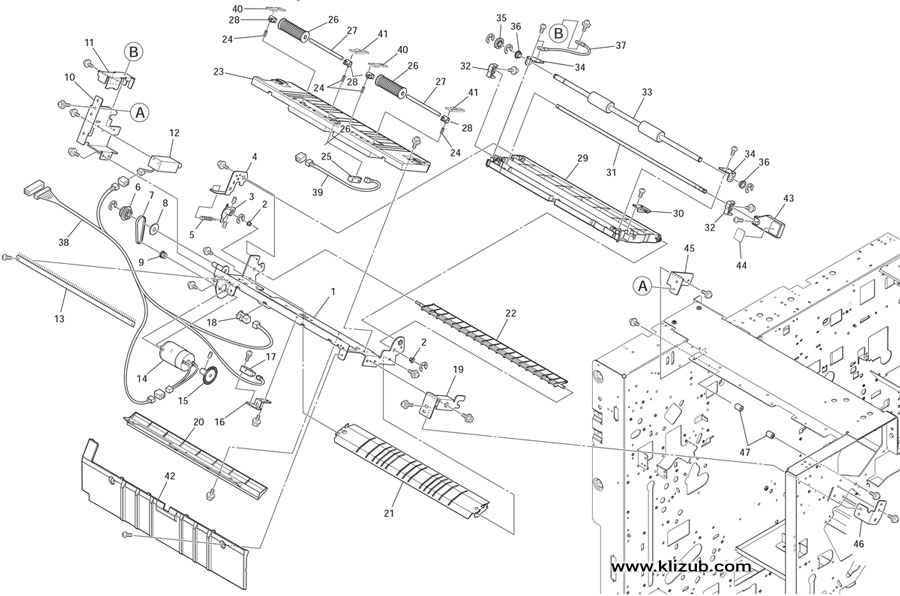

Face-Down Ejection Unit (1)

Face-Down Ejection Unit (1)

Ref. Партс код Наименование Примечание
  050-74020-080 FD PAPER EJECTION UNIT(1-41)
1 050-62176-085 * FRAME PAPER EJECTION
2 607-11003-005 * METAL F4x6/5.6x5.9
3 050-62058-180 * LINK PLATE FLIPPER SOLENOID
4 050-62175-089 * FULCRUM PLATE EJECTION GUIDE
5 050-62042-089 * SOLENOID SPRING
6 613-10006-008 * PULLEY m1x20+32S2M
7 621-00010-009 * BELT 40-S2M-132
8 639-00007-002 * WASHER 8x22x1.5
10 050-62174-082 * FULCRUM BASE PLATE R
11 050-62052-084 * SOLENOID COVER
12 490-50011-100 * SOLENOID TDS-09AL-508
13 050-62060-087 * DE-ELECTRICITY BRUSH 314
14 023-74002-050 * MOTOR 555
15 023-21342-305 * SLIT
16 050-62178-088 *BRACKET FULL SENSOR
17 444-33010-008 * SENSOR PS119ED1
18 444-30008-100 *SENSOR LG248NL1
19 050-62173-086 * FULCRUM BASE PLATE F
20 050-62027-080 * SWITCHBACK GUIDE U
21 050-62028-086 * SWITCHBACK GUIDE L
22 050-62015-286 *FLIPPER FD SB
23 050-62013-283 * EJECTION GUIDE L
24 050-62041-082 * PRESS SPRING EJECTION
25 444-33013-007 * SENSOR PS124TD1
26 050-62068-088 * EJECTION DRIVEN ROLLER 2
28 050-64328-087 *Support Plate Driven Roller
29 050-62012-082 * EJECTION GUIDE U
30 050-62180-082 * LEVER LOCK EJECTION
31 050-62179-084 * JAM RELEASE SHAFT EJECTION
32 050-65201-080 *HOOK JAM RELEASE
33 050-62009-081 * DRIVE ROLLER EJECTION
34 050-55216-080 * SHAFT SOCKET PLATE
35 612-10066-003 * GEAR m1x20x4
36 607-15016-004 * METAL F8x11/10x5.5
37 050-62904-080 * GROUND WIRE FD EJECTION
38 050-62901-081 * WIRE HARNESS FD EJECTION
39 050-62905-087 * WIRE HARNESS FD EJECT. SENSOF
40 050-62382-009 Socket Stopper Plate R FD Eject
41 050-62381-002 Socket Stopper Plate F FD Eject
42 050-62036-186 END WALL
43 050-65398-186 LEVER JAM RELEASE
44 050-62064-007 Seal JAM RELEASE LEVER
45 050-79716-008 BRACKET_EXIT_R
46 050-79717-004 BRACKET_EXIT_F
47 050-79718-000 STUD_EXIT

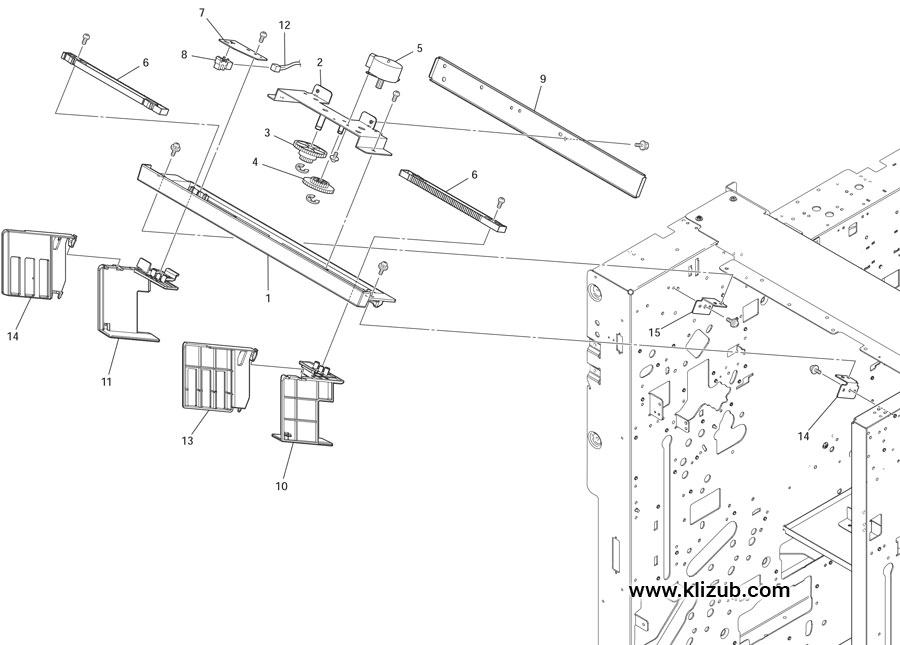

Face-Down Ejection Unit (2)

Face-Down Ejection Unit (2)

Ref. Партс код Наименование Примечание
  050-74019-082 FD FENCE UNIT(1-12)
1 050-62001-080 *FENCE UNIT BASE
2 050-62021-081 *BRACKET FENCE MOTOR
3 612-10067-000 *GEAR m1x48+m1x18
4 612-10068-006 *GEAR m0.5x90+m1x26
5 490-33015-100 *MOTOR PM42L-048-ZVS6
6 042-30067-002 *RACK
7 050-62035-082 *BRACKET FENCE HP SENSOR
8 444-30008-100 *SENSOR LG248NL1
9 050-62057-086 *FENCE UNIT COVER PLATE
10 050-62002-087 *FD FENCE F
11 050-62003-083 *FD FENCE R
12 050-62902-088 *WIRE HARNESS FD FENCE
13 050-62061-008 Sub FENCE F FD
14 050-62062-004 Sub FENCE R FD
15 050-62050-081 BRACKET F FD FENCE
16 050-62051-088 BRACKET R FD FENCE

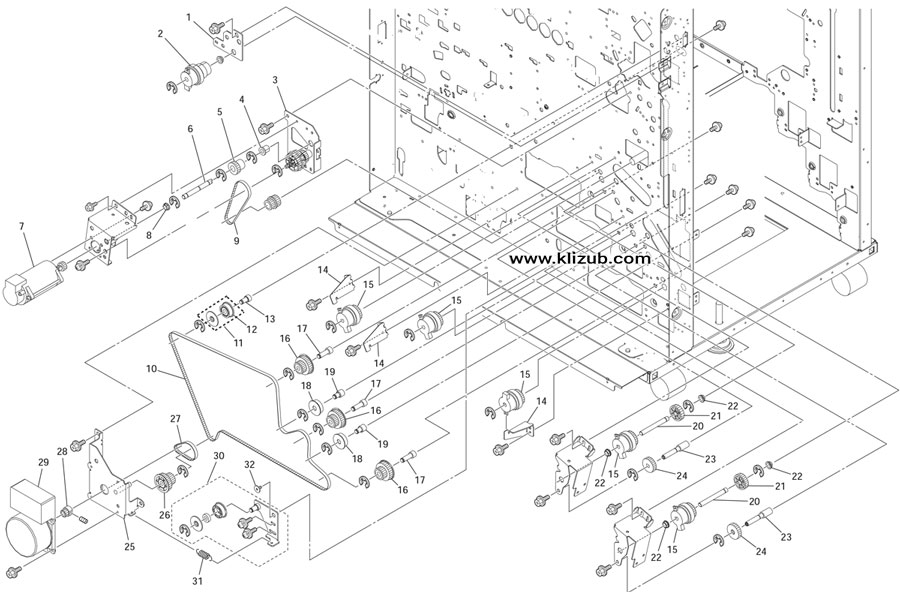

Drive Area (1)

Drive Area (1)

Ref. Партс код Наименование Примечание
  050-74014-080 INTERNAL PAPER FEED MOTOR(25-29)
1 607-15016-004 METAL F8x11/10x5.5
2 490-51013-106 CLUTCH HI-MIC5-11
3 050-79750-001 PULELY_25_30_ASSY
4 607-15001-503 METAL F8x12/10.8x14
5 613-00003-000 PULLEY M1x22+30S2M
6 050-79742-009 SHAFT_PU_GR
7 050-74013-084 EXTERNAL PAPER FEED MOTOR
8 607-15016-004 METAL F8x11/10x5.5
9 621-00015-000 BELT 60-S2M-266
10 621-00017-003 BELT 60-S3M-1119
11 050-79752-004 PULLEY_S3M-27_SET
13 050-79756-000 SHAFT_IDL_2
14 050-79753-000 STOPPER_CLT
15 020-65009-300 PAPER FEED CLUTCH
16 050-79745-008 PULLEY_23_38_AS
17 050-79746-004 SHART_PL
18 050-79748-007 IDL_26_AS
19 050-79747-000 SHAFT_IDL
20 050-79749-003 SHAFT_CLT
21 050-79743-005 GEAR_30_8
22 607-15013-005 METAL F8x12/10x12:16x2
23 050-79744-001 SHAFT_GR
24 612-00014-005 GEAR m1x30x8
25 050-15201-080 *BRACKET INTERNAL P. FEED MOTOR
26 611-90024-007 *PULLEY P24/36-S3M
27 620-00019-009 *BELT 60-S3M-141
28 611-90027-103 *PULLEY S3M-15
29 490-20010-001 *MOTOR DR-7638-075
30 050-79755-003 TENSIONER_ASSY
31 050-79754-007 SPRING_BLT
32 635-00004-004 STEPPED SCREW F8x2.3

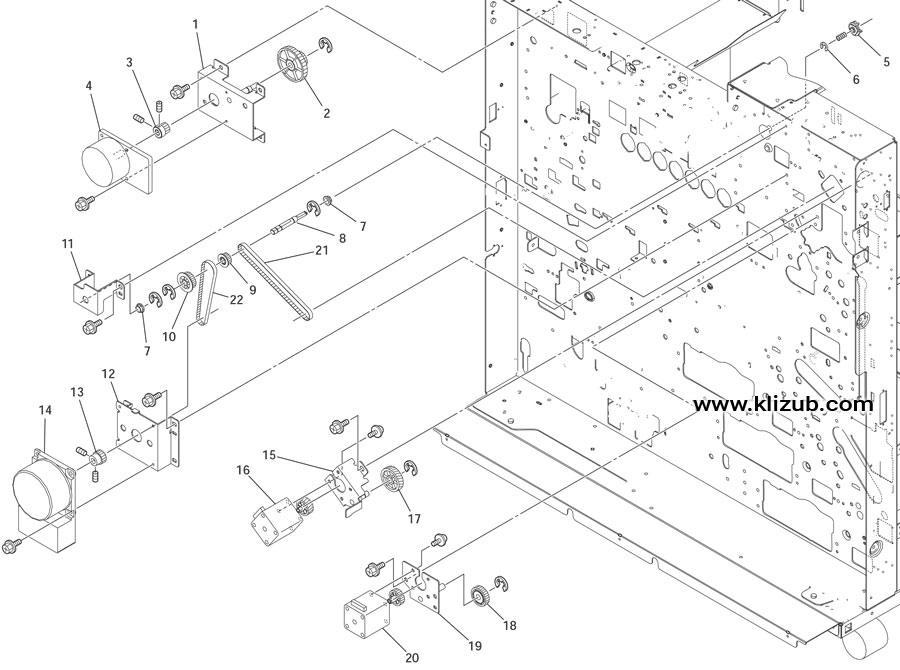

Drive Area (2)

Drive Area (2)

Ref. Партс код Наименование Примечание
  050-74010-085 Upper Transfer Motor 1 Assy(1-4)
  050-74034-081 Drive Joint Assy Upper Transfer(5-9)
  050-74009-087 Upper Transfer Motor 2 Assy(12-14)
  050-74012-088 Switchback Motor Assy(15-17)
  050-74011-081 Re-Feed Motor Assy(18-20)
1 050-15120-080 *Bracket Upper Transfer Motor 1
2 612-80028-001 *Gear m1x54+m1x22
3 612-00011-006 *Gear m1x15x8
4 490-20009-003 *Motor DR-6236-228
5 050-15112-184 *Drive Joint
6 050-15143-080 *Drive Joint Spring
7 607-15016-004 *Metal F8x11/10x5.5
8 050-15111-188 *Shaft Drive Joint
9 611-90028-002 *Pulley S3M-18
10 611-90023-000 Pulley S2M-39
11 050-79751-008 Bracket DR
12 050-15110-084 *Bracket Upper Transfer Motor 2
13 611-90026-107 *Pulley S2M-25
14 490-20008-007 *Motor BH80BT50-01
15 050-15106-087 *Bracket Switchback Motor
16 490-31015-005 *Motor KH42KM2R103B
17 612-30003-008 *Helical Gear m1x34x9
18 612-00014-005 *Gear m1x30x8
19 050-15140-080 *Bracket Re-Feed Motor
20 490-31014-009 *Motor KH42KM2R103A
21 621-00014-004 Belt 60-S2M-260
22 621-00016-007 Belt 60-S3M-330

Lift Table Unit

Lift Table Unit (1)

Ref. Партс код Наименование Примечание
1 050-79658-008 STAR_WHEEL_ASSY
2 050-79672-000 SHAFT_HOLDER
3 050-79657-001 SW_SPRING
4 050-79674-003 BP_EL_MOTOR_ASSY
5 050-79676-006 DRIVE_PLATE_COVER
6 050-79673-007 WIRE_DRIVE_ASSY
7 050-79880-002 WIREHARNESS BPELMTR2
8 050-79861-008 WIRE HARNESS RFDRV

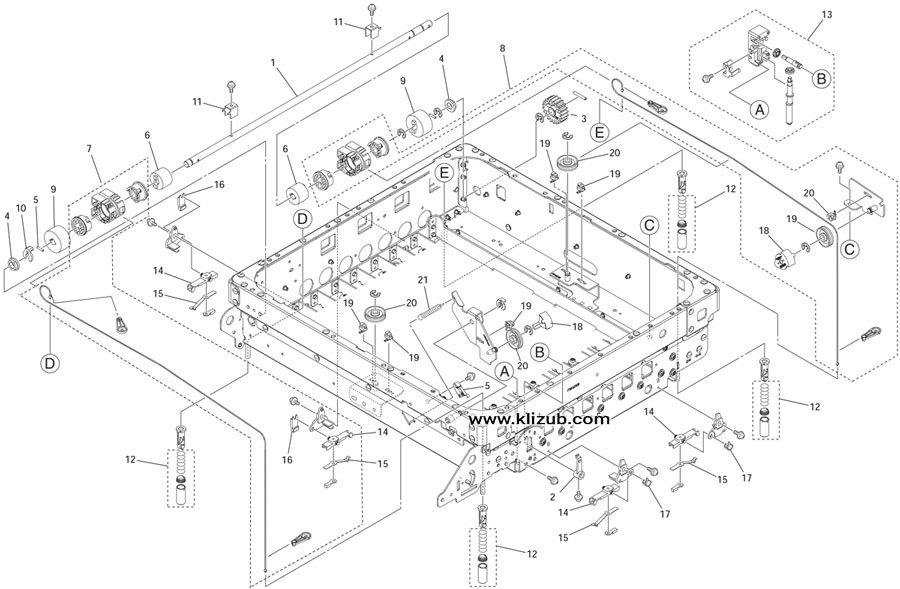

Lift Table Unit (2)

Lift Table Unit (2)

Ref. Партс код Наименование Примечание
1 050-79710-000 ROLL_UP_SHAHUT
2 050-79681-000 SCALE
3 050-79675-000 GEAR_m1.5z20_SET
4 607-15000-000 Metal F8x13/12x5:16x2
5 050-79883-001 Micro SW WIRE SLACK
6 050-79694-004 T_LIMITTER_4000
7 050-79699-006 WIRE_ASSY_L
8 050-79700-004 WIRE_ASSY_R
9 050-79708-005 T_LIMITTER_6000
10 030-21203-105 Lock Ring Roller
11 050-79709-001 LIMITER_STOPPER
12 050-79656-005 GAP_ADJUSTER_SET
13 050-79682-006 BP_ADJUST_ASSY
14 050-79685-005 CNT_HOLDER
15 050-79757-006 CONTACT_SPRING
16 050-79684-009 HOLD_CLIP
17 050-79643-000 3ERING
18 050-79698-000 CORNER_GUIDE
19 050-79696-007 WIRE_GUIDE
20 050-79711-006 GUIDE_PULLY
21 050-79697-003 SPRING

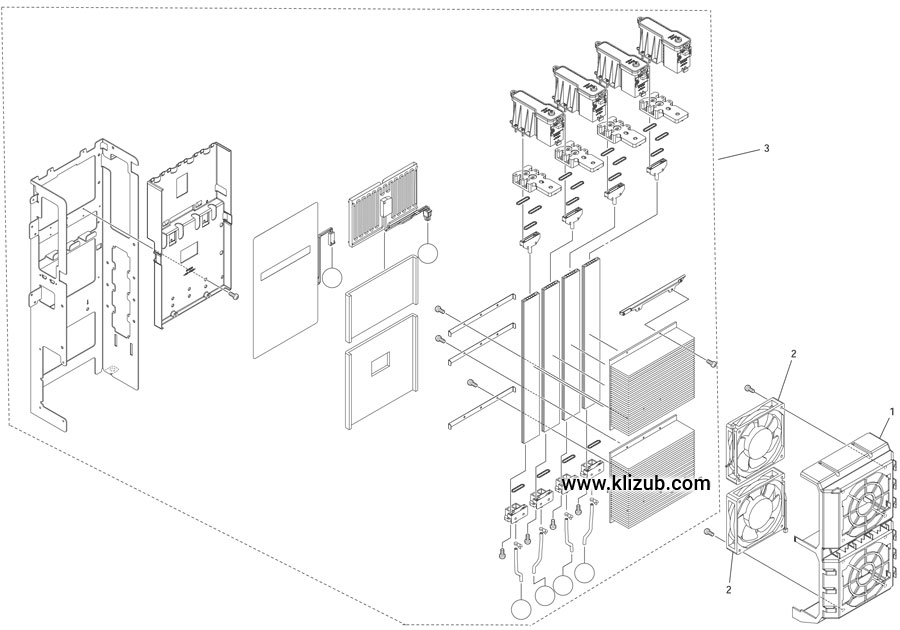

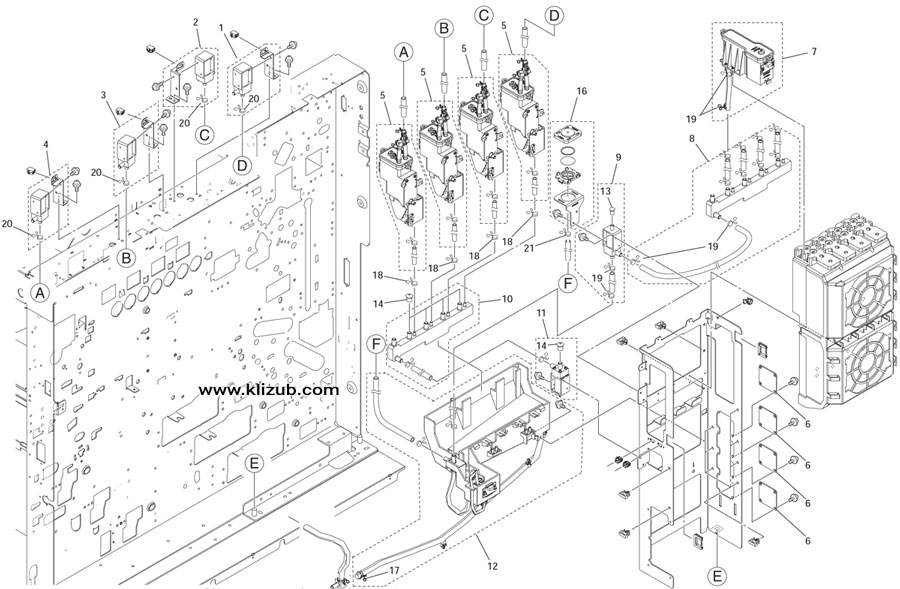

Ink Bottle Area (1)

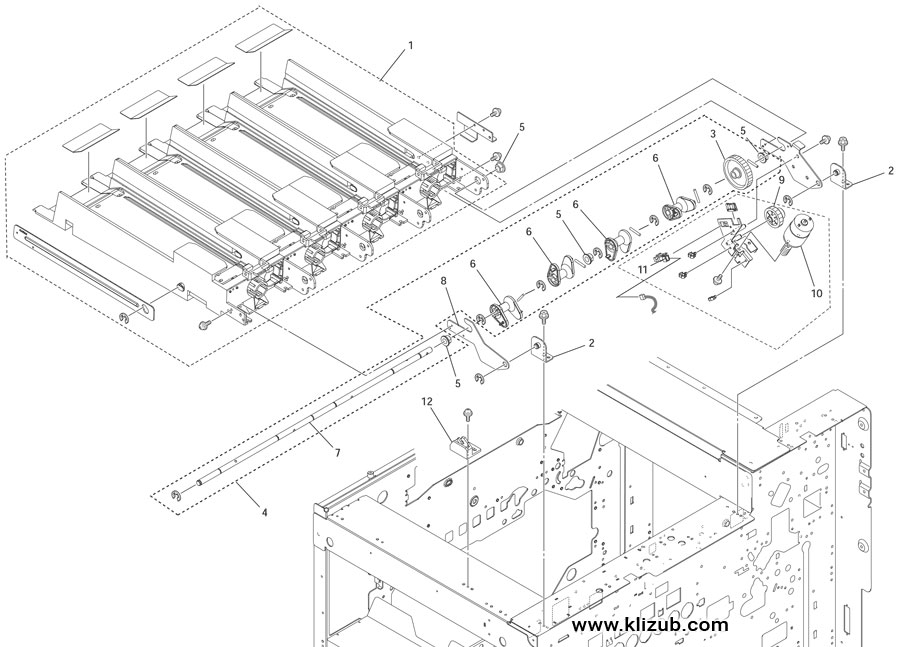

Ink Bottle Area (1)

Ref. Партс код Наименование Примечание
  050-79630-006 CA_HOLDER_UNIT_SET(Fig24,25)
  050-79636-004 *CA_MCTOR_ASSY(9-11)
1 050-79624-006 *CA_HOLDER_ASSY
2 050-79634-001 *FRAME_BRACKET_AS
3 050-79637-000 *GEAR_Z50
4 050-79635-008 *CA_CAM_SET (5-7)
8 050-79633-005 *ARM_PLAET
9 050-79638-007 **GEAR_Z15_Z38
10 023-74001-003 **Motor Assy(CWRS-445PA)
11 444-30008-100 **Sensor LG248NL1
12 050-79632-009 *ARM_STOPPER

Drive Area (2)

Ink Bottle Area (2)

Ref. Партс код Наименование Примечание
  050-79630-006 CA_HOLDER_UNIT_SET(Fig24,25)
1 050-79626-009 *CA_JOINT_K_SET
2 050-79627-005 *CA_JOINT_C_SET
3 050-79628-001 *CA_JOINT_M_SET
4 050-79629-008 *CA_JOINT_Y_SET
5 050-79631-002 *JOINT_SPRING
6 050-79639-003 *CA_PAN_SET
7 050-74031-180 *RFID PCB UNIT
8 444-30008-100 *SENSOR LG248NL1
9 050-79860-001 *WIRE HARNESS INK HOLD UNIT
10 050-79625-002 *SPRNG_SET

Ink Flow Unit Tower (1)

Ink Flow Unit Tower (1)

Ref. Партс код Наименование Примечание
  050-79598-005 Ink Flow Tower Unit(Fig26 5-19,Fig.27 1-3)
1 050-79615-007 SOLENOID_WR2_B_SET
2 050-79616-003 SOLENOID_WR2_C_SET
3 050-79617-000 SOLENOID_WR2_M_SET
4 050-79618-006 SOLENOID_WR2_Y_SET
5 050-79601-006 *NEGA..-PRESS. TANK SET
7 050-79600-000 *PRESS. TANK ASSY SET
8 050-79613-004 *PRESS. AIR TANK SET
9 050-79610-005 *SOLENOID PRESS. SET
10 050-79614-000 *NEGA.-PRESS. AIR TANK SET
11 050-79611-001 *SOLENOID NEGA.-PRESS. SET
12 050-79603-009 *OF_PAN_ASSY
13 033-19381-006 *SOLENOID CAP
14 050-79619-002 *SOLENOID CAP_2
15 050-79607-004 *HEAT SINK L COVER
16 050-79612-008 *PRESS. FILTER SET
17 050-79622-003 *T_CLIP7
18 050-79623-000 *T_CLIP3
19 050-79620-000 *T_CLIP5
20 050-79621-007 T_CLIP5_SFT

Ink Flow Unit Tower (2)

Ink Flow Unit Tower (2)

Ref. Партс код Наименование Примечание
  050-79598-005 Ink Flow Tower Unit(Fig26 5-19,Fig.27)
1 050-79606-008 *HEAT SINK T COVER
2 050-79608-000 *IL_FAN
3 050-79599-001 *HEAT_SINK_SET

Bellows

Bellows

Ref. Партс код Наименование Примечание
1 050-79602-002 BELLOWS_ASSY_SET(1-2)
2 050-79605-001 *BELLOWS_MOTOR
3 050-79604-005 *REG_BELLOWS
4 444-33010-008 SENSOR PS119ED1
5 444-30008-100 SENSOR LG248NL1
6 050-79609-007 REG_SEN_BRACKET

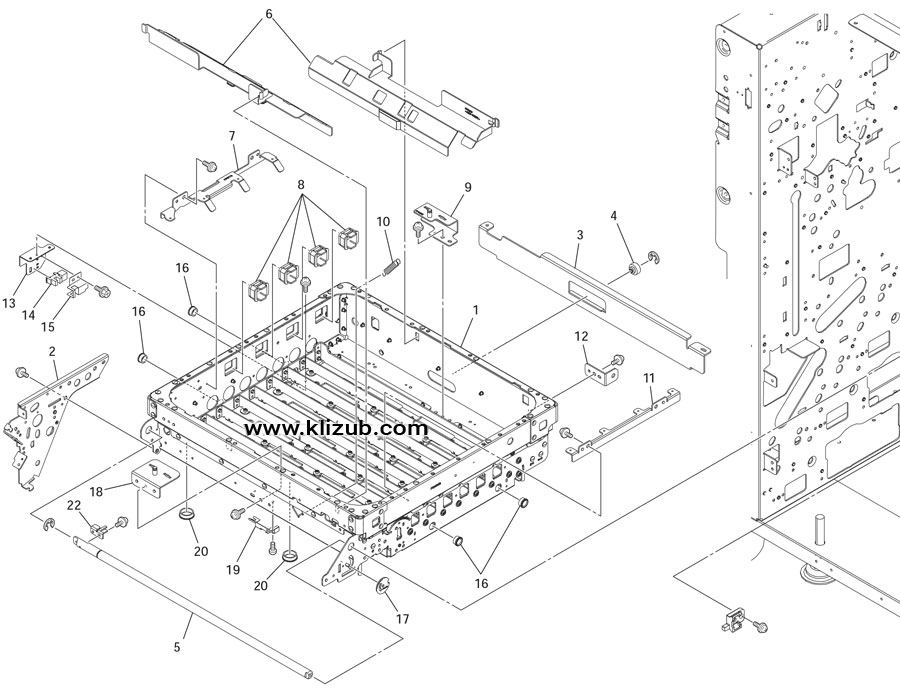

Head Carriage

Head Carriage

Ref. Партс код Наименование Примечание
6 050-79707-009 HH_WIRE_COVER
8 050-79669-000 TUBE_GUARD
13 050-79677-002 BRACKET_BP_SENSOR
14 444-30008-100 SENSOR LG248NL1
19 050-79683-002 COVER TOP EDGE SEN

Print Head Area CK

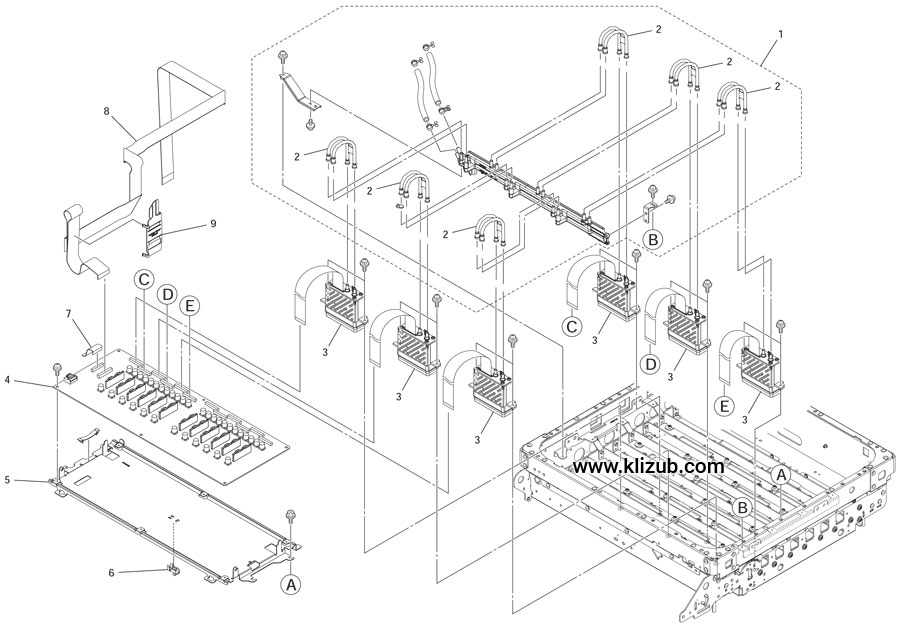

Print Head Area CK

Ref. Партс код Наименование Примечание
1 050-79702-007 INK_BUS_SET_C CC9,7 Series
1 050-79897-002 INK_BUS_SET_CA4 CC3 Series
1 050-79701-000 INK_BUS_SET_B CC9,7 Series
1 050-79896-006 INK_BUS_SET_BA4 CC3 Series
2 050-79706-002 HEAD_TUBE
3 050-79705-006 HEAD_CF1_SET
4 050-79664-008 HDR PCB CC9,7 Series
4 050-79895-000 HDR PCB A4 CC3 Series
5 050-79661-009 HDR_BRACKET_I_ASSY
6 050-79663-001 THERMSTOR_HLDR
7 050-79791-000 FFC_40CK
8 050-79792-006 FFC_50CK
9 050-79659-004 FFC_GUARD

Print Head Area MY

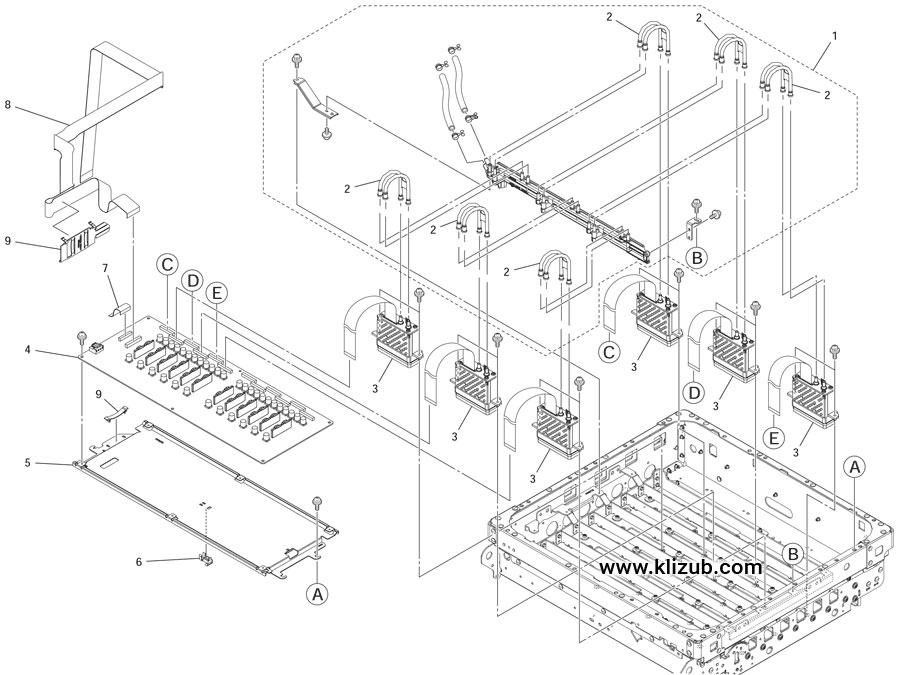

Print Head Area MY

Ref. Партс код Наименование Примечание
1 050-79703-003 INK_BUS_SET_M CC9,7 Series
1 050-79898-009 INK_BUS_SET_MA4 CC3 Series
1 050-79704-000 INK_BUS_SET_Y CC9,7 Series
1 050-79899-005 INK_BUS_SET_YA4 CC3 Series
2 050-79706-002 HEAD_TUBE
3 050-79705-006 HEAD_CF1_SET
4 050-79664-008 HDR PCB CC9,7 Series
4 050-79895-000 HDR PCB A4 CC3 Series
5 050-79662-005 HDR_BRACKET_E_ASSY
6 050-79663-001 THERMSTOR_HLDR
7 050-79793-002 FFC_40MY
8 050-79794-009 FFC_50MY
9 050-79659-004 FFC_GUARD

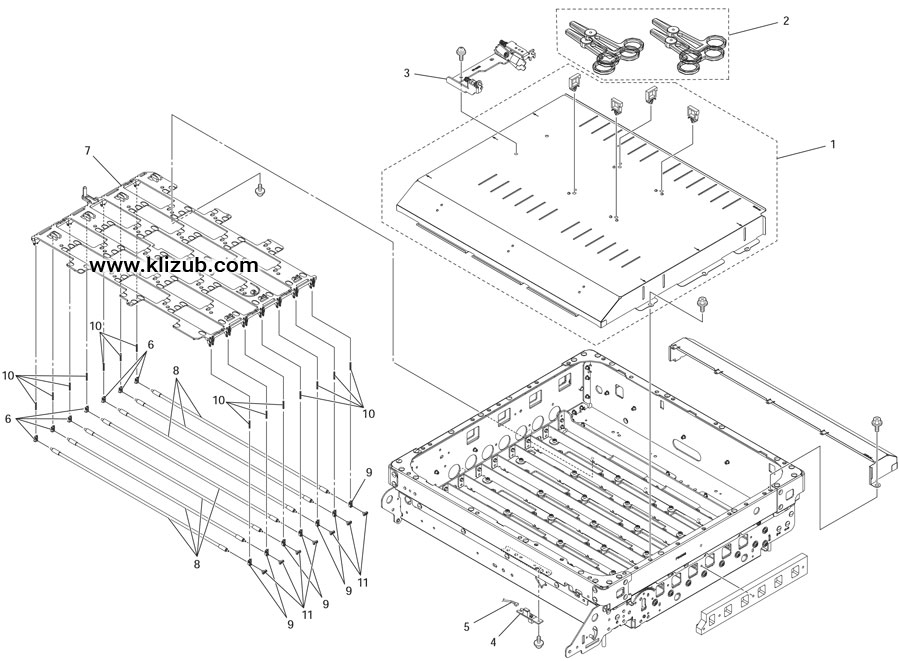

KG Roller Area

KG Roller Area

Ref. Партс код Наименование Примечание
1 050-79660-002 C-COVER_I_ASSY
2 050-79665-004 Plastic Forceps
3 050-79655-009 HEAD_ADJUST_ASSY
4 444-43010-081 RPR-220-PCB
5 050-79882-005 WIREHARNESS TOPSNS2
7 050-79671-004 KG_BASE_ASSY
8 050-79712-002 KG_ROLLER
9 050-79679-005 KG_BEARING
10 050-79678-009 KG_SPRING
11 050-79680-003 BEARING_STOPPER

Cooling Fan

Cooling Fan

Ref. Партс код Наименование Примечание
1 050-79666-000 EXHAUST_DUCT_ASSY
2 490-41014-082 FAN E1033H24BYAZ
3 050-79667-007 COOLING_DUCT_ASSY
4 050-79668-003 COOLING_NOZZLE_SET
5 050-79669-000 TUBE_GUARD

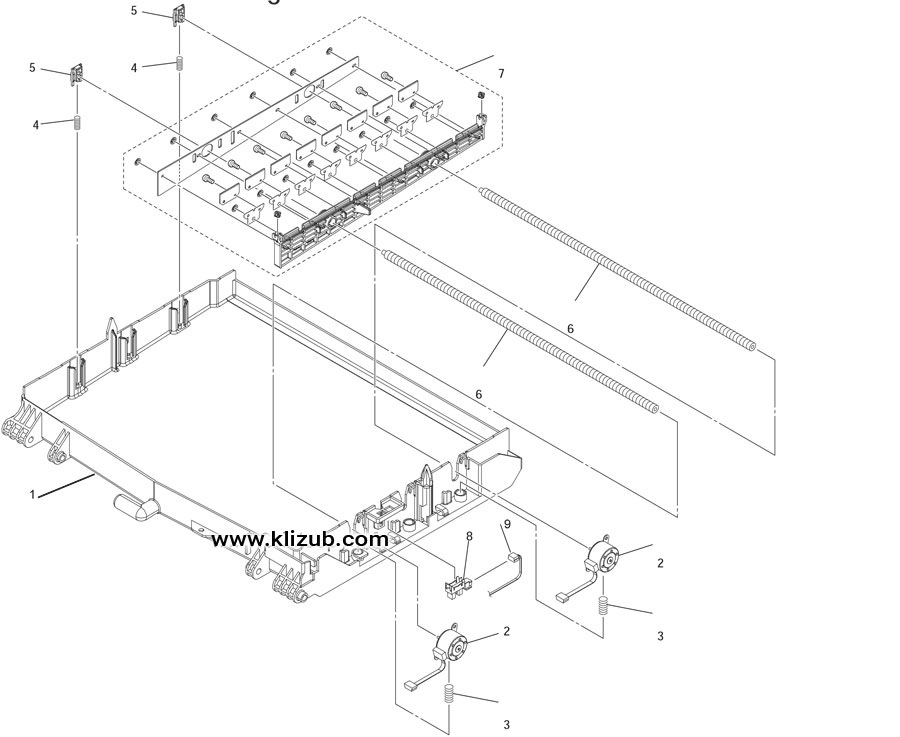

Maintenance Unit

Maintenance Unit

Ref. Партс код Наименование Примечание
  050-79640-001 IINK_PAN_UNIT(1-8)
2 050-79641-008 * WIPE_MOTOR_SET (3-6)
7 050-79653-006 *W IPE_ASSY
8 444-30008-100 * SENSOR LG248NL1
9 050-79879-004 WIRE HARNESS WIPMTRSNS

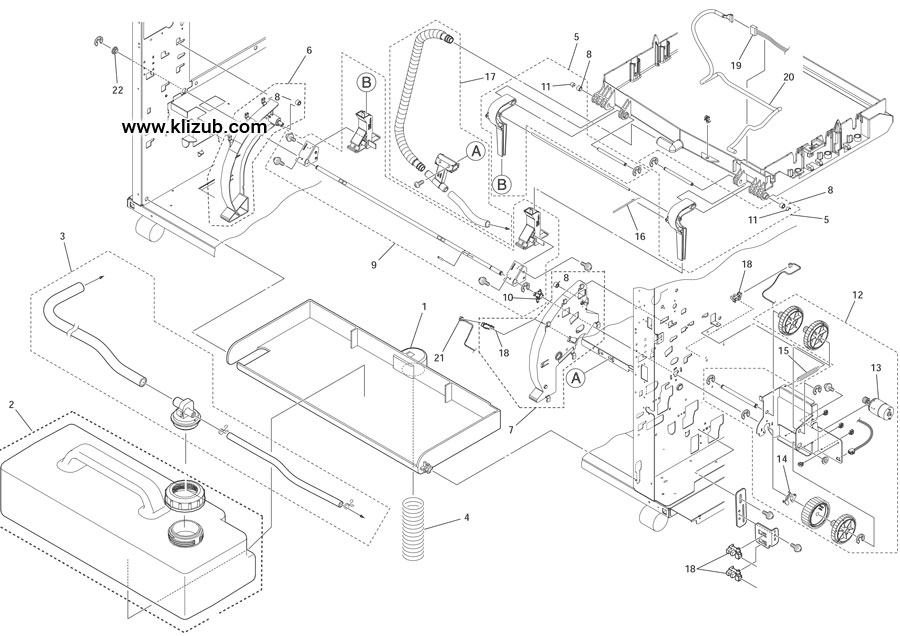

Drain Ink Tank

Drain Ink Tank

Ref. Партс код Наименование Примечание
1 050-79585-000 WST_TANK_HOLDER
2 050-79583-008 WST_TANK_SET
3 050-79584-004 WST_CAP_SET
4 050-79586-007 WST_TANK_SPRING
5 050-79642-004 SLIDER_SET (6-8)
9 050-79646-000 ARM_SHAFT_SET
10 050-79647-006 ARM_BEARING
11 050-79643-000 3ERING
12 050-79649-009 INK PAN DRIVE MOTOR SET
13 050-79652-000 INK PAN DRIVE MOTOR
14 050-79651-003 DRIVE_BEARING
15 050-79650-007 DRIVE_SPRING
16 050-79648-002 HARNESS_ARM
17 050-79654-002 EXIT_HOSE_ASSY
18 444-30008-100 SENSOR LG248NL1
19 050-79878-008 WIRE HARNESS WIPIF
20 050-79859-003 WIRE HARNESS MENTIF
21 050-79884-008 WIRE HARNESS MEINPOSSNS
22 607-15000-000 Metal FBx13/12x5

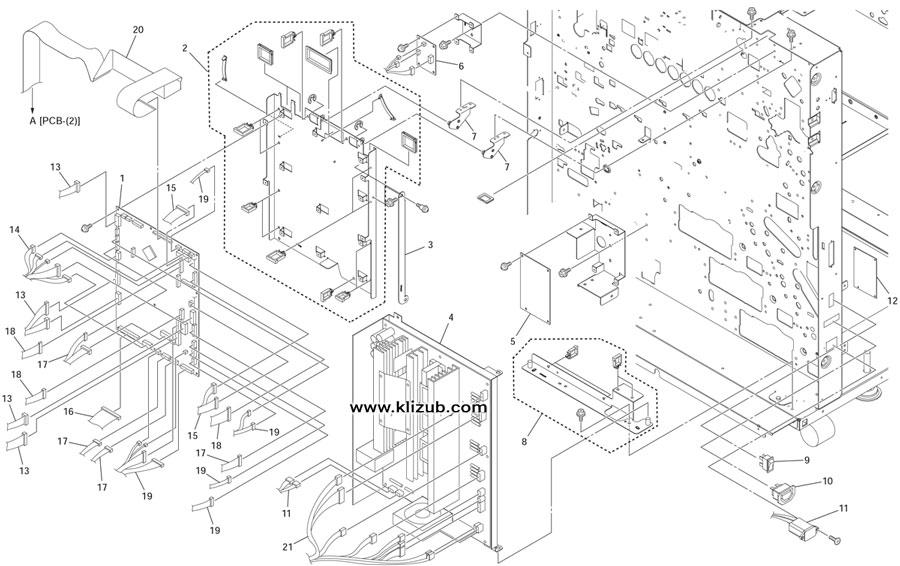

Electrical Component Area (1)

Electrical Component Area (1)

Ref. Партс код Наименование Примечание
1 050-74037-080 ENGINE CONTROL PCB
2 050-79596-002 PCB_PLATE
3 050-79595-006 ARM
4 050-50901-108 POWER SUPPLY PS20-HWW
5 050-65900-280 I-PF-DRIVE-PCB
6 050-79587-003 OR2HEATER_PCB
7 050-79590-004 HINGE
8 050-79594-000 PS_BRA_ASSY
9 050-79887-007 WIRE HARNESS SWPS
10 050-79888-003 WIRE HARNESS SCANP
11 050-79886-000 WIRE HARNESS INLETSE
12 050-50903-089 PF-RELAY-PCB
13 050-79861-008 WIRE HARNESS RFDRV
14 050-79866-000 WIRE HARNESS PSUNIT
15 050-79859-003 WIRE HARNESS MENTIF
16 050-79868-002 WIRE HARNESS RRUACT
17 050-79867-006 WIRE HARNESS RRUSNC
18 050-79798-004 WIRE HARNESS TWRIF
19 050-79863-000 WIRE HARNESS FRNT
20 050-79796-001 WIRE HARNESS IPCONN
21 050-79866-000 WIRE HARNESS PSUNIT

Electrical Component Area (2)

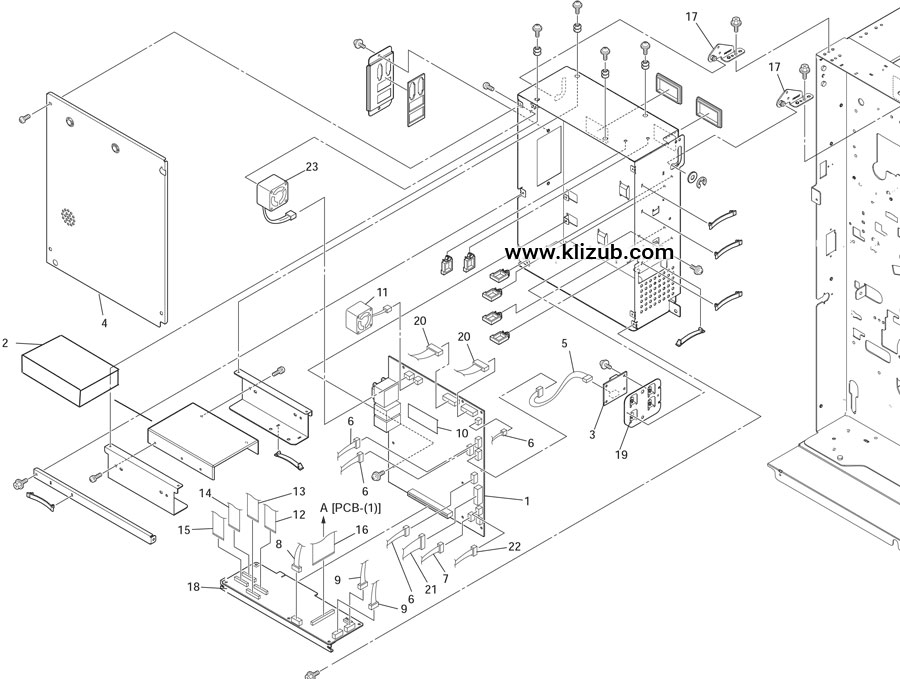

Electrical Component Area (2)

Ref. Партс код Наименование Примечание
  050-74035-088 Controller PCB Unit For 9 Series H (1-5, 10, 11, 19, 23)
  050-74036-084 Controller PCB Unit For 7,3Series M (1-5, 10, 11, 19, 23)
1 050-75023-008 *PMS-PCB
2 050-75039-001 *HDD Comcolor
3 050-50907-009 *LVDS-PCB
4 050-50002-081 *Box Cover PMS
5 050-50908-189 *WIRE HARNESS CONTROLLER VDS
6 050-79865-003 WIRE HARNESS PNL
7 050-53929-003 WIRE HARNESS USB
8 050-79866-000 WIRE HARNESS PSUNIT
9 050-79865-003 WIRE HARNESS PNL
10 050-75024-004 SO-DIMM 512MB
11 050-75026-007 FAN CPU
12 050-79793-002 FFC_40MY
13 050-79794-009 FFC_41MY
14 050-79792-006 FFC_50CK
15 050-79791-000 FFC_40CK
16 050-79796-001 WIRE HARNESS IPCONN
17 050-79590-004 HINGE
18 050-79591-000 IP PCB ASSY
19 050-50006-087 Bracket LVDS-PCB
20 050-79866-000 WIRE HARNESS PSUNIT
21 050-75028-000 WIRE HARNESS SATA Signal
22 050-75029-006 WIRE HARNESS HDD Power
23 050-75027-003 FAN PMS

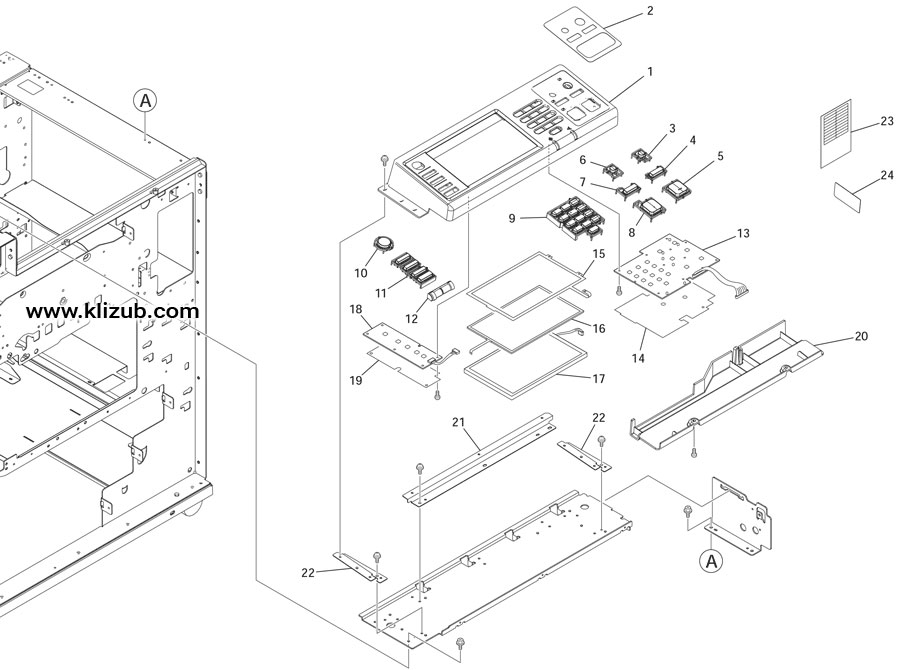

Panel Area

Panel Area

Ref. Партс код Наименование Примечание
  050-75038-056 PANEL UNIT SU (1-26)
1 050-37001-009 * Case Panel
2 050-37034-004 * Sheet Panel Pic
3 050-37024-009 * Sub Power Key
4 050-37022-006 * Reset Key
5 050-37019-005 * Stop Key
6 050-37025-005 * Wake-Up Key
7 050-37023-002 * Interrupt Key
8 050-37018-009 * Start Key
9 050-37020-003 * Numeric Key
10 050-37110-005 * Mode Key
11 050-37021-000 * Function/Counter Key
12 050-37017-002 * Cover Start/Stop Lamp
13 050-37900-003 * TEN KEY - PCB
14 050-37030-009 * Insulating Sheet 1
15 050-37029-000 * Mylar Shield
16 444-59009-008 * Touch Panel
17 484-60007-006 * TFT Screen
18 050-37901-000 * MODE KEY-PCB
19 050-37031-005 * Insulating Sheet 2
20 050-37002-005 * Cover Panel Lower
21 050-37002-001 * Plate Ground
22 050-37003-001 * Bracket Panel Angle
23 050-37033-105 * Seal Function
24 050-37007-007 * Sheet Blind

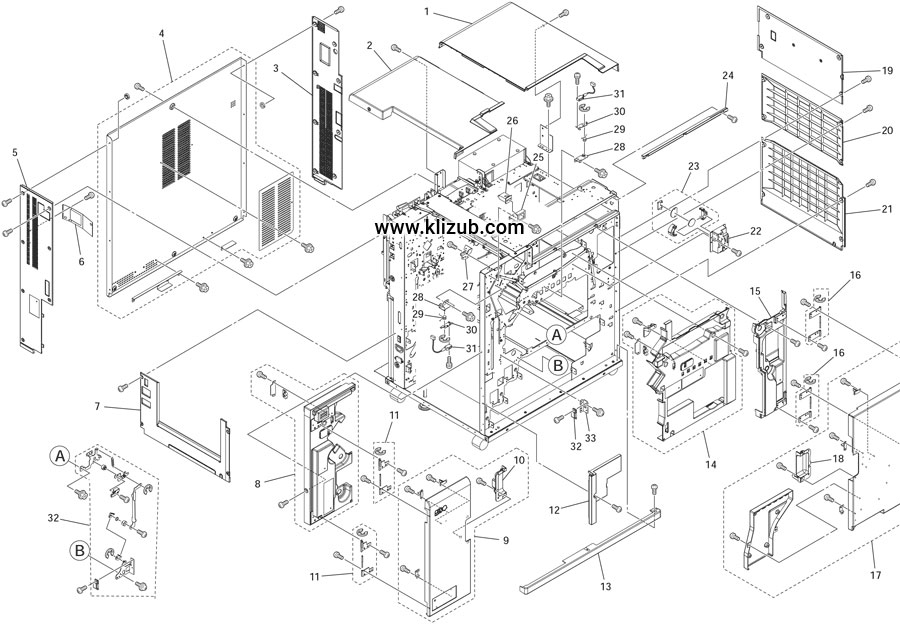

Cover Area

Cover Area

Ref. Партс код Наименование Примечание
  050-79767-001 FRONT_DOOR_ASSY(8-11)
  050-79775-004 FRONT_DOOR_R_SET(15-18)
1 050-79764-002 COVER_TOP_R
2 050-79763-006 COVER_TOP_L
3 050-79781-004 COVER_REAR_R
4 050-79782-000 COVER_REAR_M_AS
5 050-79761-003 COVER_REAR_L
6 050-79765-009 BRACKET_GND
7 050-79768-008 COVER_LS_L
8 050-79762-000 *COVER_INNER_L_ASSY
9 050-79770-002 *COVER_LF_ASSY
10 050-79769-004 **KNOB_L
11 050-79766-005 *HINGE_L_ASSY
12 050-79785-000 COVER_INNER_LOW
13 050-79773-001 COVER_TR_LOW
14 050-79783-007 COVER_INNER_ASSY
15 050-79784-003 *COVER_INNER_R_ASSY
16 050-79776-000 *HINGE_R_ASSY
17 050-79771-009 *COVER_RF_ASSY
18 050-79772-005 **KNOB_R
19 050-79778-003 COVER_R_SIDE
20 050-79777-007 COVER_EXIT
21 050-79779-000 COVER_WST
22 050-79788-009 RF_HOUSING
23 050-74031-082 RFID PCB UNIT
24 050-79780-008 COVER_INNER_INK
25 050-79787-002 BRACKET_COUNT
26 492-00001-108 COUNTER MZ-775-DC24V 117
27 050-79786-006 BRACKET_TOP_L
28 050-34016-005 BRACKET 1 SAFETY SW
29 023-28403-105 SAFETY SWITCH SPRING
30 023-28404-004 BRACKET 2 SAFETY SW
31 023-53026-006 SAFETY SW
32 050-79789-005 BRACKET MCATCH
33 050-79790-003 COVER_LOCK_ASSY

/26.02.2020/


Другие новости и события

27.03.2020 Доступны к заказу узлы и запасные части Riso ComColor FW5230

подробнее » » »
20.03.2020 Доступны к заказу узлы и запасные части Riso ComColor FW Series

подробнее » » »
29.02.2020 Доступны к заказу узлы и запасные части Riso ComColor 9110

подробнее » » »
Корзина
 Корзина
В корзине нет товаров

Уважаемый(-ая), Гость!
Вы не зарегистрированы.
Ваша скидка: 0%
Статьи
Статьи
Konica Minolta bizhub PRO 1050 - модель, которую отличают низкие эксплуатационные расходы
bizhub PRO 1050 – это надёжная система, выполненная в стальном корпусе и созданная для удовлетворения потребностей высокопроизводительных сегментов
Коника Минолта запускает новую высокопроизводительную систему: bizhub PRO 920
bizhub PRO 920 является новейшим дополнением в линейке производственных печатных устройств Коника Минолта. Он соединяет в себе качество копирования, печати и точность сканирования. Это устройство идеально для офисов с большим объемом печати, в отделе подготовки печатной продукции и цифровой печати.
Серия Konica Minolta bizhub PRO удостоена награды BERTL
Серия черно-белых производительных систем от Konica Minolta, представленная машинами bizhub PRO 920 и bizhub PRO 1050e, высоко оценена лабораторией BERTL за удобство использования и качество печати.
Обзор Aficio SP 3400SF
В уникальном МФУ Aficio SP 3400SF специалисты компании Ricoh сумели соединить весь необходимый набор для качественной и бесперебойной офисной работы.
Что нового в Ricoh MP 4002 и MP 5002
Продолжаем обзор Ricoh Aficio MP 4002 и MP 5002
Акции
Акции
Акция! Ризограф (копи-принтер) Ricoh DD4450 used 3 единицы в наличии.
Акция! Fuser Unit C203/253/353 1 шт - 160 Евро, Fuser Unit C300/352 1 шт - 150 Евро, Fuser Unit 600/750/751 1 шт - 190 Евро, Transfer unit C452/552 1 шт - 220 Евро
Акция! Developer Ricoh Type 28 B121-9640




61038, Украина, г. Харьков, ул. Салтовское шоссе 71/1, к. 5, (057) 751-96-30. Администрация сайта:
