Доступны к заказу узлы и запасные части Riso EV3 Series

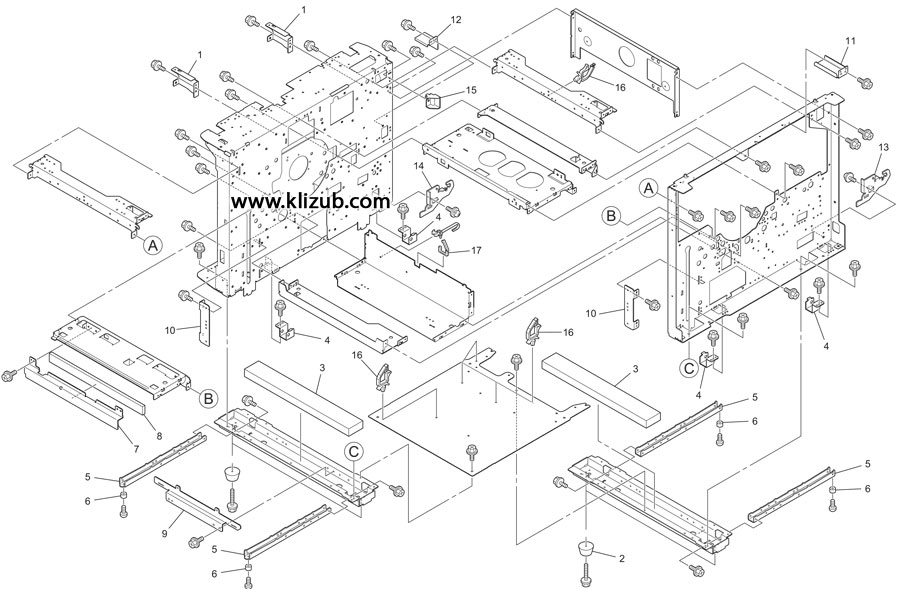

Main Body Area

Main Body Area

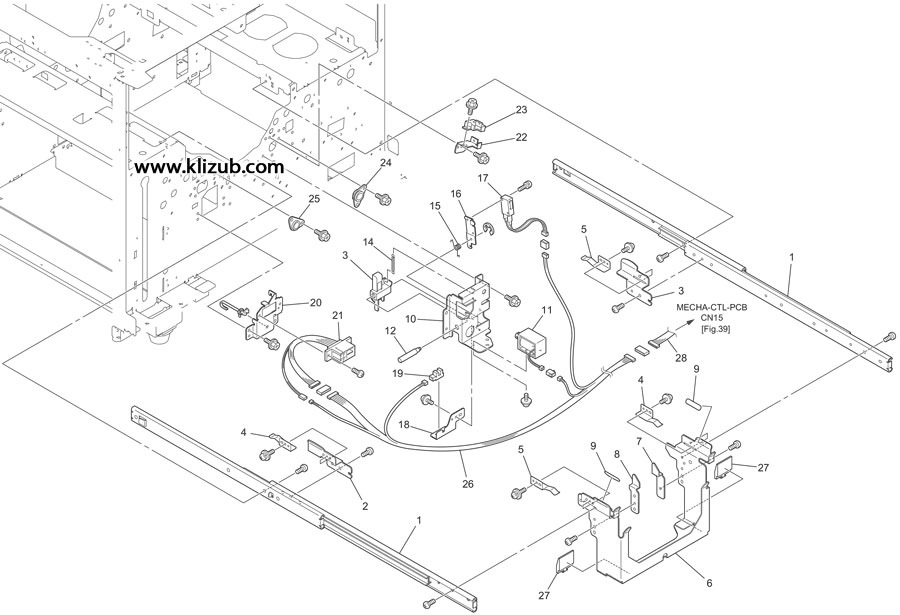

Ref. Партс код Наименование Примечание
1 023-10015-000 Support Bracket FB Scanner
2 660-01016-203 Rubber Foot 4527
3 023-10024-000 Noise Absorber Bottom Main Frame
4 023-10008-004 Transportation Support Plate
5 023-10017-100 lifting Handle
6 023-10030-000 Stopper lifting Handle
7 046-12506-006 Cover Guide Roller
8 023-12544-108 Noise Absorber Guide Roller Cover
9 023-12541-001 Lower Cover Guide Plate
10 023-12536-105 Stay Guide Plate
11 023-28358-002 Stopper M.-M. Unit
12 023-28408-000 Protection Plate Wire Harness M.-M.
13 023-21641-108 Support Plate F P.-Rcv.-T.
14 023-21642-104 Support Plate R P.-Rcv.-T.
15 023-21622-006 Magnet Catch P.-Rcv.-T.
16 665-02043-006 Wire Saddle LWS-1316
17 665-02039-009 Edging Saddle EDS-17L

 Scraper Area (EZ3x0, 5x0)

Scraper Area (EZ3x0, 5x0)

Ref. Партс код Наименование Примечание
  021-14301-143 Pick-up Roller(15-16)
1 023-12316-202 Cover P-Feed
2 550-21173-001 Seal: P.-Feed Pressure Pic.
3 030-04034-006 SEAL P.-F.-T. DOWN
4 023-12319-007 Upper Guard
5 635-00004-004 Stepped Screw F8X2.3 M4X4.4
6 023-12315-001 E Switch Plate
7 023-12344-001 Spring Elevator Safety SW Upper
8 021-51030-109 Elevator SW Assy
9 023-53023-007 Elevator Safety SW
10 023-12333-204 Frame Bracket Pick-Up
11 023-12329-002 Shaft Pick-Up Roller
12 612-10021-107 Gear M0.8X33X7.4
13 607-16001-000 Metal F10X15/14X6 18X2
14 023-12328-103 Support Pick-Up Roller Shaft
15 035-14303-001 *Rubber Pick-Up Roller
16 021-14302-107 *Core Pickup Roller
17 019-11812-106 Lock Ring
18 023-12330-000 Scraper Shaft Pickup
19 612-11300-107 Gear M0.8X34X8.5
20 023-12334-006 Actuator Upper limit Std P.-F.-T
21 023-12308-005 Actuator Upper limit Card P.-F.-T
22 023-12310-000 Stay Paper Feed
23 020-11813-103 Arm P.-F.Pressure Adj.
24 020-11811-208 Spring B P.-F.Pressure Adj.
25 023-12312-100 P.-F.Pressure Adj.Lever
26 023-12313-106 Spring Pf Pressure Adj. Lever
27 023-12314-005 Bracket A Upper limit Sensor
28 046-12301-005 Bracket B Upper Limit Sensor
30 030-14347-002 Base Upper limit Adj. Screw
31 023-12325-007 Bracket Upper limit Sensor
32 444-30008-100 Sensor LG-248Nl1
33 046-12701-100 Junction Wire Harness Safety SW
34 023-15083-004 Bracket Clutch Pick-Up Roller
35 607-15000-000 Metal F8X13/12X5 16X2
36 020-65009-300 P.-F.Clutch
37 023-15080-005 Shaft P.-F. Clutch
38 607-15001-503 Metal F8X12/10.8X14 16X2
39 046-53005-003 Wire Harness Paper Feed Rear
40 046-12302-001 Support Plate Upper Limit Adjust

Scraper Area (EZ2x0)

Scraper Area (EZ2x0)

Ref. Партс код Наименование Примечание
  021-14301-046 Pick-up Roller(15-16)
1 023-12316-105 Cover P-Feed
2 550-21173-001 Seal: P.-Feed Pressure Pic.
3 030-04034-006 SEAL P.-F.-T. DOWN
4 023-12319-007 Upper Guard
5 635-00004-004 Stepped Screw F8X2.3 M4X4.4
6 023-12315-001 E Switch Plate
7 023-12344-001 Spring Elevator Safety SW Upper
8 021-51030-109 Elevator SW Assy
9 023-53023-007 Elevator Safety SW
10 023-12333-204 Frame Bracket Pick-Up
11 023-12329-002 Shaft Pick-Up Roller
12 612-10021-107 Gear M0.8X33X7.4
13 607-16001-000 Metal F10X15/14X6 18X2
14 023-12328-103 Support Pick-Up Roller Shaft
15 035-14303-001 *Rubber Pick-Up Roller
16 021-14302-000 *Core Pickup Roller
17 019-11812-106 Lock Ring
18 023-12330-000 Scraper Shaft Pickup
19 612-11300-107 Gear M0.8X34X8.5
20 023-12334-006 Actuator Upper limit Std P.-F.-T
22 023-12310-000 Stay Paper Feed
23 020-11813-006 Arm P.-F.Pressure Adj.
24 020-11811-100 Spring B P.-F.Pressure Adj.
25 023-12312-100 P.-F.Pressure Adj.Lever
26 023-12313-009 Spring Pf Pressure Adj. Lever
27 023-12314-005 Bracket A Upper limit Sensor
28 046-12301-005 Bracket B Upper Limit Sensor
30 030-14347-002 Base Upper limit Adj. Screw
31 023-12325-007 Bracket Upper limit Sensor
32 444-30008-100 Sensor LG-248Nl1
33 046-12706-005 Junction Wire Harness Safety SW LL
34 023-15083-004 Bracket Clutch Pick-Up Roller
35 607-15000-000 Metal F8X13/12X5 16X2
36 020-65009-202 P.-F.Clutch
37 023-15080-005 Shaft P.-F. Clutch
38 607-15001-503 Metal F8X12/10.8X14 16X2
39 046-53005-003 Wire Harness Paper Feed Rear
40 046-12302-001 Support Plate Upper Limit Adjust

 Elevator-Safety SW Area

Elevator-Safety SW Area

Ref. Партс код Наименование Примечание
  023-75078-050 Elevator Motor Assy(21-30)
1 023-12207-500 Side Frame R Elevator
2 023-12216-607 Side Frame F Elevator
3 023-12261-009 Absorber Gear ll P.-F.
4 023-75159-050 Elevator Shaft Assy
5 023-12232-106 Reinforcement Plate Elevator
6 023-12201-006 Elevator Rack P.-F.
7 046-12216-008 Lower Limit Frame P.-F.
8 023-12206-008 Support Lower limit Frame P.-F.
9 023-12251-003 Bracket F Spring Lower Safety SW
10 023-12252-000 Bracket R Spring Lower Safety SW
11 023-12237-000 Spring Elevator Safety SW Lower
12 023-53023-007 Elevator Safety SW
13 023-12233-307 Bracket Lower limit Sensor
14 444-30008-100 Sensor LG-248Nl1
15 023-12202-100 Spring Elevator
16 023-12203-009 Bracket Elevator Spring P.-F.
17 023-12231-002 Hook Rear Elevator Spring
18 023-12238-007 Guide Flexible Wire P.-F.
19 600-50057-006 Bearing Flaw678 ZZA
20 607-15000-000 Metal F8X13/12X5 16X2
21 023-12247-006 *Cover Elevator Motor
22 023-12234-206 *Motor Chassis Elevator Motor
23 023-12223-000 *Gear Cover Elevator Motor
24 612-10009-107 *Gear M1x24
25 612-80011-001 *Gear M0.8X23+M0.8X14
26 612-80012-008 *Gear M0.8X30+M0.8X14
27 612-80013-004 *Gear M0.8X29+M1X14
28 023-12244-104 *Elevator Motor Collar
29 023-74001-054 *Motor Assy (CWRS-445PA)
30 030-19205-001 *Support Clamp Worm
31 023-12602-108 Wire Harness Elevator Motor
32 046-12201-000 Bracket Paper Feed Junction PCB
33 046-12203-003 Junction PCB II Paper Feed
34 046-53005-003 Wire Harness Paper Feed Rear
35 024-12607-107 Wire Harness PF Tray
36 046-53009-009 Wire Harness Safety SW M.-Rmv.

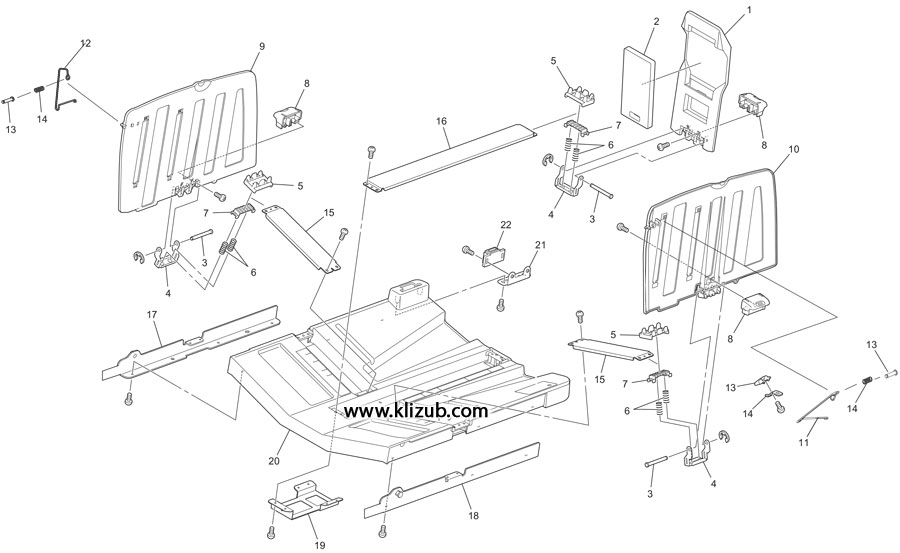

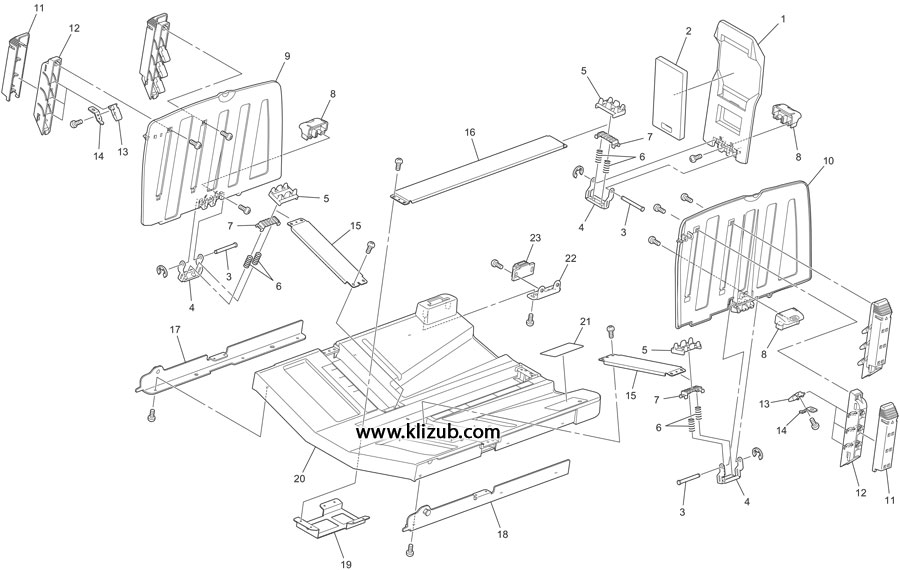

Paper-Feed Tray

Paper-Feed Tray

Ref. Партс код Наименование Примечание
  046-74002-004 P.-F.-T.Unit II(1-32)
1 023-12101-206 *Paper Feed Tray Upper
2 020-11520-009 *L.O. Sheet
3 023-12150-002 *Seal Closing Tray Instruction P.-F.-T
4 023-12126-004 *Bracket Catch
5 046-12202-007 Junction PCB II P.-F.-T
6 046-12700-007 *Wire Harness II P.-F.-T
7 023-12605-204 *Potentiometer P.-F.-T
8 023-12241-105 *Shaft Potentiometer Gear
9 612-10023-002 *Gear M1X50X6
10 444-33013-007 *Sensor PS124TD1
11 023-12139-203 *Side Guide F P.-F.-T
12 023-12140-201 *Side Guide R P.-F.-T
13 023-12147-001 *Seal Setting Instruction P.-F.-T
14 023-12108-006 *Lever P.-F.-T.
15 023-12109-002 *Link Plate A P.-F.-T.
16 023-12128-104 *Link Plate B P.-F.-T.
17 046-12101-006 *Slide Rack II P.-F.-T
18 023-12130-001 *Flexible Wire Cover P.-F.-T.
19 011-11514-000 *Gear Slide Rack P.-F.-T.
20 023-12129-003 *Guide Plate Slide Rack
21 023-12125-008 *Connector Cover
22 023-12102-008 *Bottom Frame P.-F.-T.
23 023-12132-004 *Shaft P.-F. Tray
24 023-12123-102 *Adj. NUT P.-F.-T.
25 023-12133-000 *Adjuster Dial P.-F.-T.
26 023-12121-207 *Bracket P.-F.-T.
27 023-12155-209 *Bracket Hinge Cover
28 610-10009-005 *One-Way Hinge OWNF6-1NRS
29 612-10036-007 *Gear M1x20x7
30 023-12254-100 *Shaft Damper Hinge P-F-T
31 021-04011-104 *Adj. Seal P.-F.-T
32 635-00001-005 *STEPPED SCREW F6X1.8 M3X4
33 660-00002-004 Magnet Catch SM50-P
34 023-21643-003 Bracket Magnet Catch P.-Rcv.-T.
35 024-12607-107 Wire Harness PF Tray
36 023-12138-002 Holder Flexible Wire P.-F.-T.

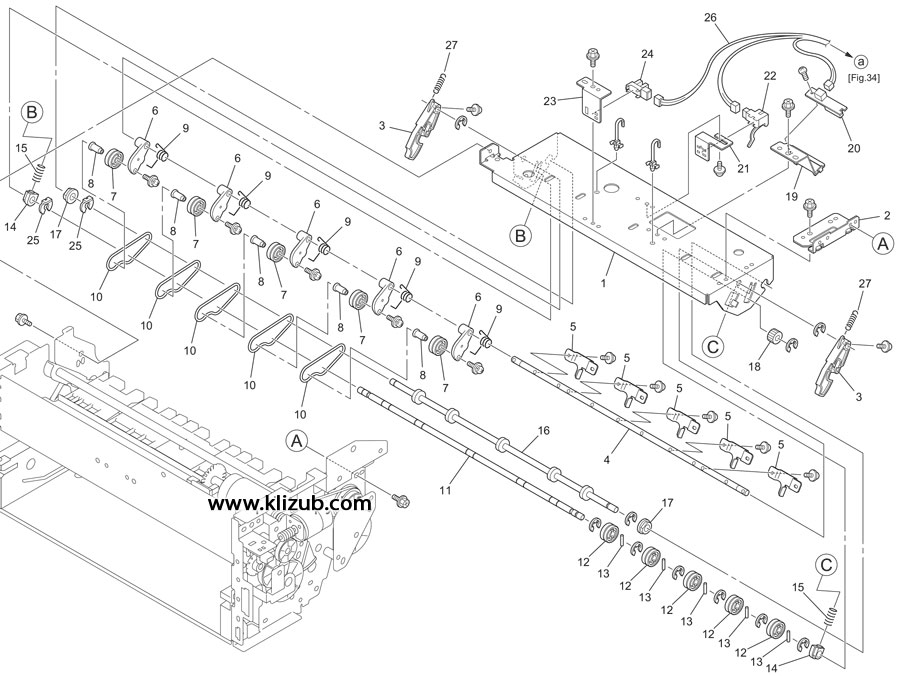

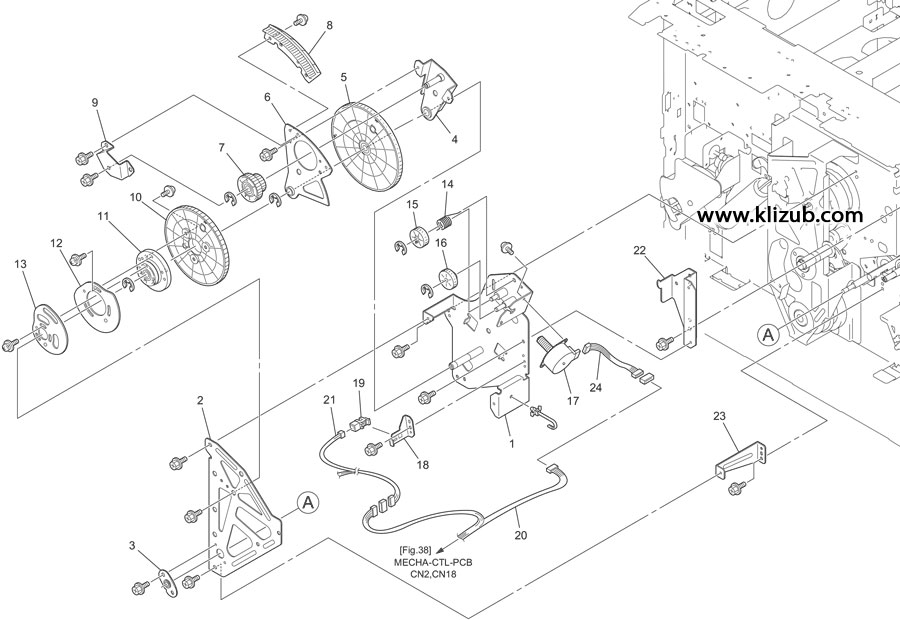

Drive Mechanism Area (1)

Drive Mechanism Area (1)

Ref. Партс код Наименование Примечание
  023-75094-056 Ver. Print Pos. Base Assy(1-19)
1 023-15034-208 *Print Positioning Base
2 023-15115-100 *Cover Paper Feed Drive
3 023-15078-000 *Bracket Timing Roller
4 023-15104-400 *Arm Front Ver. Print Pos.
5 612-10016-103 *Gear M1X140X8
6 023-15105-008 *Arm Rear Ver. Print Pos.
7 612-80017-107 *Gear M1X42+M1X28
8 023-15068-005 *Sector Gear Ver. Print Position
9 023-15103-005 *Cover Ver. Print pos. Planet Gear
10 612-10014-003 *Gear M1X126X7.5
11 023-15098-206 *Gear Base Block Vertical Gear
12 023-15056-201 *Timing Cam
13 023-15055-108 *Sector Cam
14 023-15070-000 *Idler Spring Vertical
15 612-10013-007 *Gear M0.8X36X10
16 612-81303-006 *Gear M0.8X35+M0.8X15
17 490-33016-106 *Motor PM42L-048-ZVN5
18 023-15116-000 *Bracket Vertical Centering Sensor
19 444-30008-100 *Sensor LG-248Nl1
20 046-53008-002 Wire Harness FB Upper
21 046-53005-003 Wire Harness Paper Feed Rear
22 023-15117-006 Bracket Ver. Print Pos. Base
23 023-15072-002 Cover Stay Paper Feed Drive
24 046-53012-000 Junction Harness Vertical Pos.Motor

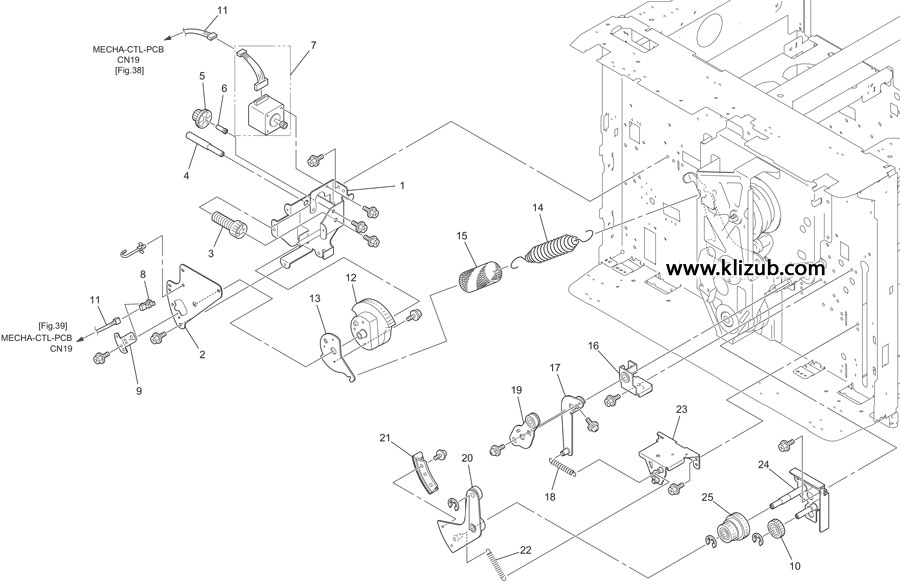

Drive Mechanism Area (2) (EZ3x0, 5x0)

Drive Mechanism Area (2) (EZ3x0, 5x0)

Ref. Партс код Наименование Примечание
  023-75076-058 Pressure Control Assy(1-9)
1 023-15023-109 *Base Bracket Pressure Control
2 023-15027-007 *Cover Plate Pressure Control
3 023-15030-008 *Worm Gear Pressure Control
4 023-15029-107 *Worm Shaft Pressure Control
5 023-15028-003 *Gear Pressure Control
6 023-15025-101 *Gear Shaft Pressure Control
7 490-31010-003 *Motor KH42JM2B173
8 444-30008-100 *Sensor LG-248Nl1
9 023-15032-000 *Bracket HP sensor Pressure Control
10 612-12208-107 Gear M1X28X8
11 046-53004-007 Wire Harness Paper Ejection Rear
12 023-15031-101 Gear Wheel Pressure Control
13 023-15033-104 Rotation Plate Pressure Control
14 045-15018-200 Pressure Spring H25
15 023-15019-004 Noise Reduction Pressure Spring
16 023-15062-007 Bracket Base Guide Roller Shaft
17 023-15154-408 Base Bracket Guide Roller Release
18 023-15063-208 Spring Guide Roller Release
19 023-15061-000 Guide Roller Lever
20 023-15058-301 Lever Plate Sector Gear
21 023-15059-006 Sector Gear
22 023-15060-306 Spring Sector Gear
23 023-15155-200 Hook Bracket Spring Sector Gear
24 023-15041-409 Bracket 1st Transmission
25 612-82407-107 Gear M1X41+M1X29

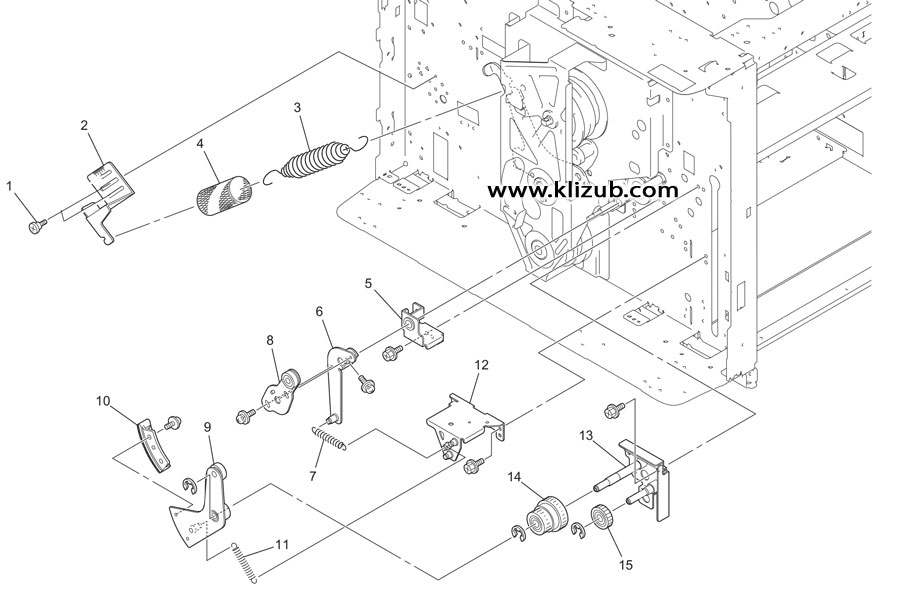

Drive Mechanism Area (2) (EZ2x0)

Drive Mechanism Area (2) (EZ2x0)

Ref. Партс код Наименование Примечание
1 635-17423-108 Stepped Screw F4X2.2 M3X4
2 023-15124-100 Plate Pressure Spring
3 023-15035-204 Pressure Spring LL
4 023-15019-004 Noise Reduction Pressure Spring
5 023-15062-007 Bracket Base Guide Roller Shaft
6 023-15154-408 Base Bracket Guide Roller Release
7 023-15063-208 Spring Guide Roller Release
8 023-15061-000 Guide Roller Lever
9 023-15058-301 Lever Plate Sector Gear
10 023-15059-006 Sector Gear
11 023-15060-306 Spring Sector Gear
12 023-15155-200 Hook Bracket Spring Sector Gear
13 023-15041-409 Bracket 1st Transmission
14 612-82407-107 Gear M1X41+M1X29
15 612-12208-107 Gear M1X28X8

Drive Mechanism Area (3)

Drive Mechanism Area (3)

Ref. Партс код Наименование Примечание
  023-75124-150 Main Gear Assy A3 (8-14) 37x,39x,57x,59x
  023-75125-156 Main Gear Assy B4(8-14) 22x,23x,33x

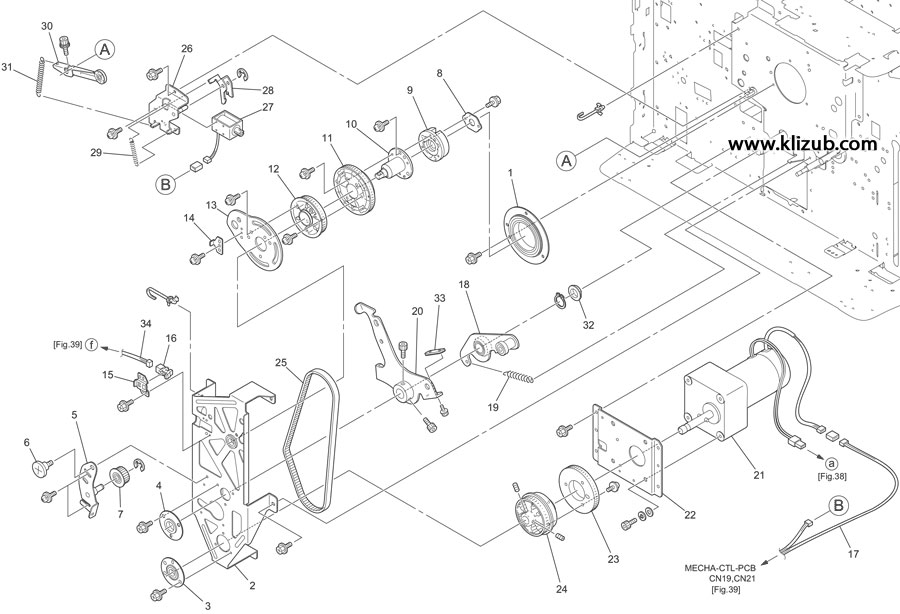

  023-75126-055 Main Gear Assy A4 (8-14) 20x,30x
  046-75011-058 Main Motor Assy II(21-24)
  023-75153-052 Pressure Solenoid Assy(26-29)
1 023-15001-008 Bearing Main Shaft
2 023-15108-201 Main Cover Drive
3 030-12235-304 Support Plate Main Motor
4 023-15012-000 Bracket Pressure Shaft
5 023-15006-204 Tensioner Lever Main Belt
6 635-17814-107 Stepped Screw 8X1.7 M4X4.3
7 611-90006-009 Pulley P18-5GT-12
8 023-15089-002 Joint Collar Drive
9 023-15003-000 *Shaft Joint Drive
10 023-15002-004 *Main Shaft Drive
11 023-15121-100 *Main Gear Drive
12 611-90007-102 *Pulley P42-5Gt
13 023-15011-003 *Pressure Cam A3 37x,39x,57x,59x
13 023-15129-101 *Pressure Cam B4 22x,23x,33x
13 023-15128-008 *Pressure Cam A4 20x,30x
14 023-15046-001 *Actuator B position sensor
15 023-15150-003 Bracket B Position Sensor
16 444-30008-100 Sensor LG-248Nl1
17 046-53004-007 Wire Harness Paper Ejection Rear
18 046-15006-101 Pressure Lever II Cam
19 045-15145-007 Spring Cam Follower
20 046-15004-109 Pressure Lever II Spring
21 490-22024-000 *Motor CWTD3337G-24F-9K24D
22 023-15047-105 *Bracket Main Motor
23 612-10017-002 *Gear M1X80X10
24 611-90008-109 *Pulley P42-5GT-13
25 620-00010-001 Belt 645-5GT-10
26 023-15020-100 *Base Bracket Pressure Solenoid
27 490-50006-009 *Solenoid Tds-10A-1056
28 030-12114-108 *Lever Pressure Solenoid
29 023-15123-006 *Spring Pressure Solenoid
30 023-15037-002 Lever Assy Separator
31 023-15038-009 Spring Separator
32 607-10003-001 Metal F16X22/19X6 26X2
33 045-15162-106 Shock Absorber Pad Pressure Lever
34 046-53014-002 TPH Drawer Connector H (G)

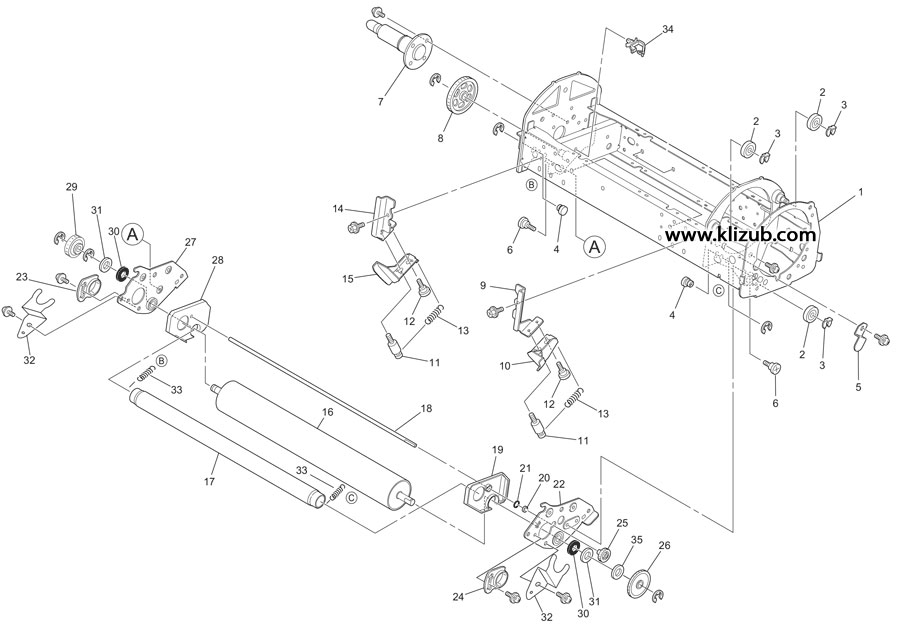

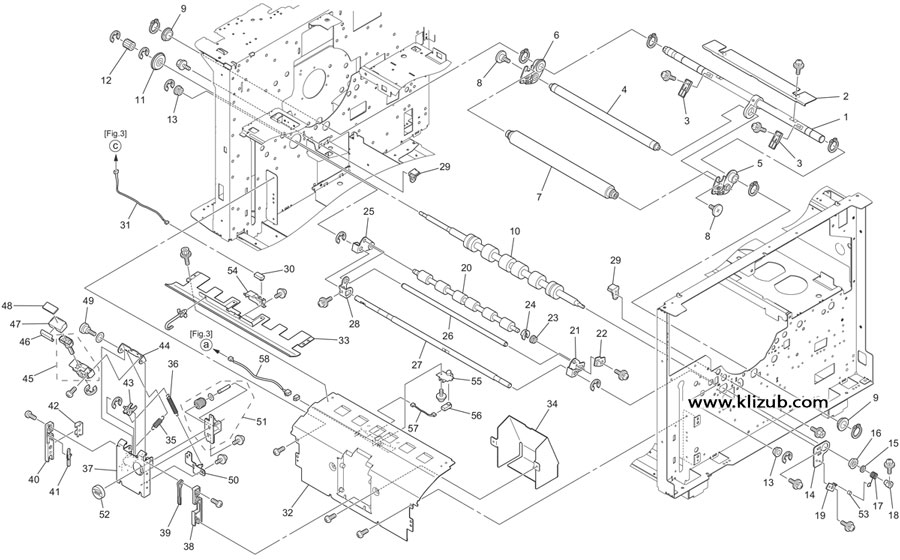

Roller System Area

Roller System Area

Ref. Партс код Наименование Примечание
  046-75013-077 Pressure Roller Assy II A3(1-8) 37x,39x,57x,59x
  046-75014-073 Pressure Roller Assy II B4(1-8) 33x,23x
  046-75035-003 Pressure Roller Assy II A4(1-8) 22x,20x,30x
  023-75093-050 Timing Roller Assy(10-12)
  023-75080-152 Guide Roller Assy(20-28)
  046-75001-052 Guide Plate Assy II(30-33,54-58)
  023-75089-150 Stripper Unit(35-52)
1 046-19003-000 *Pressure Shaft
2 023-19013-108 *Paper Guide Pressure
3 023-19012-004 *Stopper Pressure Roller
4 046-19001-007 *Support Shaft Pressure
5 023-75071-056 *Pressure Roller Support Front Assy
6 023-75072-052 *Pressure Roller Support Rear Assy
7 023-74068-078 *Pressure Roller A3 37x,39x,57x,59x
7 023-74069-074 *Pressure Roller B4 33x,23x
7 023-75120-057 *Pressure Roller A4 22x,20x,30x
8 635-17613-004 *Stepped Screw 6X1.8 M3X4
9 607-10003-001 Metal F16X22/19X6 26X2
10 023-12501-107 *Timing Roller
11 023-12503-100 *Bearing Timing Roller
12 612-02101-207 *Gear M1X15X12
13 607-16001-000 Metal F10X15/14X6 18X2
14 023-12507-105 Adj. Plate Timing Roller
15 639-00610-000 P Washer 6X13.5X1
16 601-10195-004 Bearing Ddlf-1910ZZR
17 030-14476-300 Load Spring
18 023-12510-009 Collar Load Spring
19 030-14458-203 Fix Plate Load Spring
20 023-12511-102 *Guide Roller
21 023-12515-000 *Support F Guide Roller
22 023-12545-007 *Adj. Plate Guide Roller
23 607-40001-003 *Metal F8X11/10X5.5 14X2
24 023-12519-006 *Lock Plate Guide Roller
25 023-12516-104 *Support R Guide Roller
26 023-12513-202 *Pressure Shaft Guide Roller
27 023-12512-206 *Shaft Guide Roller
28 023-12514-101 *Pressure Plate Guide Roller
29 023-12537-101 Stay Holder Guide Plate
30 444-32007-003 *Sensor OF-11R-N23 (Upper)
31 046-12702-000 *Wire Harness Paper Sensor U
32 046-12503-007 *Guide Plate (Lower)
33 023-12533-408 *Guide Plate (Upper)
34 023-12543-004 Back Cover Stripper Unit
35 023-12429-201 *Spring Angle Adj. Stripper
36 023-12403-008 *Spring Tension Stripper
37 023-12425-109 *Stripper Support RZ-L
38 023-12431-001 *Guide Block Front Stripper Unit
39 023-12430-005 *Unfix Lever Stripper Unit
40 030-14521-100 *Lock Fixing Block
41 023-12428-108 *Lock Lever Stripper Unit
42 018-31614-001 *Ground Spring Roller System
43 023-12412-007 *Arm Stripper pressure
44 023-12402-109 *Bracket Stripper Base
45 023-12434-000 *Stripper Assy RZ
46 019-11832-000 *Cover F Stripper Pad
47 019-11831-100 *Base F Stripper Pad
48 019-11833-006 *Stripper Pad 70
49 635-00002-001 *Stepped Screw:6X2.2 M4X2.5
50 023-12427-101 *Bracket Hook Stripper Pressure
51 023-12409-308 *Worm Gear Box Stripper Unit
52 023-12405-108 *Adjuster Dial Stripper Unit
53 030-14480-004 Tube 3x5
54 046-12501-004 *Cover Paper Sensor (Upper)
55 046-12502-000 *Cover Paper Sensor (Lower)
56 444-32006-007 *Sensor OF-11T-N23 (Lower)
57 046-12704-002 *Junction Harness Paper Sensor (Lower)
58 046-12703-006 *Wire Harness Paper Sensor (Lower)

Drum Area (1)

Drum Area (1)

Ref. Партс код Наименование Примечание
1 023-17048-141 Drum Frame Front
2 023-17045-100 Slide Shaft
3 023-17207-002 Bracket Drum Lever
4 023-17095-000 Drum Lever
5 023-17135-206 Drum Handle Cover
6 023-17154-103 Bracket Drum Lock
7 023-17138-205 Shaft Drum Lock Plate
8 023-17161-002 link Plate Drum Lock
9 023-17162-106 link Shaft Drum Lock
10 023-17136-008 Plate Drum Lock
11 635-17523-102 Stepped Screw Dia.5X2 M3X3
12 023-17177-103 Spring Drum Lock link
13 023-17175-003 Bracket Drum-PCB
14 046-17178-007 Drum PCB II
15 046-17100-008 Wire Harness Drum Drawer U
16 023-17144-000 Spring Drawer Connector
17 635-10009-101 Stepped Screw F5X26 M3X4
18 023-17192-005 Stay Drum Frame Front
19 023-17159-504 B Pos. Lock Lever
20 023-17244-005 Cover B Position Lock Lever
21 023-17273-005 B Position Lock Chip
22 023-17054-001 Lock Spring B Pos.
23 023-17046-106 Side Frame Drum
24 023-17092-000 Drum Guide
25 023-17044-200 Drum Frame Rear
26 023-17176-000 Cover Rear Handle
27 023-17094-003 liner Pom Rear Frame Drum
28 023-17091-209 Cover Front Frame Drum
29 023-17302-005 Seal Drum Set Position
30 023-17301-009 Seal Setting Cartridge
31 023-17307-007 B Position Marking Sticker
32 023-17306-205 Seal Ink Color
32 023-17320-003 Seal Ink Black
33 023-17321-409 Seal Drum Type
34 023-17403-006 Adj. Plate Drum Lock
35 635-10011-106 Stepped Screw F5X2 M3X3:SG

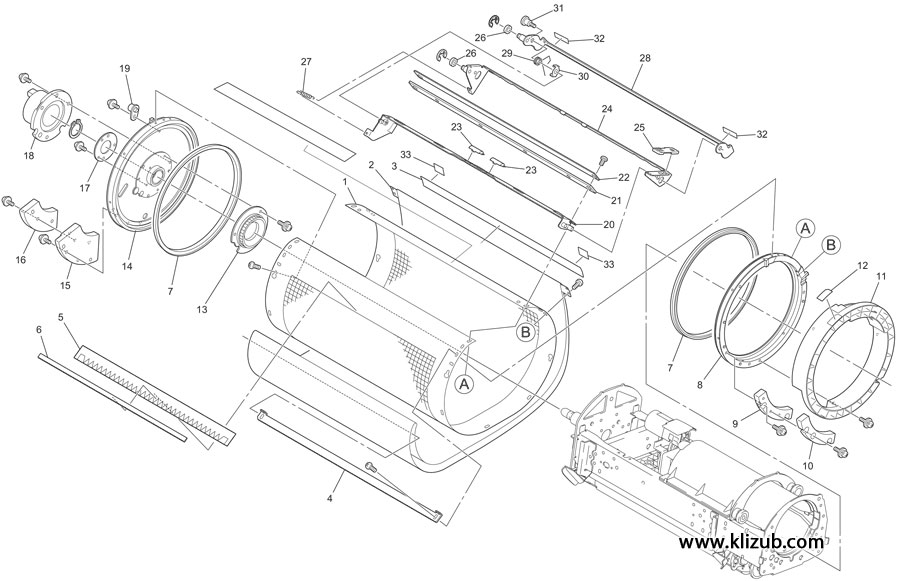

Drum Area (2)

Drum Area (2)

Ref. Партс код Наименование Примечание
  023-75112-259 Clamp Plate Assy(20-32)
1 023-75061-255 Drum Body L A3 SU 37x,57x,
1 023-75063-258 Drum Body L Ledger SU 39x,59x,
1 023-75062-251 Drum Body L A4 SU 30x
1 023-75067-253 Drum Body B4 ML SU 33x
1 023-75068-055 Drum Body A4W option
1 023-75064-254 Drum Body B4LL 23x
1 023-75066-257 DRUM BODY LG 22x
1 023-75065-153 Drum Body A4TLL 20x
2 023-17297-141 Screen Assy L
3 023-17004-306 Light Absorber Strip(328X18)
4 023-17003-008 Hanger Plate Screen
5 023-17345-006 Ink Blocking Sheet A3 37x,39x,57x,59x
5 023-17189-101 Ink Blocking Sheet B4 33x
5 023-17409-306 Ink Blocking Sheet B4LL 23x
5 023-17190-100 Ink Blocking Sheet A4 30x
5 023-17412-102 Ink Blocking Sheet A4LL 22x,20x
6 023-17256-046 Seal Tape A3 37x,39x,57x,59x
6 023-17257-042 Seal Tape B4 33x
6 023-17415-004 Seal Tape B4LL 23x
6 023-17258-006 Seal Tape A4 22x,20x,30x
7 023-17007-003 Drum Seal
8 023-17012-104 Flange Front
9 023-17014-204 Weight Balance F A
10 023-17262-208 Weight Balance F B
11 023-17149-002 Flange Handle
12 023-17307-007 B Position Marking Sticker
13 023-17009-006 Flange Gear Drum
14 023-17006-201 Drum Flange Rear
15 023-17011-205 Weight Balance R A
16 023-17261-201 Weight Balance R B
17 023-17263-000 Metal Stopper Drum
18 023-17008-107 Drum Shaft Joint
19 023-17010-004 Boss A Position Compensation
20 023-17067-308 *Clamp Plate Base
21 023-17181-100 *Clamp Magnet
22 023-17180-007 *Friction Sheet
23 023-17251-001 *Spring Clamp Plate Base
24 023-17068-207 *Clamp Plate
25 023-17191-203 *Release Lever Clamp Plate
26 023-17069-009 *Collar D12 Clamp
27 023-17275-008 *Spring Clamp Plate Close
28 023-17071-208 *Projection Plate
29 023-17073-103 *Spring Projection Plate
30 023-17187-001 *Master Release Arm Clamp
31 635-10008-105 *Stepped Screw F6X5 M3X5
32 023-17342-007 *Sheet Clamp Plate Base
33 023-17344-204 Light Absorber Strip(65X18)
34 023-17424-003 Tape Drum Body Joint 335X30

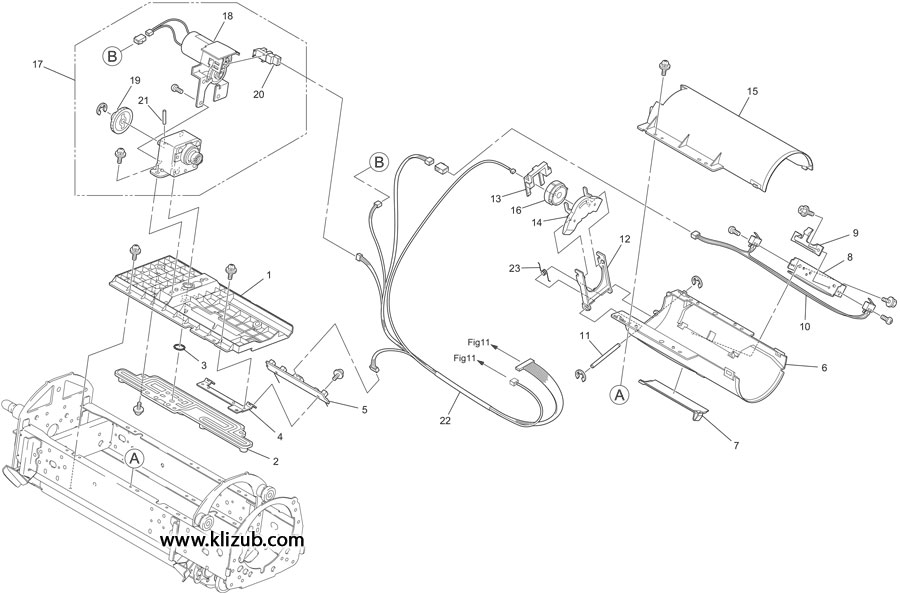

Drum Area (3)

Drum Area (3)

Ref. Партс код Наименование Примечание
  046-75037-057 Bottle Guide Assy 2(6-16,23)
1 023-17025-206 Bottle Stay
2 030-16404-003 Ink Distributor 37x,39x,57x,59x
2 023-17212-006 Ink Distributor A4 33x,30x,2xx
3 640-60100-100 O Ring P10-2.4
4 023-17254-000 Ground Plate Ink
5 444-51005-003 Ink-Sensor-PCB A3 37x,39x,57x,59x
5 444-51006-000 Ink-Sensor-PCB B4 33x,30x,2xx
6 023-17155-207 *Cartridge Guide Lower
7 023-17160-006 *Maintenance Cap
8 023-17158-109 *Bracket Ink Bottle Set SW
9 023-17157-102 *Bottle Catch
10 023-17026-105 *Bottle Set SW Assy
11 023-17249-104 *Shaft Rf-Tag Reader Drum
12 046-17009-000 *ARM RF Module
13 046-17017-003 *Module Holder R Drum
14 046-17008-004 *Module Holder F Drum
15 046-17010-009 *Cartridge Guide Upper
16 444-59008-001 *RF Module B5J-0171
17 023-17145-309 Ink Pump Assy(18-21)
18   *Ink Motor Assy
19 612-12306-001 *Gear M1x32x4
20 444-30008-002 *Sensor LG-248NL1
22 046-17101-004 Wire Harness Drum U (G)
23 023-17250-005 *Spring Rf-Tag Reader Drum

Drum Area (4):A3/Ledger models EZ590, 570, 390, 370

Drum Area (4): A3/Ledger models EZ590, 570, 390, 370

Ref. Партс код Наименование Примечание
  023-75090-158 Squeegee Unit A3(16-32,35)
1 023-75164-151 Main Frame Drum
2 023-17116-007 Flange Support Roller Drum
3 023-17197-007 Lock Ring 4
4 024-17027-001 S-GAP CAM
5 023-17294-002 Fixing Plate Drive Shaft A3
6 635-00003-008 Stepped Screw F6X3 M4X4
7 023-17018-005 Center Shaft Drum
8 612-10026-001 Gear M1X45X6
9 023-17229-006 Base Ink Blocking Plate (Front)
10 023-17227-003 Ink Blocking Plate Front
11 015-36317-305 Shaft Screw Ink Blocking Plate
12 635-17433-103 Step Screw
13 015-36318-000 Spring Ink Blocking Plate
14 023-17228-000 Base Ink Blocking Plate (Rear)
15 023-17226-007 Ink Blocking Plate Rear
16 023-17030-242 *Squeegee Roller
17 023-17329-108 *Doctor Roller Assy A3
18 023-17035-104 *Ink Drive Shaft
19 023-17041-147 *Block F Squeegee
20 607-03001-001 *Metal S4X7X2
21 640-60040-000 *O Ring P4-1.9
22 024-17126-107 *Side Frame Squeegee F Assy
23 023-17334-209 *Adj. Plate R Squeegee Gap
24 023-17336-201 *Adj. Plate L Squeegee Gap
25 612-10027-008 *Gear M0.8X19X4
26 612-10028-101 *Gear M0.8X43X3
27 024-17125-100 *Side Frame Squeegee R Assy
28 023-17040-140 *Block R Squeegee
29 612-10024-106 *Gear M1x25x7 OWC
30 639-00004-003 *Sheet Squeegee Roller
31 639-00003-007 *P Washer 8X18.5X1
32 023-17423-007 *Plate P-washer
33 023-17333-008 Spring Doctor Roller
34 665-02044-002 Wire Saddle LWS-0711
35 639-00005-000 *P Washer 8X16X0.4

 Drum Area (4) B4 models EZ-330, 230

Drum Area (4) B4 models EZ-330, 230

Ref. Партс код Наименование Примечание
  023-75091-154 Squeegee Unit B4(16-36)
1 023-75164-151 Main Frame Drum
2 023-17116-007 Flange Support Roller Drum
3 023-17197-007 Lock Ring 4
4 024-17027-001 S-GAP CAM
5 023-17246-008 Fixing Plate Drive A4
6 635-00003-008 Stepped Screw F6X3 M4X4
7 023-17018-005 Center Shaft Drum
8 612-10026-001 Gear M1X45X6
9 023-17229-006 Base Ink Blocking Plate (Front)
10 023-17227-003 Ink Blocking Plate Front
11 015-36317-305 Shaft Screw Ink Blocking Plate
12 635-17433-103 Step Screw
13 015-36318-000 Spring Ink Blocking Plate
14 023-17228-000 Base Ink Blocking Plate (Rear)
15 023-17226-007 Ink Blocking Plate Rear
16 023-17230-241 *Squeegee Roller B4
17 023-17330-106 *Doctor Roller Assy B4
18 023-17239-109 *Ink Drive Shaft B4
19 023-17041-147 *Block F Squeegee
20 607-03001-001 *Metal S4X7X2
21 640-60040-000 *O Ring P4-1.9
22 024-17126-107 *Side Frame Squeegee F Assy
23 023-17336-201 *Adj. Plate L Squeegee Gap
24 612-10027-008 *Gear M0.8X19X4
25 612-10028-101 *Gear M0.8X43X3
26 024-17125-100 *Side Frame Squeegee R Assy
27 023-17040-140 *Block R Squeegee
28 612-10024-106 *Gear M1x25x7 OWC
29 023-17334-209 *Adj. Plate R Squeegee Gap
30 023-17235-308 *Support Bracket F B4
31 023-17234-204 *Support Bracket R B4
32 023-17242-002 *Plate Metal Drive Shaft Drum
33 023-17421-004 *Support Plate A
34 023-17422-000 *Support Plate B
35 639-00004-003 *Sheet Squeegee Roller
36 639-00003-007 *P Washer 8X18.5X1
37 665-02044-002 Wire Saddle LWS-0711
38 023-17333-008 Spring Doctor Roller

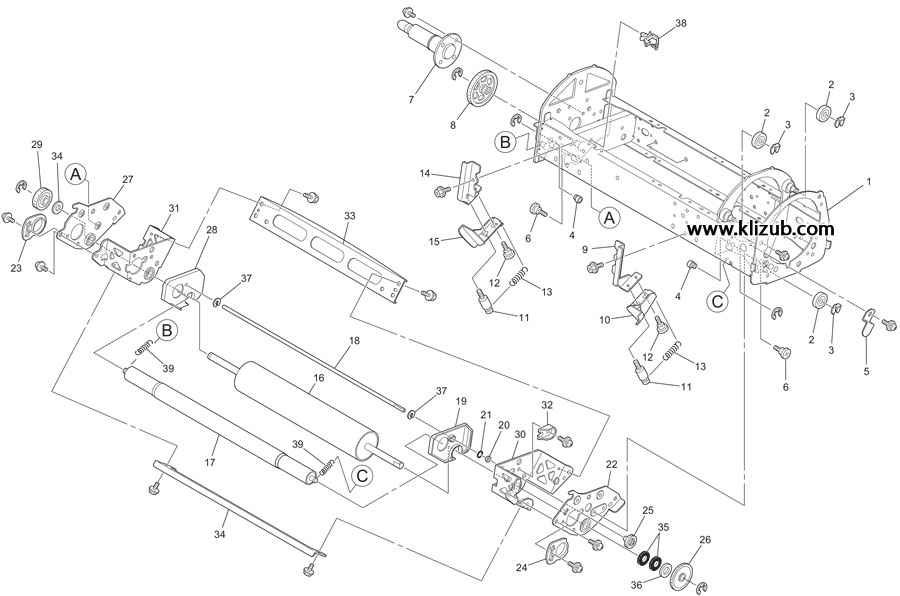

Drum Area (4) A4/Legal/Letter models EZ300, 200, 220

Drum Area (4) A4/Legal/Letter models EZ300, 200, 220

Ref. Партс код Наименование Примечание
  023-75092-150 Squeegee Unit A4(16-37)
1 023-75164-151 Main Frame Drum
2 023-17116-007 Flange Support Roller Drum
3 023-17197-007 Lock Ring 4
4 024-17027-001 S-GAP CAM
5 023-17246-008 Fixing Plate Drive A4
6 635-00003-008 Stepped Screw F6X3 M4X4
7 023-17018-005 Center Shaft Drum
8 612-10026-001 Gear M1X45X6
9 023-17229-006 Base Ink Blocking Plate (Front)
10 023-17227-003 Ink Blocking Plate Front
11 015-36317-305 Shaft Screw Ink Blocking Plate
12 635-17433-103 Step Screw
13 015-36318-000 Spring Ink Blocking Plate
14 023-17228-000 Base Ink Blocking Plate (Rear)
15 023-17226-007 Ink Blocking Plate Rear
16 023-17209-200 *Squeegee Roller A4
17 023-17331-102 *Doctor Roller Assy A4
18 023-17211-107 *Ink Drive Shaft A4
19 023-17041-147 *Block F Squeegee
20 607-03001-001 *Metal S4X7X2
21 640-60040-000 *O Ring P4-1.9
22 024-17126-107 *Side Frame Squeegee F Assy
23 023-17336-201 *Adj. Plate L Squeegee Gap
24 612-10027-008 *Gear M0.8X19X4
25 612-10028-101 *Gear M0.8X43X3
26 024-17125-100 *Side Frame Squeegee R Assy
27 023-17040-140 *Block R Squeegee
28 612-10024-106 *Gear M1x25x7 OWC
29 023-17334-209 *Adj. Plate R Squeegee Gap
30 023-17213-304 *Support Bracket F A4
31 023-17214-203 *Support Bracket R A4
32 023-17242-002 *Plate Metal Drive Shaft Drum
33 023-17421-004 *Support Plate A
34 023-17422-000 *Support Plate B
35 639-00004-003 *Sheet Squeegee Roller
36 639-00003-007 *P Washer 8X18.5X1
37 023-17341-000 *Collar Ink Drive Shaft
38 665-02044-002 Wire Saddle LWS-0711
39 023-17333-008 Spring Doctor Roller

Drum-Rail Area

Drum-Rail Area

Ref. Партс код Наименование Примечание
  023-75134-058 Drum Lock Assy(10-19)
1 023-17063-302 Slide Rail
2 023-17062-101 Drum Support Left Rail
3 023-17061-105 Drum Support Right Rail
4 023-17140-102 Pre-Pressure Spring Left Drum
5 023-17139-104 Pre-Pressure Spring Right Drum
6 023-17060-206 Bridge Drum Rail
7 023-17203-201 Right Guide Drum Frame Front
8 023-17204-208 Left Guide Drum Frame Front
9 023-17302-005 Seal Drum Set Position
10 023-17087-201 *Drum Lock Base
11 490-50006-009 *Solenoid Tds-10A-1056
12 023-17132-100 *Shaft Drum Solenoid Lever
13 023-17131-200 *Drum Solenoid Lever
14 023-17082-005 *Spring Drum Lock
15 023-28403-105 *Spring Safety SW /Drum&Mm
16 023-28404-004 *Bracket M.-M. Unit set SW
17 023-53024-003 *Drum Safety SW
18 023-17164-109 *Bracket Drum Lock Sensor
19 444-30008-100 *Sensor LG-248Nl1
20 023-17133-106 Bracket Drawer Connector Drum
21 046-53018-008 Wire Harness Drum Drawer H (G)
22 046-17004-009 Base Bracket B Position Lock
23 046-17003-002 Guide B Position Lock Release
24 030-16108-005 Shaft Holder Right
25 030-16109-001 Shaft Holder Left
26 046-53015-009 Wire Harness Lower F (G)
27 023-17400-007 Guide Front Cover
28 046-53016-005 Wire Harness Lower R (G)

Clamp Area

Clamp Area

Ref. Партс код Наименование Примечание
  046-75015-070 Clamp Unit II(1-11)
  023-75070-050 *Clamp Motor Assy(4-8)
1 046-75006-070 *Clamp Cam Assy II(2-3)
2 612-12315-000 **Gear M1X31X6
3 023-75152-056 **Disc Clamp Sensor Assy
4 023-26000-003 **Bracket plate Clamp drive
5 612-11304-005 **Gear M0.8X37+M1X15
6 612-81303-006 **Gear M0.8X35+M0.8X15
7 030-19205-001 **Support Clamp Worm
8 023-74001-054 **Motor Assy (CWRS-445PA)
9 023-26005-005 *Bracket Clamp Sensor
10 444-30008-100 *Sensor LG-248Nl1
11 023-26018-000 *Wire Harness Clamp Unit

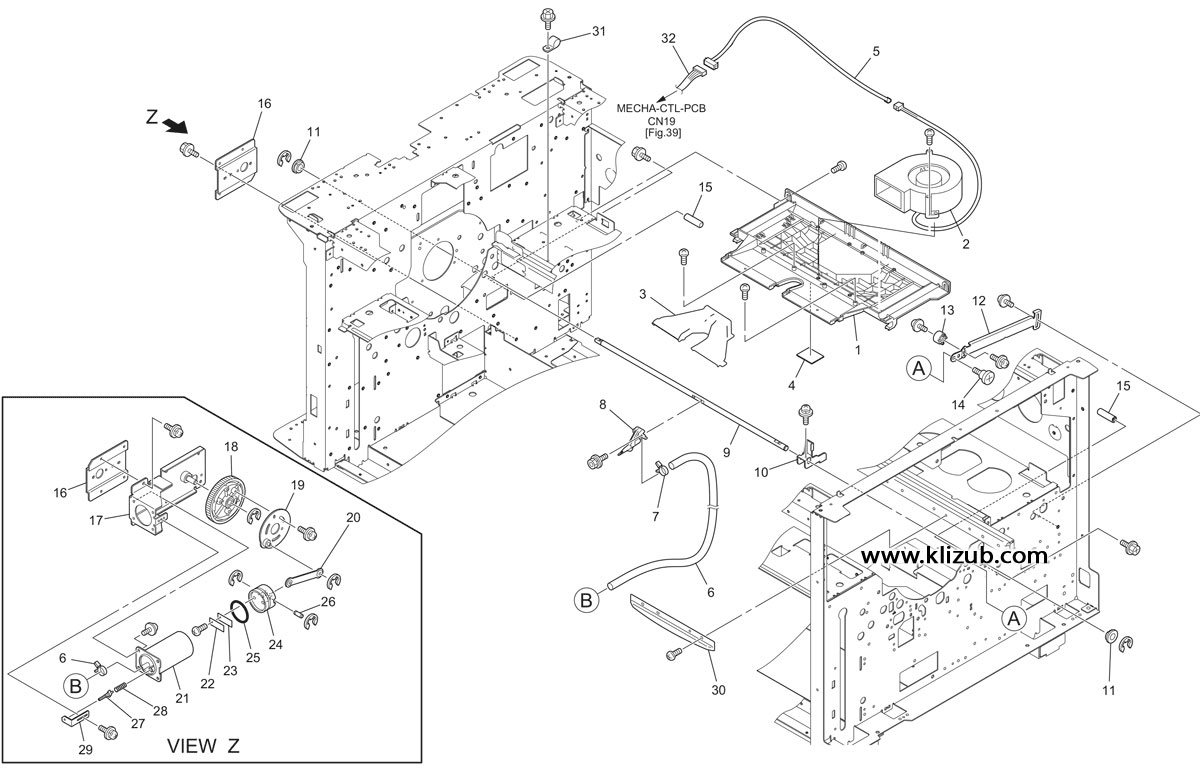

 Separation Area (EZ5x0, 3x0)

Separation Area (EZ5x0, 3x0)

Ref. Партс код Наименование Примечание
  046-75012-070 Separation Fan Assy II(1-5)
  023-75077-151 Air Pump Assy(17-29)
1 023-21017-200 *Base Separation Fan
2 490-41014-007 *Fan E1033H24BYAZ-33
3 046-21018-006 *Air Nozzle
4 023-21393-007 *light Absorber Strip(35X28)
5 046-21800-103 *Wire Harness Separation Fan
6 023-21016-106 Air Hose Separator
7 665-02901-100 Power Band T10
8 023-21002-008 Separator
9 023-21006-100 Shaft Separator
10 023-21007-000 Release Lever Separator
11 607-15000-000 Metal F8X13/12X5 16X2
12 023-21003-004 Adjustment Plate
13 023-21005-007 Stopper Separator
14 635-17614-205 Stepped Screw 6X1.7 M4X4
15 020-13114-300 Fixing Pin
16 023-21027-000 Spacer Cylinder Base Air Pump
17 023-21013-409 *Cylinder Base Bracket Air pump
18 612-03106-105 *Gear M1X80X10
19 023-21023-200 *Timing Plate Air Pump
20 019-13511-200 *Arm Air Pump
21 023-21021-002 *Cylinder Air Pump
22 019-13517-004 *Cylinder Valve ll Air Pump
23 019-13518-000 *Cylinder Valve Sheet Air Pump
24 019-13516-105 *Piston Head ll Air Pump
25 640-67340-009 *O Ring 34-3.6
26 019-13512-002 *Arm Shaft Air Pump
27 023-21011-104 *Adj. Valve Air blow
28 023-21010-000 *Spring Adj. Valve Air Blow
29 023-21009-002 *Adj. Plate Air blow
30 023-21001-001 Release Plate
31 665-02021-606 Nylon Clip NK-10N
32 046-53004-007 Wire Harness Paper Ejection Rear

Separation Area (EZ2x0)

Separation Area (EZ2x0)

Ref. Партс код Наименование Примечание
  046-75032-071 Separation Fan Assy II LL(1-5)
  023-75077-151 Air Pump Assy(17-29)
1 023-21017-200 *Base Separation Fan
2 490-41014-007 *Fan E1033H24BYAZ-33
3 046-21020-000 *Air Nozzle A4
4 023-21393-007 *light Absorber Strip(35X28)
5 046-21802-106 *Wire Harness Separation Fan LL
6 023-21016-106 Air Hose Separator
7 665-02901-100 Power Band T10
8 023-21002-008 Separator
9 023-21006-100 Shaft Separator
10 023-21007-000 Release Lever Separator
11 607-15000-000 Metal F8X13/12X5 16X2
12 023-21003-004 Adjustment Plate
13 023-21005-007 Stopper Separator
14 635-17614-205 Stepped Screw 6X1.7 M4X4
15 020-13114-300 Fixing Pin
16 023-21027-000 Spacer Cylinder Base Air Pump
17 023-21013-409 *Cylinder Base Bracket Air pump
18 612-03106-105 *Gear M1X80X10
19 023-21023-200 *Timing Plate Air Pump
20 019-13511-200 *Arm Air Pump
21 023-21021-002 *Cylinder Air Pump
22 019-13517-004 *Cylinder Valve ll Air Pump
23 019-13518-000 *Cylinder Valve Sheet Air Pump
24 019-13516-105 *Piston Head ll Air Pump
25 640-67340-009 *O Ring 34-3.6
26 019-13512-002 *Arm Shaft Air Pump
27 023-21011-104 *Adj. Valve Air blow
28 023-21010-000 *Spring Adj. Valve Air Blow
29 023-21009-002 *Adj. Plate Air blow
30 023-21001-001 Release Plate
31 665-02021-606 Nylon Clip NK-10N
32 046-53017-001 Wire Harness Paper Feed Rear LL

Suction Area EZ5x0

Suction Area EZ5x0

Ref. Партс код Наименование Примечание
  046-75007-077 Suction Unit II ML(1-44)
1 020-13116-205 *P.-E. Pulley Suction
2 023-21361-202 *Shaft Belt Driven Pulley
3 629-00002-004 *Flat Belt 15X0.65X519
4 023-21322-100 *M Wing Front
5 023-21324-102 *S Wing Front
6 023-21335-104 *Shaft Wing Front
7 023-21328-108 *Spring Wing Front
8 023-21332-202 *Spring Wing Rear
9 023-21321-103 *M Wing Rear
10 023-21323-106 *S Wing Rear
11 023-21325-109 *Shaft Wing Rear
12 023-21371-100 *Roller Plate Transfer Belt
13 017-13216-000 *Belt Roller Suction
14 023-21329-104 *link Plate S Wing
15 023-21331-001 *link Plate M Wing
16 607-13000-402 *Metal F6X10/9X6:12 X 1.5
17 023-21351-207 *Drive Shaft Suction
18 030-15249-004 *Roller (Inner) Transfer Belt
19 611-90002-003 *Pulley P40S2M60
20 621-00003-002 *Belt 40-S2M-138
21 023-21401-000 *Bracket Paper Receiving sensor
22 444-33012-000 *Sensor GP2A210LCSJF
23 023-21703-006 *Wire Harness Ejection Sensor
24 023-21304-004 *Face Cover Suction
25 023-21302-109 *Suction Box Suction
26 023-74002-050 *Suction Motor Ccwrs-55PH
27 023-21342-305 **Metal Slit Motor
28 444-30008-100 *Sensor LG-248Nl1
29 490-41014-007 *Fan E1033H24BYAZ-33
30 046-21801-100 *Wire Harness Suction Unit
31 046-21301-000 *Base Frame Suction
32 023-21406-001 *Boss Wing cam shaft F6x9x6:12x1.5
33 023-21410-009 *W cam shaft Wing
34 023-21408-004 *MW cam Wing
35 612-30001-005 *Helical gear M1x16x6
36 023-21409-108 *SW cam Wing
37 023-21404-106 *Base Bracket Wing motor
38 490-33015-100 *Motor PM42L-048-ZVN6
39 612-50005-007 *Worm gear M1x12x1
40 023-21411-102 *W drive shaft Wing motor
41 612-10035-000 *Gear M0.5x21x6
42 444-30008-100 *Sensor LG-248Nl1
43 023-21384-008 *Cover plate suction cover
44 046-21302-006 *Support Plate Suction
45 045-21316-000 De-electricity Brush 180
46 023-21801-008 Seal Folding Tray Inst. P.-Rcv.-T.
47 020-13114-300 Fixing Pin
48 023-21391-101 Mount Bracket Front Suction Unit
49 023-21392-108 Mount Bracket Rear Suction Unit
50 023-21381-300 Cover Plate Suction
51 046-53004-007 Wire Harness Paper Ejection Rear

 Suction Area EZ3x0

Suction Area EZ3x0

Ref. Партс код Наименование Примечание
  046-75023-072 Suction Unit II L(1-29,31-35)
1 020-13116-205 *P.-E. Pulley Suction
2 023-21361-202 *Shaft Belt Driven Pulley
3 629-00002-004 *Flat Belt 15X0.65X519
4 023-21322-100 *M Wing Front
5 023-21324-102 *S Wing Front
6 023-21335-104 *Shaft Wing Front
7 023-21328-108 *Spring Wing Front
8 023-21332-202 *Spring Wing Rear
9 023-21321-103 *M Wing Rear
10 023-21323-106 *S Wing Rear
11 023-21325-109 *Shaft Wing Rear
12 023-21371-100 *Roller Plate Transfer Belt
13 017-13216-000 *Belt Roller Suction
14 023-21329-104 *link Plate S Wing
15 023-21331-001 *link Plate M Wing
16 607-13000-402 *Metal F6X10/9X6:12 X 1.5
17 023-21351-207 *Drive Shaft Suction
18 030-15249-004 *Roller (Inner) Transfer Belt
19 611-90002-003 *Pulley P40S2M60
20 621-00003-002 *Belt 40-S2M-138
21 023-21401-000 *Bracket Paper Receiving sensor
22 444-33012-000 *Sensor GP2A210LCSJF
23 023-21703-006 *Wire Harness Ejection Sensor
24 023-21304-004 *Face Cover Suction
25 023-21302-109 *Suction Box Suction
26 023-74002-050 *Suction Motor Ccwrs-55PH
27 023-21342-305 **Metal Slit Motor
28 444-30008-100 *Sensor LG-248Nl1
29 490-41014-007 *Fan E1033H24BYAZ-33
30 046-21803-005 Wire Harness Suction unit L/LL
31 046-21301-000 *Base Frame Suction
32 023-21382-005 *Wing Cam Suction
33 023-21383-001 *Wing Knob Suction
34 023-21385-101 *Support Wing Knob Suction
35 046-21302-006 *Support Plate Suction
36 023-21801-008 Seal Folding Tray Inst. P.-Rcv.-T.
37 023-21806-000 Seal Jump Wing Inst Metric
37 023-21807-006 Seal Jump Wing Inst Inch
38 020-13114-300 Fixing Pin
39 023-21391-101 Mount Bracket Front Suction Unit
40 023-21392-108 Mount Bracket Rear Suction Unit
41 023-21381-300 Cover Plate Suction
42 045-21316-000 De-electricity Brush 180
43 046-53004-007 Wire Harness Paper Ejection Rear

Suction Area EZ2x0

Suction Area EZ2x0

Ref. Партс код Наименование Примечание
  046-75025-075 Suction Unit II LL(1-19)
1 020-13116-205 *P.-E. Pulley Suction
2 023-21361-202 *Shaft Belt Driven Pulley
3 629-00002-004 *Flat Belt 15X0.65X519
4 607-13000-402 *Metal F6X10/9X6:12 X 1.5
5 023-21351-207 *Drive Shaft Suction
6 030-15249-004 *Roller (Inner) Transfer Belt
7 611-90002-003 *Pulley P40S2M60
8 621-00003-002 *Belt 40-S2M-138
9 023-21401-000 *Bracket Paper Receiving sensor
10 444-33012-000 *Sensor GP2A210LCSJF
11 023-21703-006 *Wire Harness Ejection Sensor
12 023-21304-004 *Face Cover Suction
13 023-21302-001 *Suction Box Suction
14 023-74002-050 *Suction Motor Ccwrs-55PH
15 023-21342-100 **Metal Slit Motor
16 444-30008-100 *Sensor LG-248Nl1
17 490-41014-007 *Fan E1033H24BYAZ-33
18 046-21301-000 *Base Frame Suction
19 046-21311-005 *Bracket Fix Wing
20 046-21803-005 Wire Harness Suction unit L/LL
21 023-21384-008 Cover plate suction cover
22 023-21381-300 Cover Plate Suction
23 045-21316-000 De-electricity Brush 180
24 023-21801-008 Seal Folding Tray Inst. P.-Rcv.-T.
25 020-13114-300 Fixing Pin
26 023-21391-101 Mount Bracket Front Suction Unit
27 023-21392-108 Mount Bracket Rear Suction Unit
28 046-53017-001 Wire Harness Paper Feed Rear LL
29 023-21334-108 Fix Wing F
30 023-21333-101 Fix Wing R

Paper Receiving Tray Area EZ5x0, 3x0

Paper Receiving Tray Area EZ5x0, 3x0

Ref. Партс код Наименование Примечание
  023-75095-150 P.-Rcv.-T Unit(1-23)
  023-75147-052 *Flap P.-Rcv.T. Assy(11-14)
1 023-21608-003 *Back Stopper P.-RCV.-T
2 018-33151-408 *Fence Cushion
3 023-21634-101 *Shaft Fence
4 023-21635-108 *Slide Base P.Rcv.-T.
5 023-21637-003 *Slide Plate(Lower) P.-Rcv.-T.
6 023-21638-107 *Plate Spring P.-Rcv.-T
7 023-21636-147 *Slide Plate(Upper) P.-Rcv.-T.
8 023-21621-000 *Lever Paper Guide P.-Rcv.-T.
9 023-21607-201 *Paper Guide R P.-Rcv.-T.
10 023-21606-205 *Paper Guide F P.-Rcv.-T.
11 023-21614-003 **Flap Cover P.-Rcv.-T.
12 023-21615-204 **Holder Flap P.Rcv.-T
13 023-21612-108 **Flap P.-Rcv.-T
14 023-21613-007 **Balancer Flap P.-RCV.-T.
15 023-21639-006 *Slide Rail Paper Guide P.-Rcv.-T.
16 023-21640-004 *Slide Rail Paper Stopper P.-Rcv.-T.
17 023-21603-508 *Side Frame R P.-Rcv.-T.
18 023-21602-501 *Side Frame F P.-Rcv.-T.
19 023-21633-105 *Ground Plate Slide Rail P.Rcv.-T.
20 023-21601-106 *Paper Receiving Tray
21 023-21802-004 *Seal P.-Pcv.-T:Folding Pic
22 023-21643-003 *Bracket Magnet Catch P.-Rcv.-T.
23 660-00002-004 *Magnet Catch SM50-P

Paper Receiving Tray Area EZ2x0

Paper Receiving Tray Area EZ2x0

Ref. Партс код Наименование Примечание
  023-75096-156 P.-Rcv.-T Unit LL(1-22)
1 023-21608-003 *Back Stopper P.-RCV.-T
2 018-33151-408 *Fence Cushion
3 023-21634-101 *Shaft Fence
4 023-21635-108 *Slide Base P.Rcv.-T.
5 023-21637-003 *Slide Plate(Lower) P.-Rcv.-T.
6 023-21638-107 *Plate Spring P.-Rcv.-T
7 023-21636-147 *Slide Plate(Upper) P.-Rcv.-T.
8 023-21621-000 *Lever Paper Guide P.-Rcv.-T.
9 023-21607-201 *Paper Guide R P.-Rcv.-T.
10 023-21606-205 *Paper Guide F P.-Rcv.-T.
11 023-21650-000 *Paper Guiding Arm F
12 023-21651-006 *Paper Guiding Arm R
13 023-21652-002 *Shaft Paper Guiding Arm
14 023-21653-009 *Spring Paper Guiding Arm
15 023-21639-006 *Slide Rail Paper Guide P.-Rcv.-T.
16 023-21640-004 *Slide Rail Paper Stopper P.-Rcv.-T.
17 023-21603-508 *Side Frame R P.-Rcv.-T.
18 023-21602-501 *Side Frame F P.-Rcv.-T.
19 023-21633-105 *Ground Plate Slide Rail P.Rcv.-T.
20 023-21601-106 *Paper Receiving Tray
21 023-21643-003 *Bracket Magnet Catch P.-Rcv.-T.
22 660-05000-018 *Magnet Catch SM-77S

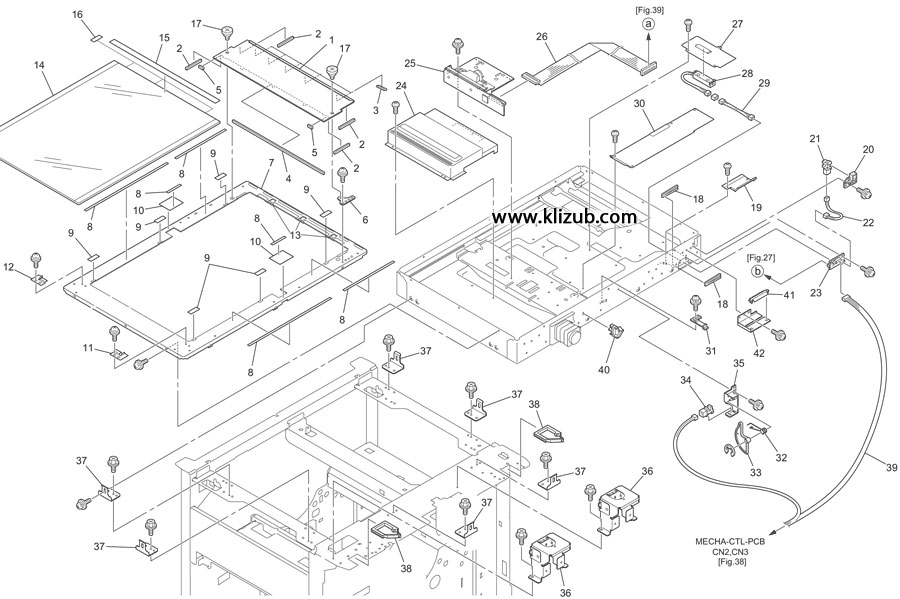

Scanner Area (1)

Scanner Area (1)

Ref. Партс код Наименование Примечание
  046-75059-000 Scanner Unit 300CA(Fig26-27)
  046-75056-000 *Original Stopper Assy(1-5)
  046-30067-001 *Assy S-FRM-UP-64(6-13)
  021-17504-002 *Stage Glass Assy(14-16)
  023-75167-150 FB Actuator Assy(32-35)
1 021-17568-205 **Blind Cover Guide
2 046-30062-000 **Sponge GID-FR
3 046-30063-006 **Sponge GID-S
4 021-17149-008 **SPNG-GID-UCN-L
5 021-17150-006 **SPNG-GID-UCN-S
6 021-17545-205 **Adj. Plate PLT-ADJ-GLASS
11 021-17531-107 **Sponge Spr-Glass-R
12 021-17530-100 **Sponge Spr-Glass-F
17 021-17525-000 *Screw Scr-M3-1.6
18 021-17517-007 *Sponge Spng-Ccd-Cable
19 021-17547-100 *Guide Plate Plt-Ccd-Cable2
20 021-17567-004 *Bracket HP-SENS Scanner
21 021-53141-102 *Sensor Tlp1241(C5)
22 021-51121-007 *Wire Harness ASM-H.Psens
23 021-50535-100 *PCB Pba-Chukei
24 046-30038-001 *Cover CVR-OPT
25 046-30068-008 *S-Assy S-CCD-UNIT-64-3V
26 046-30048-007 *Wire Harness ASM-MAIN-I/F-64
27 021-17543-105 *Cover Plate PLT-APS-SENS
28 021-53142-001 *Sensor Ey3A-1061
29 021-51122-100 *Wire Harness ASM-Emptysens
30 021-17544-101 *Plate Plt-Ccd-Cable Scanner
31 021-17569-007 *Guide Bracket Guide-Ffc-Frame
32 021-17129-104 *Spring Actuator
33 023-30073-007 *Actuator 2 Scanner
34 444-30008-100 *Sensor LG-248Nl1
35 023-30071-004 *Bracket Stage cover closing sensor
36 023-30002-100 Hinge Bracket Flat Bed
37 023-30003-009 Bracket FB Scanner
38 665-00308-002 Edging Saddle LES-25L
39 046-53008-002 Wire Harness FB Upper
40 033-15129-000 *Wire Saddle RLMC-05T-V0
41 665-00310-007 FFC Clamp FC-45
42 045-30008-008 Bracket Flat Cable Guide

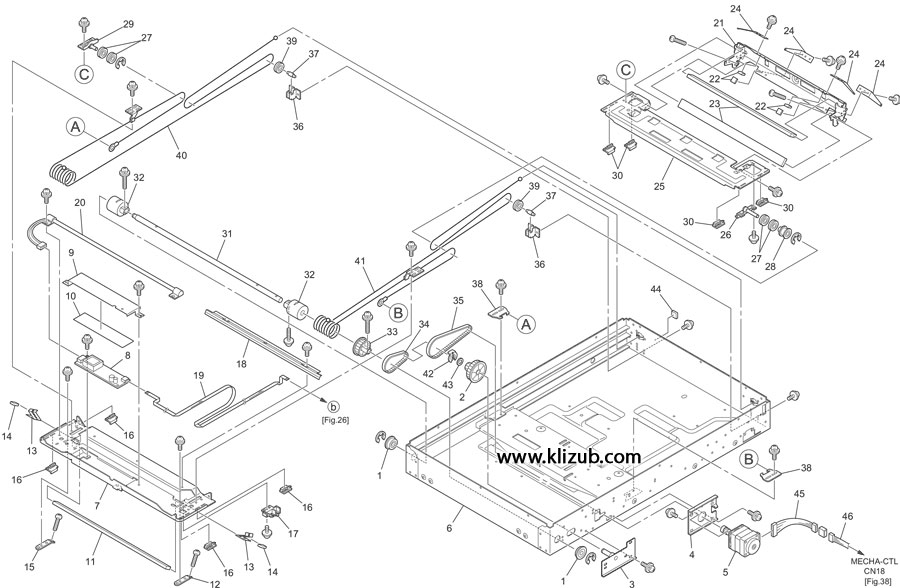

Scanner Area (2)

Scanner Area (2)

Ref. Партс код Наименование Примечание
  046-30069-004 *Assy ASY-CRG1-64(7-20)
  046-30044-001 *Assy ASY-CR2-64(21-30)
  046-30070-002 *Assy S-PLY-DRIVE(31-32)
1 045-30101-008 *Plastic Bearing RBB080160F
2 021-17575-007 *Pulley Ply-S1.5M-90-30
3 046-30045-008 *Bracket K-BKT-MOT-S
4 046-30023-004 *Bracket BKT-MOT-64B
5 021-53201-008 *Motor Kh42Jm2B154
8 021-50536-106 **Inverter Pws-Pxz170E4-B
9 021-17558-102 **Cover Inverter CVR-INV
10 021-17518-003 **Mylar Inverter Mlr-Inv
16 046-30064-002 **Slide Guide BUSH-SLIDE-64
18 021-17556-002 **Reflector
19 021-51123-000 **Wire Harness CBP-LMP
20 021-53143-105 **Lamp Uxfl-08Yg37P2
30 021-17564-005 **Slide Guide Slide-Bush Carriage
33 021-17574-000 *Pulley Ply-S1.5M-75
34 046-30019-007 *Belt ST1116040
35 046-30024-000 *Belt ST1173040
36 021-17540-106 *Bracket Pulley BKT-DV
37 021-17579-002 *Shaft Pulley Sft-Dv
38 021-17557-106 *Bracket BKT-WIRE-HOLD
39 021-17582-100 *Pulley Dv-19-H5-W0.25
40 021-17507-109 *Wire Front Wr-7X7-S-F
41 021-17508-105 *Wire Rear Wr-7X7-Z-R
42 046-30065-009 *Clip CLIP050140B
43 046-30066-005 *Washer WAS-082-120-050PW
44 046-30027-000 *Sponge SPNG-MIR2
45 024-53057-006 Wire Harness FB Pulse Motor
46 046-53008-002 Wire Harness FB Upper

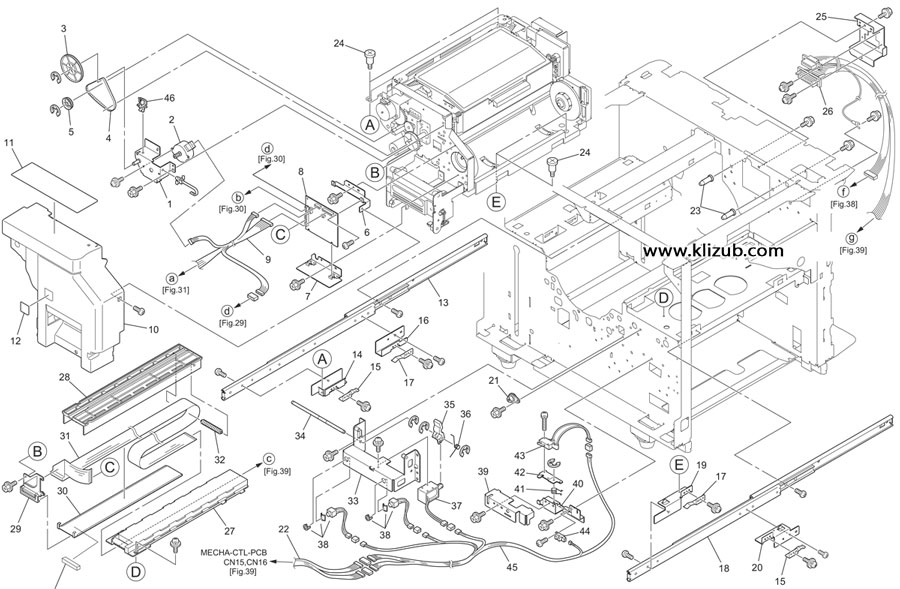

Master Making Area (1)

Master Making Area (1)

Ref. Партс код Наименование Примечание
  046-75027-078 Master Making Unit II TA3(G)(Fig28-31)
  046-75028-074 Master Making Unit II TB4(G)(Fig28-31)
  046-75029-070 Master Making Unit II TA4(G)(Fig28-31)
  046-75030-079 Master Making Unit II KB4(G)(Fig28-31)
  046-75031-075 Master Making Unit II KA4(G)(Fig28-31)
  023-75145-157 *Write Pulse Motor Assy SU (1-4)
1 023-28195-006 **Bracket Write Pulse Motor
2 490-33015-002 **Motor PM42L-048-ZVN6
3 613-10002-002 **Gear Pulley M0.5X130+17-2
4 620-80001-008 **Belt 256-2GT-4
4 620-80002-004 **BELT 230-2GT-4
5 611-90010-006 *Pulley Assy P40-2Gt-5
6 023-28016-004 *Bracket PCB
7 023-28401-005 *Bracket Bottom Master Making PCB
8 046-28001-206 *MASTER-MAKING-PCB
9 023-28239-208 *Wire Harness M.-M Unit
10 023-28222-003 Front Cover M.-M. Unit
11 023-28944-009 Seal Setting Master
12 023-28428-000 Seal Master Making Unit Cover
13 023-17063-000 Slide Rail
14 023-28001-007 Bracket Front Upper Rail
15 023-17139-104 Pre-Pressure Spring Right
16 023-28002-003 Bracket Rear Upper Rail
17 023-17140-102 Pre-Pressure Spring Left
18 023-28402-001 Slide Rail 2
19 023-28084-000 Bracket Front Bottom Rail
20 023-28012-009 Bracket Rear Bottom Rail
21 046-28003-004 Shaft Holder Left
22 046-53016-005 Wire Harness Lower R (G)
23 023-28086-002 Positioning Pin Rear
24 635-10004-002 Stepped Screw F5X5
25 023-28085-006 Bracket Drawer Connector
26 046-53014-002 TPH Drawer Connector H (G)
27 023-28199-001 Guide Lower Flexible Wire
28 023-28117-005 Guide Upper Flexible Wire
29 023-28010-006 Guide Bracket Wire Harness
30 023-28353-000 Holding Plate Wire Harness
31 023-28238-104 Flexible Wire M.-M
32 023-28200-000 Guide Roller Wire Harness
33 023-28003-000 Bracket Slide Lock
34 023-28122-106 Shaft Stopper
35 023-28121-002 Hook Stopper Handle
36 023-28339-008 Spring Stopper
37 490-50006-009 Solenoid Tds-10A-1056
38 021-51029-100 Push Button SW Assy
39 023-28119-008 Cover M.-M. Unit Safety SW
40 023-28202-100 Bracket M.-M. Unit Safety SW
41 023-28403-008 Spring Safety SW /Drum&Mm
42 023-28404-004 Bracket M.-M. Unit set SW
43 023-53025-000 Safety SW Assy M-M/M-Rmv Unit
44 444-30002-101 Sensor GP1A75ER
45 046-53015-009 Wire Harness Lower F (G)
46 481-30046-102 Gasket 55

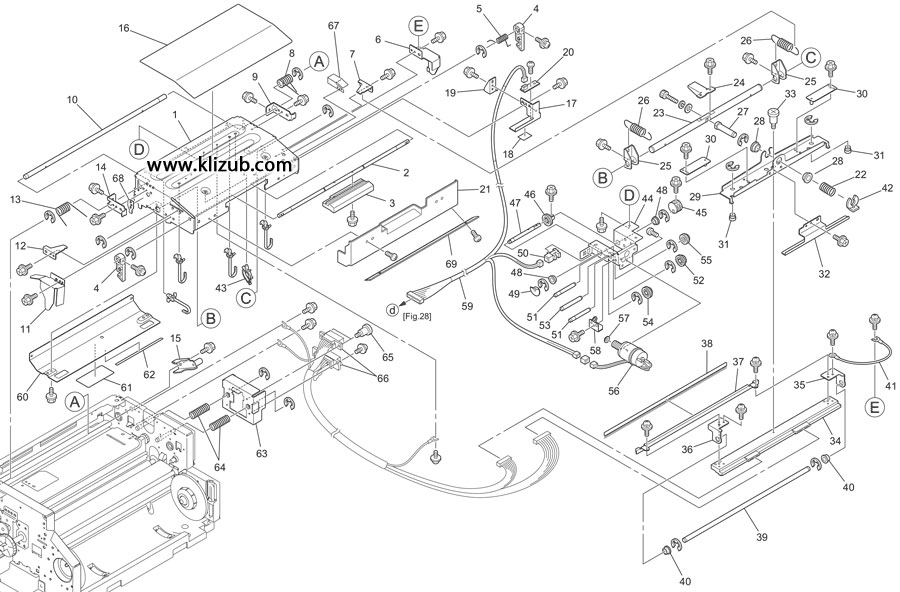

Master Making Area (2)

Master Making Area (2)

Ref. Партс код Наименование Примечание
  046-75002-059 *TPH Assy II TA3(29-41)
  046-75003-055 *TPH Assy II TB4(29-41)
  046-75020-057 *TPH ASSYII-KB4(29-41) 2xx
  023-75143-154 *TPH Pressure Motor Assy(44-55)
1 023-28150-304 *Frame M-M Upper Unit
2 023-28157-007 *Shaft Handle
3 023-28236-004 *Hook Lever M.-M Up
4 023-28237-000 *Hook M.-M Up
5 023-28356-000 *Hook Spring M.-M Up
6 023-28253-103 *Pushing Plate R Set-Guide Plate
7 023-28152-005 *Spring Hook Bracket Rear TPH Pressure
8 023-28156-000 *Spring Rear M.-M Up
9 023-28252-107 *Pivot Support Plate Rear M.-M Up
10 023-28154-105 *Shaft M.-M Upper Unit
11 046-28034-007 *Pushing Plate F2 Set-Guide Plate
12 023-28381-004 *Bracket Front TPH Pressure spring
13 023-28155-004 *Spring Front M.-M Up
14 023-28151-106 *Pivot Support Plate Front M.-M Up
15 023-28177-105 *Safety Stopper M.-M Up
16 023-28426-202 *Seal Master Making Unit
17 023-28418-005 *Upper Bracket A3 Master End Sensor
17 024-28177-005 *Upper Bracket B4 Master End Sensor
17 046-28036-000 *Upper Bracket A4 Master End Sensor
18 023-28431-001 *light Absorber Strip(21X15)
19 023-28427-004 *Cover Master End Sensor
20 444-42030-305 *Sensor (Rcv) KH0854-01
21 023-28162-000 *Bottom Cover TPH
22 023-28435-007 *Spring TPH Alignment Shaft
23 046-28008-006 *Pivot Shaft TPH
24 023-28160-008 *Pressure Release Plate TPH Press
25 023-28159-301 *Pressure Lever Bracket M.-M Up
26 023-28161-004 *TPH Pressure Spring 40 37x,39x,57x,59x
26 023-28441-104 *TPH Pressure Spring 30 33x
26 023-28344-109 *TPH Pressure Spring 23 2xx,30x
27 023-28173-100 *TPH Alignment Shaft
28 607-10008-003 *METAL F10X14X10
29 046-28005-007 **Holding Bracket TA3
29 046-28019-008 **Holding Bracket TB4
29 046-28032-004 **Set Plate TPH
30 023-28413-003 **TPH Pressure Assist Plate A3
30 023-28387-002 **TPH Pressure Assist Plate B4
31 023-28412-309 **TPH Boss
32 023-28315-206 **Protection Plate TPH connector TA3
32 023-28386-006 **Protection Plate TPH Connector KB4
33 635-10005-106 **Stepped Screw F6x7.2
34 444-80001-106 **TPH 303R11 37x,39x,57x,59x
34 444-80002-102 **TPH260R39 33x,30x
34 444-80004-008 **TPH256R51 2xx
35 023-28021-105 **Plate T-Rear TPH
35 023-28254-304 **PLATE K-REAR TPH
36 023-28022-101 **Plate T-Front TPH
36 023-28255-300 **PLATE K-FRONT TPH
37 023-28175-200 **Bracket TPH Brush
37 023-28298-107 **Bracket TPH Brush
37 023-28257-109 **BRACKET TPH BRUSH
38 023-28411-000 **De-electricity Brush TPH A3
38 023-28414-000 **De-electricity Brush TPH B4
39 023-28024-007 **Holding roller TA3
39 023-28299-006 **Holding roller TB4
39 023-28258-105 **HOLDING ROLLER KB4
40 607-10005-004 **Metal F8x10x3
41 488-90030-109 **Ground Wire U3-55-R3
42 019-11812-106 *Lock Ring
43 665-02043-006 *Wire Saddle LWS-1316
44 023-28168-106 **Bracket TPH pressure motor
45 023-28165-000 **Cam TPH Pressure
46 612-10010-008 **Gear M1X20X6
47 023-28166-006 **Shaft TPH Pressure Cam
48 607-13000-402 **Metal F6X10/9X6:12X1.5
49 023-28361-003 **Pressure Detection Plate TPH
50 444-30008-100 **Sensor LG-248Nl1
51 023-28213-004 **Shaft Gear
52 612-80006-008 **Gear M0.8X25+M0.8X14
53 023-28433-004 **Shaft Gear 8
54 612-80007-004 **Gear M0.8X25+M1X14
55 612-80008-000 **Gear M0.8X20+M0.8X14
56 023-74001-054 *Motor Assy (CWRS-445PA)
57 030-19205-001 *Support Clamp Worm
58 023-28172-006 *Holding Plate Worm Gear
59 023-28240-303 *Wire Harness M.-M Upper Unit
60 023-28328-103 *Gear Cover M.-M UP
61 023-28942-103 *Seal TPH Cleaning
62 023-28424-005 Seal TPH
62 023-28423-009 Seal TPH
63 023-28382-205 *Bracket TPH Drawer Connector UP
64 023-28078-000 *Spring Drawer Connecter
65 635-10002-000 *Stepped Screw F4X4.5
66 046-28037-006 *TPH Drawer Connector U (G)
67 046-28052-005 *Spacer 2 M.-M. Unit
68 046-28050-002 *Bracket M.-M. Unit SET SW
69 023-28410-004 *De-Electricity Brush A3

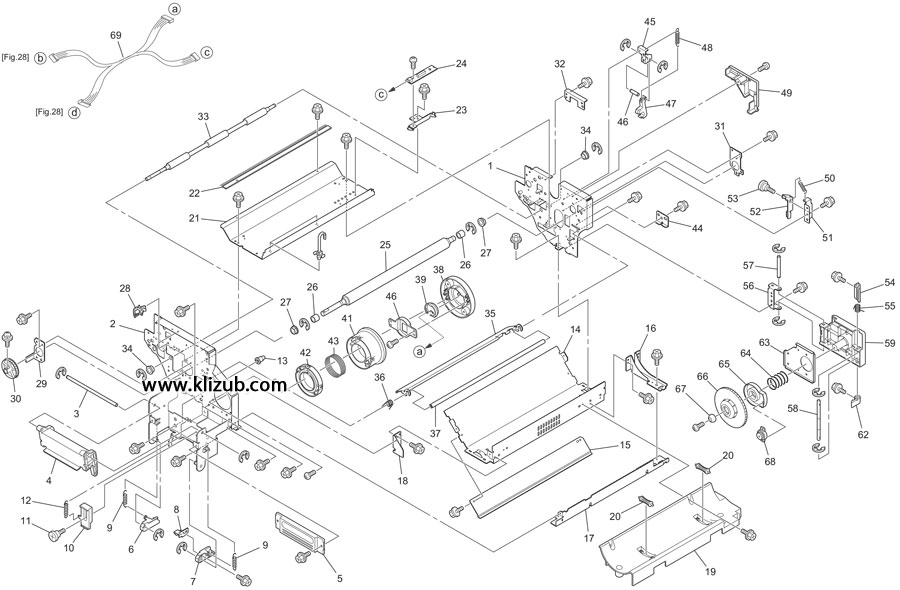

Master Making Area (3)

Master Making Area (3)

Ref. Партс код Наименование Примечание
  046-75016-076 *Write Roller Assy II A3(25-26) 37x,39x,57x,59x
  046-75017-072 *Write Roller Assy II B4(25-26) 33x,30x
  046-75036-077 *Write Roller Assy II D13-B4(25-26) 2xx
  023-75137-154 *Master Roll Holder Assy A3(56-68) 37x,39x,57x,59x
  023-75138-150 *Master Roll Holder Assy B4(56-68) 33x,23x
  023-75139-157 *Master Roll Holder Assy A4(56-68) 30x,20x,22x
1 023-28092-207 *Rear Frame M.-M Unit
2 023-75165-050 *Front Frame M.-M. Unit
3 023-28338-001 *Shaft Handle M-M
4 023-28070-009 *Handle M.-M.
5 023-28343-005 *Guide Handle M.-M.
6 023-28206-105 *Hook Left Handle M.-M.
7 023-28071-102 *Hook Right Handle M.-M.
8 023-28207-004 *Actuator plate M.-M. Set Sensor
9 023-28072-001 *Spring Hook M-M
10 023-28336-009 *Handle Stopper M.-M.
11 635-17423-000 *Stepped Screw F4X2.2 M3X4
12 023-28209-007 *Spring Handle M-M
13 023-28082-007 *Positioning Pin Front M.-M
14 023-28013-200 *Bottom Stay M.-M Unit
15 023-28251-003 *Slide Guide 2 M.-M.
16 023-28074-101 *Reinforcement Plate M.-M. Frame
17 023-28073-008 *Lower Stay M.-Making
18 023-28245-003 *Reinforce Plate Lower M.-M. Unit
19 023-28124-109 *Master Roll Holder Bottom
20 023-28210-005 *Master Guide Roller
21 023-28015-008 *Box Stay M.-Making
22 014-15011-004 *De-Electricity Bar M.-M. A3
23 023-28417-009 *Lower Bracket Master End Sensor
24 444-42029-200 *Sensor (Send) KH0854-00
25 046-28011-007 **Write Roller D23-A3 37x,39x,57x,59x
25 046-28020-006 **Write Roller D23-B4 33x,30x
25 046-28029-003 **Write Roller D13-B4 2xx
26 019-35025-008 **liner
27 607-16001-000 *Metal F10X15/14X6 18X2
28 665-02044-002 *Wire Saddle LWS-0711
29 046-28013-000 *Bracket F Write Roller 5xx,3xx
29 046-28030-001 *Bracket Front Write Roller D13 2xx
30 611-90012-009 *Pulley P70-2Gt-5 5xx,3xx
30 611-90003-000 *PULLEY P40-2GT-5 2xx
31 046-28012-003 *Bracket R Write Roller 5xx,3xx
31 046-28031-008 *Bracket Rear Write Roller D13 2xx
32 023-28378-100 *Support Plate Rear Frame M.-M
33 046-28014-006 *Stock Roller A3 37x,39x,57x,59x
33 046-28021-002 *Stock Roller B4 33x,30x,2xx
34 607-10006-000 *Metal F6X8X4 10X1
35 023-28114-308 *M Set Guide Plate B A3 37x,39x,57x,59x
35 023-28259-306 *M Set Guide Plate B B4 33x,23x
35 023-28302-309 *M Set Guide Plate B A4 30x,20x,22x
36 023-28115-100 *Spring B Front M Set Guide Plate
37 023-28036-102 *Shaft M Set Guide Plate
38 046-28027-000 *Master Flange Front(G)
39 444-59008-001 *RF Module B5J-0171
40 046-28033-000 *Module Holder M.-M.
41 023-28357-103 *Collar Master Holder B4 33x,23x
41 023-28304-107 *Collar Master Holder A4 30x,20x,22x
42 023-28439-100 *Adjuster Collar Master Holder 33x,30x,2xx
43 023-28440-000 *Spring Collar Master Holder 33x,30x,2xx
44 023-28247-103 *Stopper Rear M.-M Unit
45 023-28396-001 *Bracket Stopper M Set Guide Plate
46 023-28397-008 *Shaft Stopper M Set Guide Plate
47 023-28398-004 *Stopper M Set Guide Plate
48 023-28399-000 *Stopper Spring M Set Guide Plate
49 023-28377-007 *Rear Cover M.-M. Unit
50 023-28233-005 *Stopper Spring M.-M Close
51 023-28232-009 *Base Bracket Stopper M.-M. Close
52 023-28231-002 *Stopper M.-M. Close
53 635-17613-101 *Stepped Screw 6X1.8 M3X4
54 023-28133-000 *Lever Master roll Holder
55 023-28135-003 *Lever Spring Master Roll Holder
56 023-28130-001 **Fulcrum Plate Master Roll Holder
57 023-28131-008 **Shaft Master Roll Holder
58 023-28132-004 **Lever Shaft Master Roll Holder
59 023-28371-009 **Master Holder Base A3 37x,39x,57x,59x
59 023-28374-008 **Master Holder Base B4 33x,23x
59 023-28375-004 **Master Holder Base A4 30x,20x,22x
62 023-28134-007 **Hook Master Roll Holder
63 023-28394-009 **Reinforcement Plate Master Holder Base
64 023-28136-000 **Guide Spring Master Holder
65 023-28372-005 **Damper Case Master Holder
66 023-28007-005 **Master Flange Rear
67 019-15255-007 **Guide Flange Master Holder
68 610-00022-003 **Damper 2G50-C-10HG
69 046-28038-002 *Wire Harness RF M.-M.

 Master Making Area (4)

Master Making Area (4)

Ref. Партс код Наименование Примечание
  023-75144-150 *Load Motor Assy(27-30)
  023-75140-058 *Master Guide Assy (31-39) 37x,39x,57x,59x
  023-75142-050 *Master Guide Assy MLB4(31-39) 33x
  023-75141-054 *Master Guide Assy II(31-39) 30x,2xx
1 046-28002-008 *Shaft Holder Right
2 046-28003-004 *Shaft Holder Left
3 023-28076-007 *Shaft Drawer Connector M.-M Unit
4 023-28148-008 *Hook Shaft M.-M Unit
5 023-28014-109 *Upper Stay M.-M Unit
6 023-28367-001 *Guide Block M.-M. Unit Mount
7 023-28046-000 *M. Loading Roller A3 37x,39x,57x,59x
7 023-28285-005 *M. Loading Roller B4 33x,30x,2xx
8 023-17197-007 *Lock Ring 4
9 612-10103-006 *Gear M0.8X13X5
10 023-28044-008 *Shaft M. Loading Roller
11 023-28405-108 *Bracket De-Elect. Brush M Loading
12 023-28415-006 *De-Electricity Brush M Loading
13 046-28015-002 *Load Roller A3 37x,39x,57x,59x
13 046-28022-009 *Load Roller B4 33x,30x,2xx
14 607-10005-004 *Metal F8x10x3 11.2x0.6
15 612-10104-002 *Gear M0.8X16X5
16 023-28140-104 *FULCRUM PLATE MASTER STOCKER
17 610-00022-003 *Damper 2G50-C-10HG
18 023-28376-108 *Bracket Gear Shaft M Loading
19 612-10106-005 *Gear M0.8X34X4
20 612-10105-009 *Gear M0.8X16X4
21 023-28214-108 *Bracket Set sensor M.-M Upper
23 444-33003-109 *SENSOR ON-171-A8
24 046-28026-004 *Wire Harness M.Pos.Sensor
25 665-02044-002 *Wire Saddle LWS-0711
26 023-28239-208 *Wire Harness M.-M Unit
27 023-28196-002 **Bracket Load Pulse Motor
28 490-33015-002 **Motor PM42L-048-ZVN6
29 612-80019-002 **Gear Mx0.5X89+M0.8X34
30 612-80018-006 **Gear M0.8X36+M0.8X18
31 607-10006-000 **Metal F6X8X4 10X1
32 023-28057-002 **Cutter Guide Upper A3 37x,39x,57x,59x
32 023-28436-003 **Cutter Guide Upper B4R 33x
32 023-28265-209 **Cutter Guide Upper B4 30x,2xx
33 023-28058-106 **Cutter Guide Lower A3 37x,39x,57x,59x
33 023-28437-107 **Cutter Guide Lower B4R 33x
33 023-28263-109 **Cutter Guide Lower B4 30x,2xx
34 023-28184-004 **Shaft Stoker roller Upper A3 37x,39x,57x,59x
34 023-28272-000 **Shaft Stoker roller Upper B4 33x,30x,2xx
35 023-28190-101 **M Transfer Roller Wide Width
36 023-28191-108 **M Transfer Roller Middle width
37 023-28093-009 **Shaft Load Roller Upper A3 37x,39x,57x,59x
37 023-28286-001 **Shaft Load Roller Upper B4 33x,30x,2xx
38 023-28192-104 **M Transfer Roller Short Width
39 023-28340-006 **Guide Master Loading
40 444-39000-004 *Sensor E-3674
41 023-28421-103 *Cutter Unit(rotary) 37x,39x,57x,59x,33x
41 023-28422-401 *Cutter Unit(Shuttle) 30x,2xx
42 023-28327-107 *Master Guide Plate A A3(D23) 37x,39x,57x,59x,33x
42 023-28310-000 *Master Guide Plate A B4(D23) 30x
42 023-28287-202 *Master Guide Plate A (D13) 2xx
43 023-28946-001 *Seal Pos. Leading Edge Of Master Pic
44 635-10007-001 *Stepped Screw F5X3 M3X3
45 046-28043-006 *Cutter Cover 37x,39x,57x,59x,33x
45 046-28044-002 *Cutter Cover 2 30x,2xx
46 023-28053-104 *Cover Master Pos. Sensor
47 023-28317-004 *Master Set Guide Bar 37x,39x,57x,59x,33x
47 023-28379-000 *Master Set Guide Bar B4 30x,2xx
48 023-28409-103 *Guide plate B Master Set Guide Bar 30x
48 023-28280-100 *Guide plate A Master Set Guide Bar 2xx
49 046-28049-004 *Spring Safety SW
50 046-28048-008 *Bracket SW M.-M.

 Master Removal Area (1)

Master Removal Area (1)

Ref. Партс код Наименование Примечание
  046-74001-008 Disposal Unit Assy(1-9)
1 046-24036-005 *Cover Disposal Box
2 046-24035-203 *Disposal Box
3 023-24140-347 *Box Lever Disposal box
4 045-24001-000 *Lock Lever
5 023-24148-003 *Handle Spring Disposal Box
6 024-24141-200 *Spring Box Cover
7 046-24143-006 *Seal Disposal Instruction A
8 046-24144-002 *Seal Disposal Instruction B
9 046-24145-009 *Detection Sheet Box Set
10 023-24132-000 Bracket M.-Rmv.
11 023-24103-000 Cover M.-Rmv.

Master Removal Area (2)

Master Removal Area (2)

Ref. Партс код Наименование Примечание
  046-75004-078 Master Removal Unit EZ-A3,B4 (Fig33-34) 5xx,33x,23x
1 046-24021-105 *Housing M.-Rev.
2 046-24128-007 *Bracket Housing M.-Rev.
3 046-24062-006 *Hook M.-Rmv Roller
4 046-24007-005 *Shaft Pulley M.-Rmv.
5 023-24129-009 *Holding Plate Pulley M.-Rmv.
6 023-24062-109 *Plate M.-Rmv. Pulley
7 023-24061-102 *Pulley M-Rmv
8 023-24063-202 *Shaft Pulley M-Rmv
9 024-24067-000 *Spring Roller B1
10 640-60001-004 *O Ring S42-2.0
11 046-24057-100 *Shaft Roller M.-Rmv.
12 023-24061-102 *Pulley M-Rmv
13 X-530 *Pin F2X14
14 030-19131-008 *Spring Catch
15 024-25057-009 *Spring Roller
16 046-24025-003 *Pulley Shaft M.-Rmv.
17 607-13000-102 *Metal F6X10/9X6:12X1.5
18 612-10058-000 *Gear m1.25x16x7
19 046-24088-005 *Bracket Master Loading Sensor
20 444-43007-404 *Master Loading Sensor
21 046-24056-006 *Bracket M.-Rmv .Sensor
22 444-41003-100 *Sensor OS-RS04Y01-A5
23 046-24011-002 *Bracket HP Sensor Compression Plate
24 444-30008-100 *Sensor LG-248Nl1
25 023-17197-007 *Lock Ring 4
26 046-24200-000 *Wire Harness U M.-Rmv.
27 024-25058-102 *Spring Roller Hook

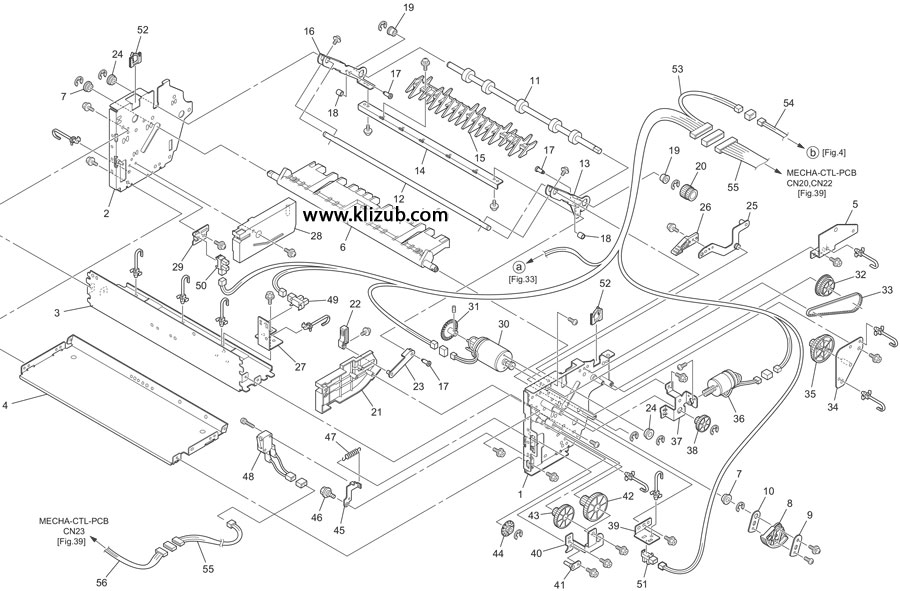

Master Removal Area (3)

Master Removal Area (3)

Ref. Партс код Наименование Примечание
1 046-24002-003 *Side Frame F1 M.-Rmv
2 046-24009-008 *Side Frame R1 M.-Rmv.
3 046-24016-004 *Stay A M.-Rmv.
4 046-24017-000 *Stay B M.-Rmv.
5 046-24086-002 *Bracket M.-Rmv. Unit
6 046-24099-007 *M Compression Plate
7 607-16001-000 *Metal F10X15/14X6 18X2
8 612-10040-004 *GEAR M1X71X14
9 024-24138-005 *Bracket Gear A
10 024-24139-001 *Bracket Gear B
11 046-24005-002 *Master Removal Roller
12 023-24124-007 *Hook Shaft M Removal Roller Lower
13 046-24125-008 *Holding Plate F M.-Rmv.
14 046-24152-005 *Guide Stay M.-Rmv.
15 046-24151-009 *Guide Plate M.-Rmv.
16 046-24127-000 *Holding Plate R M.-Rmv.
17 635-10006-005 *Stepped Screw F5X10.8 M3X3
18 023-24126-000 *Roller Hook M.-Rmv.
19 607-15000-000 *Metal F8X13/12X5 16X2
20 612-80025-002 *Gear m1.25X16+m1.25X14
21 046-24119-008 *Guide Plate Disposal Box
22 023-24120-001 *Manual Compression Lever
23 024-25065-109 *Link Plate
24 607-15000-000 *Metal F8X13/12X5 16X2
25 046-24113-000 *Release Lever 1 M.-Rmv.
26 023-24117-000 *Knob Release Lever M.-Rmv.
27 046-24075-000 *Bracket FG Sensor 1 M.-Rmv.
28 046-24166-006 *Guide Plate R Disposal Box
29 046-24015-008 *Bracket Set Sensor Disposal Box
30 023-74002-050 *Suction Motor Ccwrs-55PH
31 023-21342-305 *Metal Slit Motor
32 613-11300-007 *Pulley Gear 0.8X31+53S2M
33 621-00001-000 *Belt 40-S2M-290
34 046-24001-007 *Bracket M.-Rmv. Gear
35 612-80024-006 *Gear m0.8X61+m1.25X12
36 023-74001-054 *Motor Assy (CWRS-445PA)
37 046-24092-002 *Bracket Motor M Compression
38 612-81303-006 *Gear M0.8X35+M0.8X15
39 046-24074-004 *Bracket FG Sensor M Compression
40 046-24097-004 *Bracket 1 M Compression Gear
41 046-24012-009 *Bracket Locking Boss
42 612-81602-003 *Gear M1X17+M0.8X61
43 612-81401-008 *Gear M0.8X17+M0.8X49
44 612-11103-000 *Gear M0.8X15X7
45 046-24135-003 *Set Plate Safety SW M.-Rmv.
46 635-18513-003 *Stepped Screw F5X1.5 M3X3
47 023-26020-004 *Spring Clamp Cam
48 023-53031-000 *Safety SW Assy M.-RMV.
49 444-30008-100 *Sensor LG-248Nl1
50 444-30008-100 *Sensor LG-248Nl1
51 444-30008-100 *Sensor LG-248Nl1
52 665-00312-000 *Edging Saddle LES-1010
53 046-24200-000 *Wire Harness U M.-Rmv.
54 023-12602-108 Wire Harness Elevator Motor
55 046-53007-006 Wire Harness M-Rmv/Panel
56 046-53009-009 Wire Harness Safety SW M.-Rmv.

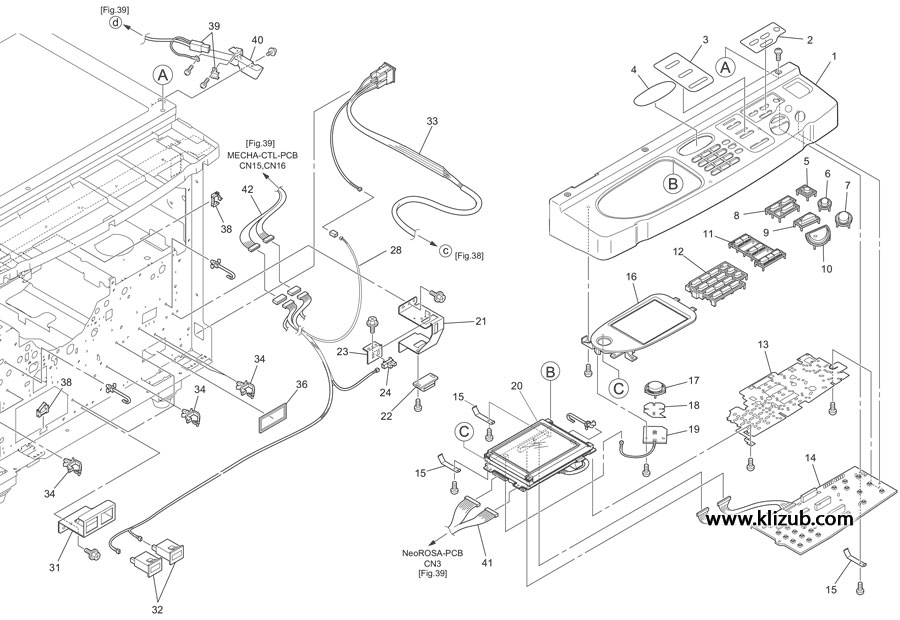

Electrical Component Area (1) EZ5 Panel

Electrical Component Area (1) EZ5 Panel

Ref. Партс код Наименование Примечание
  046-75052-056 Panel Unit EZ5(Pic)(1-20)
  046-75053-052 Panel Unit EZ5(En)(1-20)
  046-75055-055 Panel Unit EV5(1-20)
1 023-37101-405 *Frame Panel RZ5
2 023-37061-004 *Sheet Panel Mode Key Pic
2 023-37015-002 *Sheet Panel Mode Key Eng
2 023-37062-000 *Sheet Panel Mode Key Ch
3 023-37118-006 *Sheet Print Control Key
3 023-37117-000 *Sheet Print Control Key
3 023-37119-002 *Sheet Print Control Key
4 023-37103-009 *Numeric Display Cover
5 023-37056-108 *Wake-Up Key
6 023-37047-001 *Reset Key Pic.
6 023-37046-005 *Reset Key Eng
6 023-37048-008 *Reset Key Ch
7 023-37037-006 *Stop Key Pic.
7 023-37036-000 *Stop Key Eng
7 023-37038-002 *Stop Key Ch
8 023-37050-100 *Print Mode Key
9 023-37042-000 *Test Print Key Pic.
9 023-37041-003 *Test Print Key Eng
9 023-37043-006 *Test Print Key Ch
10 023-37032-004 *Start Key Pic.
10 023-37031-008 *Start Key Eng
10 023-37033-108 *Start Key Ch.
11 023-37107-004 *Print Control Key RZ5
12 023-37040-007 *Numeric Key
13 023-37128-001 *Shield Mylar Sheet A RZ5 SW-PCB
14 023-37136-802 *ML-SW-PCB
15 046-37010-005 *Grounding Plate Panel
16 023-37102-100 *Touch Panel Cover
17 023-37110-005 *Display Mode Key Pic
17 023-37109-007 *G890Display Mode Key Eng
17 023-37111-001 *Display Mode Key Ch
18 023-37129-008 *Shield Mylar Sheet B RZ5 Mode Key
19 023-37137-205 *MODE-KEY-PCB
20 023-43799-104 *LCD Control Unit
21 023-34051-105 Bracket Front Cover SW
22 660-00002-004 Magnet Catch SM50-P
23 023-34053-205 Bracket Sensor
24 444-30010-007 Sensor LG285D1
28 046-53015-009 Wire Harness Lower F (G)
31 023-50022-000 Bracket Counter
32 492-00001-108 Counter
33 023-50013-005 Guide Download Card
34 665-02044-002 Wire Saddle LWS-0711
36 665-04055-001 SB-6025
38 665-00309-009 Edging Saddle LES-1017
39 046-53013-006 USB Inner Cable
40 046-50012-009 Bracket USB Connector
41 046-53007-103 Wire Harness M-Rmv/Panel
42 046-53016-005 Wire Harness Lower R (G)

 Electrical Component Area (1) EZ3 Panel

Electrical Component Area (1) EZ3 Panel

Ref. Партс код Наименование Примечание
  046-75045-050 Panel Unit 300E(1-18,43-45) Pic/mm
  046-75047-052 Panel Unit 370E(1-18,43-45) Pic/mm
  046-75048-059 Panel Unit 370A(1-18,43-45) Eng/mm
  046-75049-055 Panel Unit 390U(1-18,43-45) Eng/inch
  046-75050-053 Panel Unit EV35(1-18,43-45) Ch/mm
  046-75051-050 Panel Unit EV37(1-18,43-45) Ch/mm
  046-75057-058 Panel Unit 330A(1-18,43-45) Eng/mm
1 023-37002-202 *Frame Panel
2 023-37061-004 Panel Mode Key Pic
2 023-37015-002 Panel Mode Key Eng
2 023-37062-000 Panel Mode Key Ch
3 023-37067-100 Print Control RZ3 Pic/mm
3 023-37066-103 Print Control RZ3 Eng/mm
3 023-37068-106 Print Control RZ3 Ch/mm
3 023-37016-106 Print Control RZ3 Eng/inch
4 046-37018-103 *Plate Main Panel (Pic)
4 046-37017-000 *Plate Main Panel (En)
4 046-37019-002 *Plate Main Panel (Ch)
5 023-37082-001 Sub Panel RZ370EP/UP
5 023-37085-108 Sub Panel RZ300EP
5 023-37081-005 Sub Panel RZ370AW/AN
5 023-37017-005 Sub Panel RZ390UI
5 023-37084-004 Sub Panel RZ310UI
5 023-37083-008 Sub Panel RZ370C
5 023-37098-005 Sub Panel RZ3460C
5 023-37097-009 Sub Panel RZ330AW
6 023-37013-107 *Cover Sub-Panel
7 023-37056-108 *Wake-Up Key
8 023-37047-001 *Reset Key Pic.
8 023-37046-005 *Reset Key Eng
8 023-37048-008 *Reset Key Ch
9 023-37037-006 *Stop Key Pic.
9 023-37036-000 *Stop Key Eng
9 023-37038-002 *Stop Key Ch
10 023-37050-100 *Print Mode Key
11 023-37042-000 *Test Print Key Pic.
11 023-37041-003 *Test Print Key Eng
11 023-37043-006 *Test Print Key Ch
12 023-37032-004 *Start Key Pic.
12 023-37031-008 *Start Key Eng
12 023-37033-108 *Start Key Ch.
13 023-37040-007 *Numeric Key
14 023-37051-009 *Print Control Key RZ3
15 023-37011-104 *Protection Shield
16 046-37001-006 *Led-Pnl-Ctl-Pcb
17 023-37022-300 *Main-SW-PCB
18 023-37023-307 *Sub-SW-PCB
19 023-34051-105 Bracket Front Cover SW
20 660-00002-004 Magnet Catch SM50-P
21 023-34053-205 Bracket Sensor Front Cover
22 444-30010-007 Sensor LG285D1
28 046-53015-009 Wire Harness Lower F (G)
31 023-50022-000 Bracket Counter
32 492-00001-108 Counter
33 046-50013-005 Wire Harness Main Power SW
34 665-02044-002 Wire Saddle LWS-0711
36 665-04055-001 SB-6025
38 665-00309-009 Edging Saddle LES-1017
41 046-53019-101 Wire Harness Panel.M-Rmv L/LL
42 046-53016-005 Wire Harness Lower R (G)
43 023-37027-000 *Grounding Plate A Panel
44 023-37028-007 *Grounding Plate B Panel
45 023-37029-003 *Grounding Plate C Panel

Electrical Component Area (1) EZ2 Panel

Electrical Component Area (1) EZ2 Panel

Ref. Партс код Наименование Примечание
  046-75038-053 Panel Unit 200E(1-18,43-45) Pic/mm
  046-75039-050 Panel Unit 220U(1-18,43-45) Eng/inch
  046-75040-058 Panel Unit 230E/U(1-18,43-45) Pic/mm
  046-75041-054 Panel Unit 220/200A(1-18,43-45) Eng/mm
  046-75042-050 Panel Unit 230A(1-18,43-45) Eng/mm
  046-75043-057 Panel Unit EV25(1-18,43-45) Ch/mm
1 023-37002-202 *Frame Panel
2 023-37061-004 Panel Mode Key Pic
2 023-37015-002 Panel Mode Key Eng
2 023-37062-000 Panel Mode Key Ch
3 023-37071-107 Print Control RZ2 Pic/mm
3 023-37069-102 Print Control RZ2 Eng/inch
3 023-37070-100 Print Control RZ2 Eng/mm
3 023-37072-103 Print Control RZ2 Ch/mm
4 046-37018-103 Main Panel (Pic)
4 046-37017-000 Main Panel (En)
4 046-37019-002 Main Panel (Ch)
5 046-37011-001 Sub Panel 230E/U
5 046-37012-008 Sub Panel 200E
5 046-37016-003 Sub Panel 220U
5 046-37013-004 Sub Panel 230A
5 046-37015-007 Sub Panel 220/200A
5 046-37014-000 Sub Panel 2560C
6 023-37013-107 *Cover Sub-Panel
7 023-37056-108 *Wake-Up Key
8 023-37047-001 *Reset Key Pic.
8 023-37046-005 *Reset Key Eng
8 023-37048-008 *Reset Key Ch
9 023-37037-006 *Stop Key Pic.
9 023-37036-000 *Stop Key Eng
9 023-37038-002 *Stop Key Ch
10 023-37050-100 *Print Mode Key
11 023-37042-000 *Test Print Key Pic.
11 023-37041-003 *Test Print Key Eng
11 023-37043-006 *Test Print Key Ch
12 023-37032-004 *Start Key Pic.
12 023-37031-008 *Start Key Eng
12 023-37033-108 *Start Key Ch.
13 023-37040-007 *Numeric Key
14 023-37052-005 *Print Control Key RZ2
15 023-37011-104 *Protection Shield
16 046-37001-006 *Led-Pnl-Ctl-Pcb
17 023-37022-300 *Main-SW-PCB
18 046-37002-002 *Sub SW PCB LL
19 023-34051-105 Bracket Front Cover SW
20 660-00002-004 Magnet Catch SM50-P
21 023-34053-205 Bracket Sensor Front Cover
22 444-30010-007 Sensor LG285D1
28 046-53015-009 Wire Harness Lower F (G)
31 023-50022-000 Bracket Counter
32 492-00001-108 Counter
33 046-50013-005 Wire Harness Main Power SW
34 665-02044-002 Wire Saddle LWS-0711
36 665-04055-001 SB-6025
38 665-00309-009 Edging Saddle LES-1017
41 046-53019-101 Wire Harness Panel.M-Rmv L/LL
42 046-53016-005 Wire Harness Lower R (G)
43 023-37027-000 *Grounding Plate A Panel
44 023-37028-007 *Grounding Plate B Panel
45 023-37029-003 *Grounding Plate C Panel

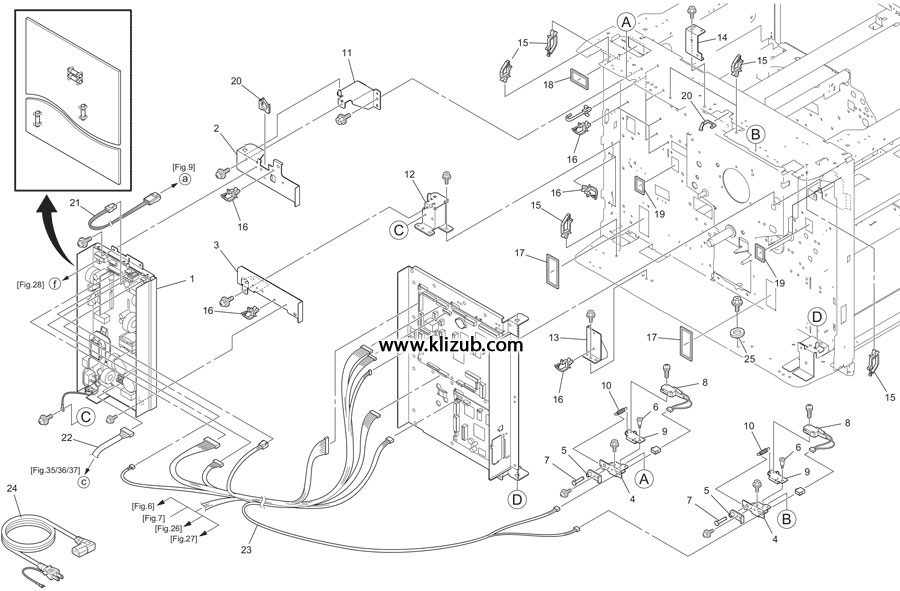

Electrical Component Area (2)

Electrical Component Area (2)

Ref. Партс код Наименование Примечание
1 046-50510-009 Power Supply PS19-NWW 5xx,3xx,22xUG
1 023-50073-305 PS15-N200 2xxE,2xxA
2 046-50008-206 Bracket Upper Power Supply
3 046-50009-105 Bracket Lower Power Supply
4 046-50010-006 Set Plate Safety SW Rear
5 023-50042-108 Shaft Bracket Drive Interlock SW
6 635-10013-001 Stepped Screw F5X6.8 M3X4
7 042-50010-007 Shaft Drive Interlock SW
8 023-53026-006 Drive Interlock Safety SW
9 046-50011-002 Frame Drive Safety SW
10 042-50014-002 Spring Drive Interlock SW
11 023-50001-002 Hinge Upper PCB Bracket Ejection Side
12 023-50002-106 Hinge Lower PCB Bracket Ejection Side
13 046-50007-005 Secure Bracket Rear Lower
14 046-50006-009 Secure Bracket Rear Upper
15 665-02055-004 Wire Saddle LWS-2218
16 665-02043-006 Wire Saddle LWS-1316
17 665-04055-001 SB-6025
18 665-04002-005 Square Bushing SB-4025
19 665-04054-005 Square Bushing SB-2718
20 665-02039-009 Edging Saddle EDS-17L
21 046-53011-003 Junction Wire Harness M-Motor
22 046-50013-005 Wire Harness Main Power SW
23 046-53008-002 Wire Harness FB Upper
24 488-00048-101 Power Cord 220V EU (L)
24 488-00050-009 Power Cord 100V (L)
24 488-00049-108 POWER CORD CH.
25 023-50014-007 Washer F4.5X12X1
26 665-00309-009 Edging Saddle LES-1017

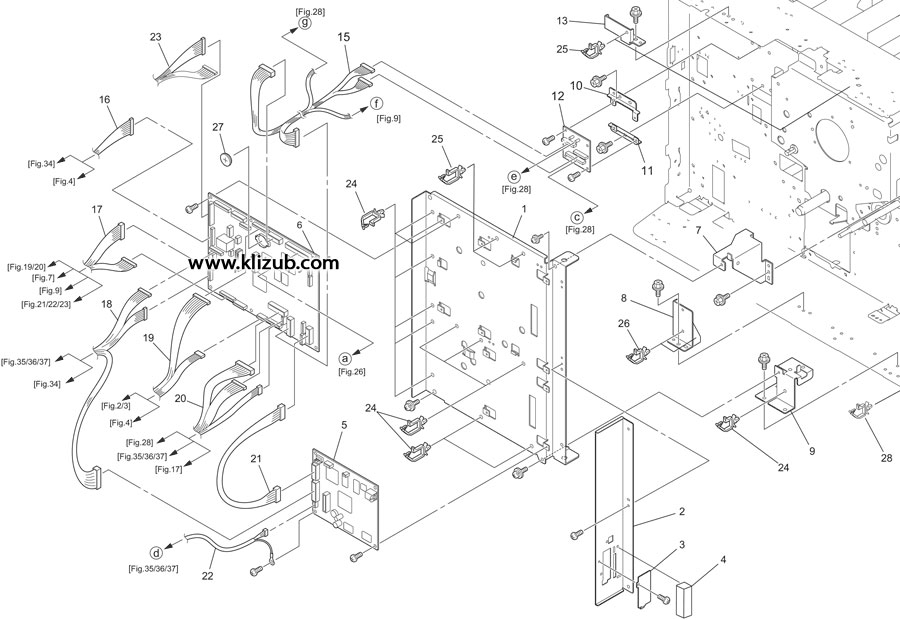

Electrical Component Area (3)

Electrical Component Area (3)

Ref. Партс код Наименование Примечание
1 046-50001-104 Bracket Mecha & NeoROSA
2 046-50002-003 Bracket Option I/F
3 046-50014-001 Cover Plate NIC
4 046-50003-000 Cover Bracket CF
5 046-50500-208 NeoROSA-PCB EZ5xx
5 046-50515-000 NeoROSA-PCB OP option-EZ2xx,EZ3xx
5 046-50501-000 NeoROSA-PCB (C) EV5xx
5 046-50516-007 NeoROSA-PCB OP (C) option-EV
6 046-75005-104 MECHA-CTL PCB II ML EZ5xx
6 046-75503-103 MECHA-CTL PCB II LL EZ2xx
6 046-75504-100 MECHA-CTL PCB II L EZ3xx
6 046-75507-002 MECHA-CTL PCB II LL(C) EV2xx
6 046-75508-106 MECHA-CTL PCB II L(C) EV3xx
7 046-50004-006 Hinge Rear Left Upper
8 046-50007-005 Secure Bracket Rear Lower
9 046-50005-002 Hinge Rear Left Lower
10 023-28204-005 Bracket Upper Junction PCB M.-M.
11 023-28221-007 Bracket Lower Junction PCB M.-M.
12 023-28218-200 M.-Making Junction PCB
13 023-50067-003 Wire Harness Guide Plate
15 046-53014-002 TPH Drawer Connector H (G)
16 046-53009-009 Wire Harness Safety SW M.-Rmv.
17 046-53004-007 Wire Harness Paper Ejection Rear 5xx,3xx
17 046-53017-001 Wire Harness Paper Feed Rear LL 2xx
18 046-53007-103 Wire Harness M-Rmv/Panel 5xx,3xx
18 046-53019-101 Wire Harness Panel.M-Rmv L/LL 2xx
19 046-53005-003 Wire Harness Paper Feed Rear
20 046-53016-005 Wire Harness Lower R (G)
21 046-53010-007 Wire Harness NeoROSA option-5xx
22 046-53013-006 USB Inner Cable 5xx
23 046-53008-002 Wire Harness FB Upper
24 665-02055-004 Wire Saddle LWS-2218
25 665-02073-002 Clamp RLWC-7SV0
26 665-02043-006 Wire Saddle LWS-1316
27 408-02300-001 BATTERY CR-2032
28 665-02044-002 Wire Saddle LWS-0711

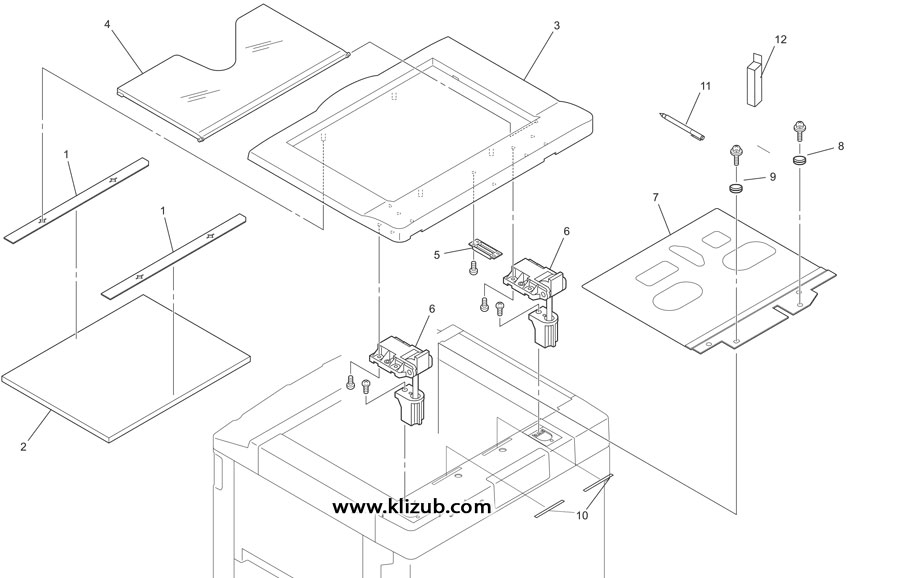

Stage Cover Area

Stage Cover Area

Ref. Партс код Наименование Примечание
  023-75113-158 Unit / Stage Cover(1,3-6)
1 023-30008-000 *Stage Cover
2 023-30075-000 Stage Pad 2 Stage Cover
3 023-30007-004 *Frame Stage Cover
4 018-16411-200 *Original Holder Cover (Upper) Stage Cover
5 023-30006-008 *Actuator Plate Stage cover Actuator
6 023-30070-105 *Stage Cover Hinge Assy 3
7 045-30010-100 Gauge Sheet II 5xx
8 046-30052-004 Collar Gauge Sheet 3 5xx
9 046-30053-000 Adjuster Cam Gauge Sheet 3 5xx
10 046-30054-007 Magnet Gauge Sheet 3 5xx
11 024-36703-107 Stylus Editor 5xx
12 045-36031-001 Pen Case Digitizer 5xx

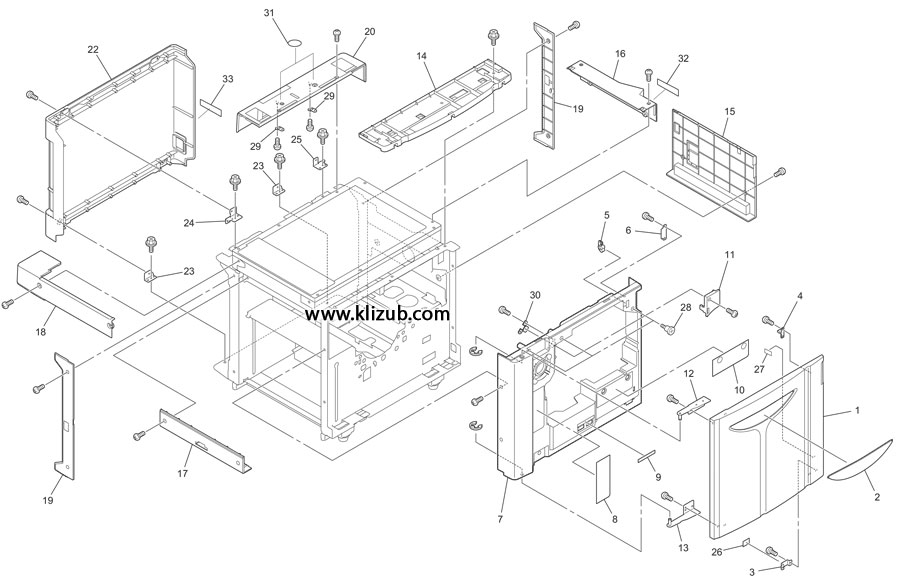

Exterior Cover Area

Exterior Cover Area

Ref. Партс код Наименование Примечание
1 046-34001-005 Front Door
2 046-34014-000 Emblem EZ570E
2 046-34023-009 Emblem EZ370E
2 046-34017-009 Emblem EZ300E
2 046-34018-005 Emblem EZ230E
2 046-34019-001 Emblem EZ200E
2 046-34015-006 Emblem EZ570A
2 046-34027-004 Emblem EZ370A
2 046-34041-007 Emblem EZ330A
2 046-34026-008 Emblem EZ230A
2 046-34025-001 Emblem EZ220A
2 046-34024-005 Emblem EZ200A
2 046-34013-003 Emblem EZ590U
2 046-34031-001 Emblem EZ390U
2 046-34028-000 Emblem EZ310U
2 046-34030-005 Emblem EZ230U
2 046-34029-007 Emblem EZ220U
2 046-34044-006 Emblem EZ5700AG
2 046-34048-001 Emblem EZ3700AG
2 046-34047-005 Emblem EZ2300AG
2 046-34046-009 Emblem EZ2000AG
2 046-34045-002 Emblem EZ590UG
2 046-34051-002 Emblem EZ390UG
2 046-34050-006 Emblem EZ310UG
2 046-34049-008 Emblem EZ220UG
2 046-34057-043 Emblem EV5790C
2 046-34016-002 Emblem EV5690C
2 046-34053-005 Emblem EV3790C
2 046-34052-009 Emblem EV3760C
2 046-34043-000 Emblem EV3750C
2 046-34037-000 Emblem EV3690C
2 046-34036-003 Emblem EV3660C
2 046-34056-004 Emblem EV3560C
2 046-34035-007 Emblem EV3490C
2 046-34033-004 Emblem EV3460C
2 046-34055-008 Emblem EV2590C
2 046-34054-001 Emblem EV2560C
2 046-34042-003 Emblem EV2550C
2 046-34034-000 Emblem EV2490C
2 046-34032-008 Emblem EV2460C
3 021-11220-100 Magnet Catch
4 660-05106-002 Cover Catch
5 660-05105-006 Door Catch
6 021-11140-106 Fixed Plate Rotary Catch
7 023-34004-409 Front Cover
8 023-17305-004 Ink Replace Instruction Sticker Pic
9 021-04050-002 SEAL COUNTER
9 021-04051-009 SEAL COUNTER PIC.
10 023-28958-000 Seal M.-M. Unit Release Eng
10 023-28955-000 Seal M.-M. Unit Release Pic
11 023-34015-109 Cover Master Loading
12 023-34006-207 Hinge Top Front Door
13 023-34007-203 Hinge Bottom Front Door
14 023-37014-103 Panel Cover Bottom
15 046-34004-004 Side Cover Paper Ejection Side
16 046-34003-008 Scanner Cover Right 5xx
16 023-34041-207 Cover Scanner P.-Rcv. Side 3xx,2xx
17 023-34032-100 Side Cover Paper Feeding Side
18 023-34040-103 Cover Scanner Paper Feeding Side
19 023-34021-109 Side Cover Drive Side
20 046-34006-007 Scanner Cover Rear
22 046-34002-109 Rear Cover MLA3 5xx
22 046-34101-000 Rear Cover L/LL 3xx,2xx
23 023-34024-108 Bracket Lower Rear Cover
24 023-34025-104 Bracket Left Scanner Rear Cover
25 023-34026-100 Bracket Right Scanner Rear Cover
26 023-34054-007 Seal Magnet Adjuster
27 699-04003-107 Sheet Front Door Det. Sensor
28 635-10014-008 Stepped Screw F5.3X3.5 M4X6
29 023-34085-000 Fixed Plate Download Cover 5xx
30 023-34083-007 Fixed Plate M Loading Cover
31 046-34007-003 Cover Seal 3xx,2xx
32 046-34008-107 Caution Seal USB (J) 5xx
33 046-50018-007 Seal Voltage SW U,UG,AN

/23.04.2020/


Другие новости и события

12.08.2020 Доступны к заказу узлы и запасные части Riso EZ Series

подробнее » » »
30.06.2020 Доступны к заказу узлы и запасные части Riso EV5 Series

подробнее » » »
27.05.2020 Доступны к заказу узлы и запасные части Riso EV3760

подробнее » » »
Корзина
 Корзина
В корзине нет товаров

Уважаемый(-ая), Гость!
Вы не зарегистрированы.
Ваша скидка: 0%
Статьи
Статьи
Konica Minolta bizhub PRO 1050 - модель, которую отличают низкие эксплуатационные расходы
bizhub PRO 1050 – это надёжная система, выполненная в стальном корпусе и созданная для удовлетворения потребностей высокопроизводительных сегментов
Коника Минолта запускает новую высокопроизводительную систему: bizhub PRO 920
bizhub PRO 920 является новейшим дополнением в линейке производственных печатных устройств Коника Минолта. Он соединяет в себе качество копирования, печати и точность сканирования. Это устройство идеально для офисов с большим объемом печати, в отделе подготовки печатной продукции и цифровой печати.
Серия Konica Minolta bizhub PRO удостоена награды BERTL
Серия черно-белых производительных систем от Konica Minolta, представленная машинами bizhub PRO 920 и bizhub PRO 1050e, высоко оценена лабораторией BERTL за удобство использования и качество печати.
Обзор Aficio SP 3400SF
В уникальном МФУ Aficio SP 3400SF специалисты компании Ricoh сумели соединить весь необходимый набор для качественной и бесперебойной офисной работы.
Что нового в Ricoh MP 4002 и MP 5002
Продолжаем обзор Ricoh Aficio MP 4002 и MP 5002
Акции
Акции
Акция: тефлоновый вал, верхний вал печки к печатной технике по специальной акционной цене
Акция: OPC Drum, фотобарабан, фотовал к печатной технике по специальной акционной цене
Акция: прижимной, резиновый и нижний вал печки к печатной технике по специальной акционной цене
Акция: сепараторы бумаги
Акция: ролики подачи бумаги
Акция: разделительные пластины




61038, Украина, г. Харьков, ул. Салтовское шоссе 71/1, к. 5, (057) 751-96-30. Администрация сайта:
