Доступны к заказу узлы и запасные части Riso ComColor 3110

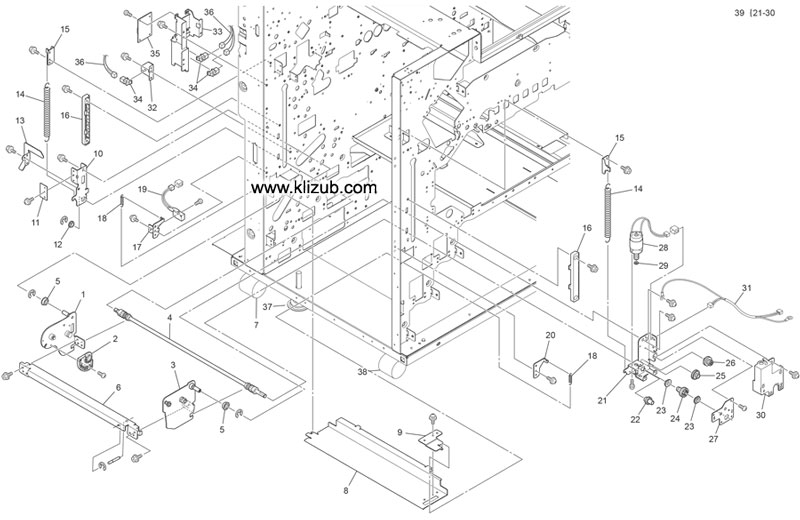

External Paper Feed Tray (1)

Ref.	Партс код	Наименование	Примечание
1 -1	050-79727-000	FRAME_FEED_TRY_R_AS
1 -2	050-79736-009	GEAR_FEEDTRY
1 -3	050-84189-008	FRAME_FT_F_AS_2
1 -4	050-75112-000	ELEVATOR SHAFT_ASSY
1 -5	600-50057-006	BEARING FLAW678ZZA
1 -6	050-79728-006	STAY_EXIT_ASSY
1 -7	651-00060-005	CASTER 2
1 -8	050-79730-000	LOWER_FRAME
1 -9	023-12206-008	SUPPORT LOWER LIMIT FRAME P.-F
1 -10	050-79732-003	HOOK_SRG_R
1 -11	024-12216-000	PLATE PAPER VOLUME DETECTION
1 -12	651-00018-009	METAL F8x13/12x5:16x2
1 -13	024-12214-008	FCC GUIDE
1 -14	050-79731-007	SPRING_E
1 -15	023-12203-009	BRACKET LOWER LIMIT FRAME P.-F
1 -16	023-12201-103	ELEVATOR RACK P.-F.
1 -17	050-79733-000	SP_BASE_R
1 -18	050-79737-005	SPRING_L_SNR
1 -19	023-53023-104	ELEVATOR SAFETY SW
1 -20	023-12251-003	BRACKET F SPG LOWER SAFETY SW
1 -21	023-12234-303	MOTOR CHASSIS ELEVATOR SPRING
1 -22	612-80011-001	GEAR M0.8X23+M0.8X14
1 -23	023-12244-104	ELEVATOR MOTOR COLLAR
1 -24	612-10009-107	GEAR M1X24
1 -25	612-80012-008	GEAR M0.8X30+M0.8X14
1 -26	612-80013-004	GEAR M0.8X29+M1X14
1 -27	023-12223-000	GEAR COVER ELEVATOR MOTOR
1 -28	023-75906-000	MOTOR ASSY(CWRS-445PA)
1 -29	030-19205-001	SUPPORT CLAMP WORM
1 -30	023-12247-006	COVER ELEVATOR MOTOR
1 -31	050-79797-008	WIRE HARNESS OR2ELV_CBL
1 -32	023-12233-307	BRACKET LOWER LIMIT SENSOR
1 -33	024-12209-101	BRACKET JUNCTION PCB
1 -34	444-30008-100	SENSOR LG248NL1
1 -35	050-50903-208	PF-RELAY-PCB	-
1 -36	050-79862-101	WIRE HARNESS	-
1 -37	050-79589-006	LEVELLER	-
1 -38	050-79588-000	CASTER	-
1 -39	023-75078-107	ELEVATOR MOTOR ASSY	ASSY of No.1-2130

External Paper Feed Tray (2)

Ref.	Партс код	Наименование	Примечание
2 -1	024-12101-408	FEED TRAY COVER
2 -2	047-12001-009	PFT TABLE L
2 -3	050-12079-003	SEAL PFT SET
2 -4	050-12023-008	FRAME R PFT
2 -5	020-11520-106	L.O. SHEET
2 -6	050-12021-102	FRAME F PFT
2 -7	024-12127-008	BRACKET POTENTIOMETER
2 -8	050-12078-007	SEAL PFT CLOSE
2 -9	612-10039-006	GEAR M1X72X6
2 -10	024-12602-202	PF-TRAY-PCB
2 -11	021-51032-306	POTENTIOMETER ASSY
2 -12	024-12608-200	WIRE HARNESS PF TRAY INNER
2 -13	024-12105-004	SHAFT PF TRAY
2 -14	030-14124-100	SLIDER R PAPER GUIDE
2 -15	030-14130-003	LOCK B PAPER GUIDE
2 -16	030-14129-005	LOCK A PAPER GUIDE
2 -17	024-12120-003	LEVER FENCE LOCK
2 -18	024-12110-008	SLIDE RACK P-F-T
2 -19	030-14133-002	COLLAR SLIDE RACK P-F-T
2 -20	612-12103-003	GEAR M1X16X3.2
2 -21	030-14126-103	SLIDER F PAPER GUIDE
2 -22	024-12107-104	FENCE TRAY R
2 -23	024-12106-108	FENCE TRAY F
2 -24	024-12123-002	FENCE SHEET
2 -25	024-12121-000	SEAL FENCE SET
2 -26	050-12026-104	PFT TABLE S
2 -27	050-12071-002	BRACKET ONE-WAY HINGE
2 -28	444-33013-007	SENSOR PS124TD1
2 -29	050-12072-009	COVER HINGE
2 -30	024-12109-000	SHAFT HINGE
2 -31	610-10011-000	ONE WAY HINGE OWHF6-0.6NLS
2 -32	612-10036-104	GEAR M1X20X7
2 -33	050-79734-006	COVER_FFC
2 -34	050-79735-002	COVER_FFC_G
2 -35	024-12125-005	FCC HOLDER
2 -36	050-12907-003	WIRE HARNESS PF TRAY
2 -37	024-12119-005	FIXED PLATE PFT
2 -38	050-75113-007	PAPER FEED TRAY	ASSY of No.2-132

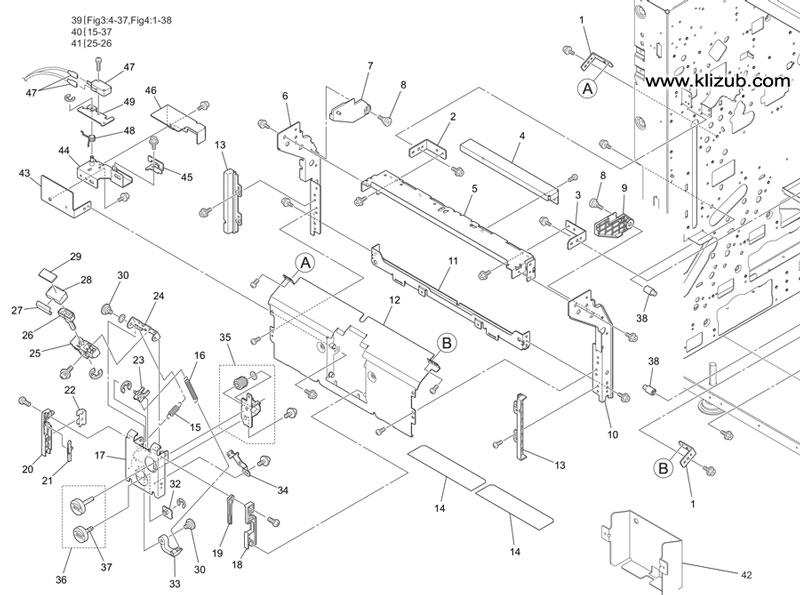

1st Paper Feed (1)

Ref.	Партс код	Наименование	Примечание
3 -1	050-79738-001	BRACKET_EXFEED
3 -2	050-79741-002	BRACKET_L_G_R
3 -3	050-79739-008	BRACKET_L_G_F
3 -4	050-12054-000	COVER WIRE HARNESS PFT
3 -5	050-12015-005	STAY PFT
3 -6	050-12017-105	SIDE FRAME PFT R
3 -7	050-12057-000	LEVER PFT COVER R
3 -8	635-00004-004	STEPPED SCREW F8X2.3 M4X4.4
3 -9	050-12058-006	LEVER PFT COVER F
3 -10	050-12016-001	SIDE FRAME PFT F
3 -11	050-12018-004	STAY GUIDE PLATE
3 -12	050-12009-404	GUIDE PLATE LOWER
3 -13	050-12046-105	GUIDE BLOCK ELEVATOR
3 -14	050-12074-109	EXTENSION SHEET GUIDE PLATE LOWER
3 -15	023-12429-201	SPRING ANGLE ADG. STRIPPER
3 -16	023-12403-008	SPRING TENSION STRIPPER
3 -17	052-12011-004	BASE STRIPPER UNIT
3 -18	023-12431-001	GUIDE BLOCK FRONT STRIPPER UNIT
3 -19	023-12430-005	UNFIX LEVER STRIPPER UNIT
3 -20	052-12010-008	FIXED BLOCK
3 -21	023-12428-108	LOCK LEVER STRIPPER UNIT
3 -22	018-31614-001	GROUND SPRING ROLLER SYSTEM
3 -23	023-12412-007	ARM STRIPPER PRESSURE
3 -24	023-12402-109	BRACKET STRIPPER BASE
3 -25	023-12408-204	HOUSING STRIPPER RZ-L
3 -26	023-12404-101	SHAFT STRIPPER RZ-L
3 -27	019-11832-107	COVER F STRIPPER PAD
3 -28	019-11831-100	BASE F STRIPPER PAD
3 -29	019-11833-006	STRIPPER PAD 70
3 -30	635-00002-001	STEPPED SCREW F6X2.2 M4X2.5
3 -32	024-12403-005	CAM STRIPPER
3 -33	024-12405-008	STRIPPER ADJ ARM
3 -34	024-12406-004	PLATE STRIPPER SHAFT CATCH
3 -35	023-12409-308	WORM GEAR BOX STRIPPER UNIT
3 -36	023-12405-000	ADJ DIAL STRIPPER
3 -37	023-12404-206	SHAFT STRIPPER CAM
3 -38	050-79740-006	STUD_EXFEED
3 -39	052-75210-007	EXTERNAL PAPER FEED SU	ASSY of No.3-437/No.4-138
3 -40	024-75072-106	STRIPPER UNIT	ASSY of No.3-1537
3 -41	023-12434-000	STRIPPER ASSY RZ	ASSY of No.3-2526
3 -43	052-12013-007	BRACKET STRIPPER SAFE SW
3 -44	052-12016-006	SW BASE PLATE STRIPPER SAFE SW
3 -45	052-12015-000	SW LEVER STRIPPER SAFE SW
3 -46	052-12019-005	SW COVER PLATE STRIPPER SAFE SW
3 -47	023-53024-100	DRUM SAFETY SW
3 -48	023-28403-105	SPRING SAFETY SW
3 -49	024-28059-100	BRACKET SAFETY SW

1st Paper Feed (2)

Ref.	Партс код	Наименование
4 -1	050-12008-009	STAY 1ST PAPER FEED
4 -2	050-12007-002	ARM P.-F.PRESSURE ADJ.
4 -3	635-00001-005	STEPPED SCREW F6X1.8 M3X4
4 -4	023-12313-106	SPRING PF PRESSURE ADJ. LEVER
4 -5	050-12006-006	P.-F. PRESSURE ADJ. LEVER
4 -6	020-11811-208	SPRING B P.-F.PRESSURE ADJ.
4 -7	050-12014-009	UPPER GUARD
4 -8	635-00004-004	STEPPED SCREW F8X2.3 M4X4.4
4 -9	023-12344-001	SPRING ELEVATOR SAFETY SW UPPER
4 -10	050-12012-006	E SW PLATE
4 -11	023-53023-104	ELEVATOR SAFETY SW
4 -12	021-51030-109	PUSH BUTTON SW ASSY 2
4 -13	050-12005-000	BRACKET A UPPER LIMIT SENSOR
4 -14	046-12301-005	BRACKET B UPPER LIMIT SENSOR
4 -15	046-12302-001	SUPPORT PLATE UPPER LIMIT SENSOR
4 -17	030-14347-002	BASE UPPER LIMIT ADJ. SCREW
4 -18	023-12325-007	BRACKET UPPER LIMIT SENSOR
4 -19	444-30008-100	SENSOR LG248NL1
4 -20	050-12003-104	FRAME BRACKET PICK-UP
4 -21	023-12308-005	ACTUATOR UPPER LIMIT CARD P.-F.-T
4 -22	023-12334-006	ACTUATOR UPPER LIMIT STD P.-F.-T
4 -23	052-12001-009	PAPER GUIDE ROLLER
4 -24	000-06123-104	STOPPER PAPER GUIDE ROLLER
4 -25	612-11300-107	GEAR M0.8X34X8.5
4 -26	607-16001-000	METAL F10X15/14X6 18X2
4 -27	019-11812-106	LOCK RING
4 -28	023-12330-000	SCRAPER SHAFT PICKUP
4 -29	035-14303-001	RUBBER PICK-UP ROLLER
4 -30	021-14302-204	CORE PICK-UP ROLLER
4 -31	052-75201-008	SHAFT PICK-UP ROLLER SU
4 -32	612-10021-107	GEAR M0.8X33X7.4
4 -33	052-12009-000	SUPPORT PICK-UP ROLLER SHAFT
4 -34	052-12003-001	PICK-UP COVER 2
4 -35	052-53009-006	WIRE HARNESS O-PFUNIT
4 -36	050-12906-104	JUNCTION HARNESS UPPER LIMIT SENS
4 -37	030-04034-006	SEAL P.-F.-T DOWN
4 -38	050-12013-002	COVER P.-FEED
4 -39	550-21173-001	SEAL : P.-FEED PRESSURE PIC
4 -41	052-75210-007	EXTERNAL PAPER FEED SU
4 -42	021-14301-208	PICK-UP ROLLER

Internal Paper Feed Tray

Ref.	Партс код	Наименование
5 -1	050-79714-102	BRACKET_TR_R
5 -2	050-79713-106	BRACKET_TR_L
5 -3	052-75223-303	TRAY UNIT SU
5 -4	052-65012-002	MAIN UNIT TRAY
5 -5	050-65508-003	END FENCE
5 -6	052-65009-001	SLIDER PAPER SIZE DET
5 -7	050-65539-103	RACK PAPER SIZE DET
5 -8	030-21306-001	L.O. SHEET
5 -9	050-65506-108	GUIDE FENCE F
5 -10	050-65511-004	SPRING GUIDE FENCE F
5 -11	050-65510-008	LEVER GUIDE FENCE
5 -12	052-65014-005	TRAY CATCH
5 -13	612-10060-005	GEAR M1X36X4
5 -14	050-65516-103	SECTOR GEAR SIZE DET.
5 -15	050-65582-106	GEAR COVER
5 -16	050-65534-101	CENTER GEAR
5 -17	052-65083-007	DRIVE GEAR BOTTOM PLATE2
5 -18	052-65007-009	MID SHAFT BOTTOM PLATE
5 -19	052-65006-002	MID GEAR BOTTOM PLATE
5 -20	050-65546-100	SHIELD PLATE PAPER VOLUME
5 -21	050-65536-007	INTERLOCK PUSHER
5 -22	050-65507-007	GUIDE R
5 -23	050-65513-201	LOCK GUIDE
5 -24	050-65512-108	LEVER GUIDE R
5 -25	052-65004-000	BRACKET BOTTOM PLATE TRAY
5 -26	050-65505-004	SHAFT BOTTOM PLATE TRAY
5 -27	052-65008-005	BOTTOM PLATE TRAY
5 -28	050-65533-105	SUPPORT SHAFT BOTTOM PLATE
5 -29	050-65545-006	SEAL PAPER LENGTH
5 -30	052-65001-000	SEAL GUIDE
5 -31	050-65540-004	SPRING SIZE DET.
5 -32	052-65013-009	ROLLER TRAY RAIL
5 -33	052-65071-009	BRACKET ELEVATOR TRAY
5 -34	050-74044-001	445 CCW MOTOR
5 -35	052-65064-100	PAPER GUIDE
5 -36	052-65023-004	COUPLING 2 ELEVATOR MOTOR
5 -37	052-65022-008	CASE 2 COUPLING
5 -38	050-65563-101	JOINT SPRING
5 -39	052-65024-000	COVER PLATE P-VOLUME DET SENSOR
5 -40	444-30010-007	SENSOR LG285D1
5 -42	023-28403-105	SPRING SAFETY SW
5 -43	024-28059-100	BRACKET SAFETY SW
5 -44	023-53026-103	DRIVE INTERLOCK SAFETY SW
5 -45	050-65562-105	COVER E MOTOR
5 -46	612-80052-000	GEAR M0.8X31+M0.8X14
5 -47	612-80012-008	GEAR M0.8X30+M0.8X14
5 -49	052-65021-001	JOINT GEAR DRIVE
5 -50	612-80052-000	GEAR M0.8x31+M0.8x14
5 -51	612-80038-007	GEAR M0.8X34+M0.8X18
5 -52	651-00082-009	GEAR M0.8X37+M1X15G
5 -53	651-00083-005	GEAR M0.8X36+M0.8X14G
5 -54	052-65034-006	TRAY RAIL L
5 -55	052-65066-005	COVER PLATE MAINTENANCE ARM
5 -56	052-65025-007	BRACKET PAPER SIZE DET. SENSOR
5 -57	444-30008-100	SENSOR LG248NL1
5 -58	050-65916-101	WIRE HARNESS TRAY PAPER SIZE SENSOR
5 -59	052-65029-002	TRAY RAIL R
5 -60	052-65026-003	STOPPER R TRAY RAIL
5 -61	052-65028-006	COVER PLATE P-SIZE DET SENSOR
5 -62	052-65027-000	GUIDE R TRAY RAIL
5 -63	052-65033-000	STOPPER L TRAY RAIL
5 -64	052-65037-005	GUIDE L TRAY RAIL
5 -65	052-65017-004	ARM TRAY CATCH
5 -66	052-65019-007	SPRING TRAY CATCH
5 -67	052-65016-008	PIVOT TRAY CATCH
5 -68	052-65018-000	SHAFT TRAY CATCH
5 -69	052-65015-001	BRACKET TRAY CATCH
5 -70	050-79774-008	COVER_TR_SET
5 -71	050-65543-100	SEAL PAPER SIZE
5 -72	050-65542-007	SEAL TRAY NO.
5 -73	052-75229-000	TRAY ELEVATOR MOTOR ASSY SU
5 -74	052-75222-005	TRAY RAIL ASSY SU

Internal Paper Feed Unit

Ref.	Партс код	Наименование
6 -1	N/A
6 -2	635-00004-004	STEPPED SCREW F8X2.3 M4X4.4
6 -3	050-65418-004	PLATE SCRAPER RELEASE
6 -4	050-65416-001	SPRING SCRAPER PRESSURE
6 -5	052-65043-005	SUB SIDE FRAME R INTERNAL
6 -7	607-15013-005	METAL F8X12/10X12 16X2
6 -8	052-65048-007	BRACKET UNIT FIX
6 -9	050-65335-001	SHAFT PICK-UP
6 -10	612-00008-102	GEAR M1X20X8
6 -12	050-65431-108	PU ARM ASSY INTERNAL
6 -13	050-65340-102	BRACKET PAPER FEED INTERNAL
6 -15	050-65358-001	PICK-UP ROLLER ASSY INTERNAL
6 -16	050-65336-008	SHAFT PICK-UP ROLLER
6 -17	030-21203-105	LOCK RING ROLLER
6 -18	052-65042-009	SUB SIDE FRAME F INTERNAL
6 -19	050-65407-100	STRIPPER PAD
6 -20	050-65348-103	HOLDER STRIPPER
6 -21	050-65426-104	STRIPPER ASSY INTERNAL
6 -23	050-65410-003	SPRING STRIPPER
6 -24	052-65038-001	FIXED BRACKET STRIPPER
6 -27	635-00004-004	STEPPED SCREW F8X2.3 M4X4.4
6 -28	635-00002-001	STEPPED SCREW F6X2.2 M4X2.5
6 -29	011-11514-000	CENTER GEAR
6 -30	050-65414-106	PLATE SCRAPER RELEASE
6 -31	050-65415-005	SPRING SCRAPER RELEASE
6 -32	050-65432-104	LEVER UPPER LIMIT ADJ.
6 -33	639-00001-004	WASHER 6X10X0.9
6 -36	050-65413-100	BRACKET PAPER DETECTION
6 -37	052-65062-000	ACTUATOR PAPER DETECTION
6 -38	050-65417-008	COLLAR 10X5.1X3
6 -39	050-65435-006	SHAFT ACTUATOR
6 -40	052-65063-103	ACTUATOR UPPER LIMIT
6 -41	050-65412-006	SHAFT UPPER LIMIT
6 -42	050-65350-000	SUPPORT PLATE STRIPPER BASE
6 -43	050-65411-000	SPRING STRIPPER ANGLE ADJ
6 -44	050-65419-000	LEVER STRIPPER PRESSURE RELEASE
6 -45	050-65421-005	DIAL STRIPPER ANGLE ADJ
6 -46	050-65409-005	CAM STRIPPER ANGLE ADJ
6 -47	444-30008-100	SENSOR LG248NL1
6 -48	052-53011-000	WIRE HARNESS PFUNITSNC
6 -49	052-75224-008	INTERNAL P.-F.-T. SU
6 -50	052-65065-009	COVER PLATE INTERNAL P-FEED
6 -51	052-65049-003	PAPER EJECT GUIDE
6 -52	052-75203-000	UPPER LIMIT ACTUATOR SU
6 -53	052-75204-007	PAPER DET ACTUATOR SU

Vertical Transfer Unit A

Ref.	Партс код	Наименование
7 -1	050-65399-107	SHAFT JAM RELEASE
7 -2	050-65201-102	HOOK JAM RELEASE
7 -3	050-65302-405	DRIVEN ASSY VERTICAL TRANSFER UNI
7 -4	050-65398-100	LEVER JAM RELEASE
7 -5	050-65213-003	SEAL JAM RELEASE
7 -6	050-62180-007	LEVER LOCK EJECTION
7 -7	050-65388-105	BRACKET VERTICAL TRANSFER UNIT A
7 -8	050-65387-001	GUIDE JAM RELEASE LEVER
7 -9	050-65389-004	BRACKET GUIDE SUPPORT SHAFT F
7 -10	050-65390-002	BRACKET GUIDE SUPPORT SHAFT R
7 -11	444-33013-007	SENSOR PS124TD1
7 -12	052-65053-000	ROLLER 5 VERTICAL TRANSFER
7 -13	601-10195-004	BEARING DDLF-1910ZZR
7 -15	050-64328-206	SOCKET DRIVEN ROLLER
7 -16	050-65206-007	VERTICAL TRANSFER DRIVEN ROLLER
7 -17	050-55246-108	SHAFT DRIVEN ROLLER 2
7 -18	050-65214-000	SPRING VERTICAL TRANSFER UNIT A
7 -19	050-65377-308	BASE BRACKET DRIVEN ROLLER VTA
7 -20	050-65901-007	WIRE HARNESS VERTICAL TRANSFER U
7 -21	050-64369-000	SOCKET STOPPER
7 -22	052-75221-009	VERTICAL TRANSFER UNIT A SU
7 -23	050-75012-006	VT DRIVEN ROLLER ASSY SU
7 -24	050-65218-005	GUIDE SHEET VERTICAL A

Vertical Transfer Unit B (1)

Ref.	Партс код	Наименование
8 -1	052-65059-009	TRAY 3 TRANSFER GUIDE UPPER
8 -2	050-64328-206	SOCKET DRIVEN ROLLER
8 -3	050-65206-007	VERTICAL TRANSFER DRIVEN ROLLER
8 -4	050-55246-108	SHAFT DRIVEN ROLLER 2
8 -5	050-64307-101	SPRING TRANSFER SWITCHBACK
8 -6	052-65060-007	TRAY 3 TRANSFER GUIDE LOWER
8 -8	050-64344-007	BRACKET SPRING
8 -9	050-65209-103	SPRING RELEASE LEVER VTB
8 -10	050-64342-101	JAM RELEASE HOOK SWITCHBACK A
8 -11	050-64343-000	JAM RELEASE LEVER SWITCHBACK A
8 -12	050-65391-009	LOWER COVER TRANSFER GUIDE TRAY3
8 -13	050-65394-008	LOWER MOVABLE COVER TRANSFER GUID
8 -14	050-65395-004	SPRING LOWER MOVABLE COVER
8 -15	050-64369-000	SOCKET STOPPER
8 -16	050-65212-007	SEAL RELEASE LEVER
8 -18	052-75225-004	VERTICAL TRANSFER UNITB SU
8 -19	052-75202-004	VERTICAL TRANSFER B JAM RELEASE SU
8 -20	050-75012-006	VT DRIVEN ROLLER ASSY SU
8 -21	050-65375-003	NOISE REDUCTION SPONGE

Vertical Transfer Unit B (2)

Ref.	Партс код	Наименование
9 -2	651-00092-004	PULLEY 22S3M+30S2M
9 -3	621-00008-004	BELT 60-S2M-212
9 -4	639-00007-002	WASHER 8X22X1.5
9 -5	607-15016-004	METAL F8X11/10X5.5
9 -6	621-00014-004	BELT 60-S2M-260
9 -10	050-65108-005	ROLLER 1 VERTICAL TRANSFER
9 -11	050-64328-206	SOCKET DRIVEN ROLLER
9 -12	050-65206-007	VERTICAL TRANSFER DRIVEN ROLLER
9 -13	050-55246-108	SHAFT DRIVEN ROLLER 2
9 -14	050-64307-101	SPRING TRANSFER SWITCHBACK
9 -15	050-65320-004	TRANSFER GUIDE ASSY TRAY 2
9 -17	444-33013-007	SENSOR PS124TD1
9 -18	050-64312-300	BASE BRACKET DRIVEN ROLLER SWIT
9 -19	052-65058-002	TRANSFER GUIDE DRIVEN TRAY2
9 -20	052-65061-003	JUNCTION PLATE LEFT
9 -21	052-65067-001	TRANSFER GUIDE DRIVEN TRAY1
9 -22	050-65365-008	TRANSFER GUIDE TRAY1
9 -23	050-65318-000	TRANSFER GUIDE DRIVEN TRAY3
9 -25	050-65311-102	SPRING 750G
9 -26	050-65918-007	WIRE HARNESS INTERNAL TRANSFER SE
9 -27	050-65919-003	WIRE HARNESS INTERNAL TRANSFER SE
9 -28	050-65917-108	WIRE HARNESS INTERNAL TRANSFER SE
9 -29	050-65392-005	COVER WIRE HARNESS
9 -30	050-65210-004	SPRING SAFETY SW VERTICAL TRANS
9 -31	024-28059-100	BRACKET SAFETY SW
9 -32	023-53026-103	DRIVE INTERLOCK SAFETY SW
9 -33	050-65110-000	ROLLER 3 VERTICAL TRANSFER
9 -34	050-65111-006	ROLLER 4 VERTICAL TRANSFER
9 -35	050-65304-009	TRANSFER GUIDE ASSY TRAY 3
9 -36	050-65920-303	JUNCTION WIRE HARNESS INTERNAL PA
9 -37	050-64369-000	SOCKET STOPPER
9 -38	611-90048-003	PULLEY S2M-30
9 -41	050-12519-003	DIAL JAM RELEASE
9 -42	050-65211-000	JAM DIAL RELEASE SEAL VERTICAL TRA
9 -43	052-75225-004	VERTICAL TRANSFER UNIT B SU
9 -44	050-75012-006	VT DRIVEN ROLLER ASSY SU
9 -45	050-75022-001	DIAL B JAM RELEASE ASSY

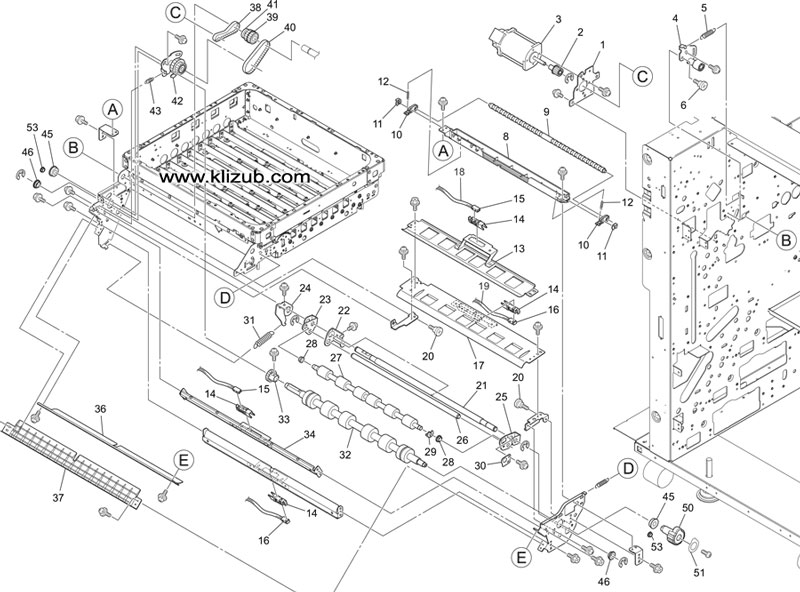

2nd Paper Feed

Ref.	Партс код	Наименование
10 -1	050-12533-006	BRACKET RESIST MOTOR
10 -2	611-90032-000	PULLEY S2M-28
10 -3	490-20007-108	MOTOR TD3357-240
10 -4	050-79686-001	RST_TENTIONER_1_ASSY
10 -5	050-79690-009	SPRING_RST_1
10 -6	635-00001-005	STEPPED SCREW F6X1.8 M3X4
10 -8	052-12020-003	BU GUIDE PLATE
10 -9	050-12520-001	SS ROLLER
3 -36	052-12023-002	RE-FEED GUIDE
3 -37	052-12022-006	GUIDE PLATE VERTICAL TRANSFER
3 -38	621-00012-001	BELT 70-S2M-160
3 -39	050-79692-001	PULLY_S2M41_AS
3 -40	621-00013-008	BELT 70-S2M-202
3 -41	050-79691-005	PULLY SPACER
3 -42	050-79687-008	RST_TENTIONER_2_ASSY
3 -43	050-79688-004	SPRING_RST_2
3 -45	601-10195-004	BEARING DDLF-1910ZZR
3 -46	607-16001-000	METAL F10X15/14X6:18X2
3 -47	050-79872-000	WIRE HARNESS OR2REGLED
3 -48	050-79873-006	WIRE HARNESS OR2REGVOUT
3 -50	050-12519-003	DIAL JAM RELEASE
3 -51	050-12545-004	JAM DIAL RELEASE SEAL TIMING ROLLE
3 -53	050-19082-000	COLLOR BEARING_STOPPER
3 -54	050-75114-003	RESIST MOTOR ASSY SU
3 -55	052-75226-000	SS ROLLER ASSY SU
3 -56	050-75115-107	PLATE RESIST GUIDE SU
3 -57	052-75211-003	GUIDE ROLLER ASSY SU
3 -58	050-75139-006	TIMING ROLLER ASSY SU
3 -59	050-75018-004	DIAL A2 JAM RELEASE
10 -10	050-12523-205	SS ROLLER ARM
10 -11	023-17197-007	LOCK RING 4
10 -12	050-12535-009	SPRING SS ROLLER
10 -13	050-12516-306	GUIDE PLATE UPPER
10 -14	050-12528-002	COVER SENSOR
10 -15	444-32007-003	SENSOR OF-11R1-N23(RESIVE)
10 -16	444-32006-007	SENSOR OF-11T-N23(SEND)
10 -17	050-12511-100	GUIDE PLATE MIDDLE
10 -18	050-12919-001	WIRE HARNESS RESIST C
10 -19	050-12909-308	WIRE HARNESS RESIST B
10 -20	635-17423-108	STEPPED SCREW F4X2.2 M3X4
10 -21	052-12167-004	SUPPORT SHAFT GUIDE ROLLER
10 -22	050-12501-007	PRESSURE PLATE GUIDE ROLLER
10 -23	052-12169-007	SUPPORT PLATE R GUIDE ROLLER
10 -24	050-12508-001	BRACKET GUIDE ROLLER
10 -25	052-12171-001	SUPPORT PLATE F GUIDE ROLLER
10 -26	052-12168-000	PRESSURE SHAFT GUIDE ROLLER
10 -27	023-12511-307	GUIDE ROLLER
10 -28	600-50057-006	BEARING FLAW678ZZA
10 -29	023-12519-006	LOCK RING
10 -30	052-12172-008	PLATE GUIDE ROLLER ADJ.
10 -31	050-79689-000	GUIDE_ROLL_SPRING
10 -32	050-12510-103	TIMING ROLLER
10 -33	612-10065-007	GEAR M1X26X6

CCD Unit (Side Registration Area)

Ref.	Партс код	Наименование	Примечание
11 -1	050-18009-007	BLADE PAPER LIFT DET
11 -2	050-18010-102	BASE PAPER LIFT DET
11 -3	050-18006-300	PAPER DET. FRAME
11 -4	050-18007-004	SPRING PAPER DET
11 -5	050-18004-005	GATE ARM PAPER DET
11 -7	050-18014-000	SENSOR COVER
11 -8	050-18005-109	BRACKET PAPER LIFT DET SENSOR
11 -9	444-60004-001	CIS U8R216-6494	(3 Series), 9,7 Series
11 -10	050-18001-103	CIS BASE BRACKET
11 -11	050-18002-100	CIS FIX PLATE	(3 Series), 9,7 Series
11 -12	444-30019-004	SENSOR LG248D2
11 -13	050-18904-103	WIRE HARNESS PAPER LIFT DET. SENSOR
11 -14	052-17001-007	ARM F CYAN PRE-GUIDE ROLLER
11 -15	052-17002-003	ARM R CYAN PRE-GUIDE ROLLER
11 -16	052-17003-000	CYAN PRE-GUIDE ROLLER
11 -17	050-18901-503	WIRE HARNESS PAPER POSITION DET	9,7 Series
11 -18	050-18905-100	WIRE HARNESS PAPER POSITION DET A4	3 Series
11 -19	050-79722-008	BP_SHAFT
11 -20	444-30008-100	SENSOR LG248NL1
11 -21	050-18014-000	SENSOR COVER
11 -22	050-79720-005	BRACKET_BP_G_RAIL
11 -23	050-79723-004	GUIDE_RAIL_BP
11 -24	050-79881-009	WIRE HARNESS BPELSNS
11 -25	050-79677-002	BRACKET_BP_SENSOR
11 -26	050-79721-001	BP_BRACKET
11 -27	052-75213-006	PAPER POSITION DET ASSY SU	ASSY of No.11-117
11 -28	052-75208-002	PAPER POSITION DET L ASSY SU	ASSY of No.11-116,18

BP Unit (1)

Ref.	Партс код	Наименование
12 -1	050-19018-204	PLATEN
12 -2	050-19066-209	PLATEN PLATE
12 -3	050-19080-007	BP AIR SEAL A
12 -4	050-19081-003	BP AIR SEAL B
12 -7	050-19047-000	BP WIRE HARNESS SET PLATE
12 -8	050-19020-101	BP FRAME
12 -10	050-19103-007	FAN COVER U
12 -11	490-41014-104	FAN E1033H24BYAZ
12 -12	050-19104-003	FAN COVER L
12 -13	635-17523-102	STEPPED SCREW F5X2 M3X3
12 -14	050-75056-100	TRANSFER BELT SU
12 -15	050-19105-000	FAN GUIDE SEAL
12 -16	050-19078-002	FAN VIBRATION ABSORB SEAL
12 -17	050-19901-302	WIRE HARNESS BP INNER
12 -18	052-19001-004	INSULATION PLATE BP
12 -19	052-75212-107	BELT PLATEN UNIT SU

BP Unit (2)

Ref.	Партс код	Наименование
13 -1	050-19021-302	BP SIDE FRAME
13 -2	050-19095-004	STAY A BP FRAME
13 -3	050-19006-206	TENSION ROLLER
13 -4	050-19002-103	BELT DRIVEN ROLLER
13 -5	050-19096-000	STAY B BP FRAME
13 -6	050-19005-005	IDLER ROLLER
13 -7	050-19097-007	STAY C BP FRAME
13 -8	050-19003-304	BELT DRIVE ROLLER
13 -9	050-19042-105	BP PAPER GUIDE
13 -10	050-19004-009	BELT FLANGE
13 -11	050-19076-000	REINFORCE PLATE BP SIDE FRAME
13 -12	600-08168-205	BEARING SC890ZZNR
13 -13	601-10195-004	BEARING DDLF-1910ZZR
13 -14	050-19070-001	ADJ. PLATE PLATEN
13 -15	050-19022-007	WIRE HOOK A
13 -16	050-19073-000	BP POSITION PLATE A
13 -17	050-19023-003	WIRE HOOK B
13 -19	050-19029-001	SPRING BP POSITION
13 -20	050-19075-003	GUIDE PLATE BP POS. PLATE B
13 -21	050-19074-007	BP POSITION PLATE B
13 -22	050-19007-008	F TENSION ROLLER PLATE A
13 -23	050-19008-004	F TENSION ROLLER PLATE B
13 -24	050-19013-008	TENSION SPRING
13 -25	050-19012-001	SPRING BASE
13 -26	050-19009-000	SHAFT TENSION ROLLER PLATE
13 -27	611-90036-005	PULLEY 59S2M10
13 -28	621-00011-005	BELT 80-S2M-230
13 -29	050-19090-002	TENSIONER PLATE
13 -30	050-19086-005	BRACKET BP MOTOR
13 -31	490-20008-104	MOTOR BH80BT50-01
13 -32	050-19010-009	R TENSION ROLLER PLATE A
13 -33	050-19099-107	SET SPRING ENCODER UNIT
13 -34	050-19039-007	ENCODER CASE
13 -35	050-19037-004	ENCODER SHAFT
13 -36	050-19036-202	ENCODER 780
13 -37	600-00005-005	BEARING W678ZZ
13 -38	050-19038-108	ENCODER SLEEVE
13 -39	050-19040-005	ENCODER COVER
13 -40	444-40001-103	BP ENC-PCB
13 -41	050-19025-006	WIRE HOOK D
13 -42	634-00005-003	COLLAR 8x4
13 -43	050-19053-000	BP GUIDE ROLLER
13 -44	050-19113-002	BP GUIDE PLATE II
13 -46	050-19024-000	WIRE HOOK C
13 -47	611-90035-009	PULLEY 21S2M10
13 -48	050-19094-105	IDLER TENSION SPRING
13 -50	050-19045-007	BRACKET BP WIRE HARNESS
13 -51	050-19901-108	WIRE HARNESS BP INNER
13 -52	050-19011-005	R TENSION ROLLER PLATE B
13 -53	050-19902-201	WIRE HARNESS BP ENCODER
13 -54	050-19082-000	COLLOR BEARING_STOPPER
13 -55	444-30017-109	OJ-611-A8
13 -56	017-13258-101	DE-ELECTRICITY BRUSH SUCTION
13 -57	050-19065-008	BP FRONT COVER
13 -58	050-75009-005	BP POSITION PLATE A ASSY
13 -59	050-75010-003	BP POSITION PLATE B ASSY
13 -60	050-75008-106	BP MOTOR ASSY
13 -61	050-75007-002	ENCODER ASSY
13 -62	052-75212-000	BELT PLATEN UNIT SU

Paper Elevation Area

Ref.	Партс код	Наименование
14 -1	050-55206-009	PAPER ELEVATION GUIDE U DRIVE
14 -2	050-55203-107	PAPER ELEVATION GUIDE U DRIVEN
14 -3	052-55018-002	DRIVEN ROLLER BASE P-ELEVATION
14 -4	052-55016-107	SOCKET DRIVEN ROLLER 2
14 -6	050-55252-108	DRIVEN ROLLER 3
14 -7	050-55259-005	SPRING PAPER ELEVATION
14 -8	050-55121-100	UPPER TRANSFER DRIVE ROLLER 1
14 -9	050-55127-001	UPPER TRANSFER DRIVE ROLLER 2BR
14 -10	050-55256-103	SHAFT SOCKET PLATE 2
14 -11	600-50057-006	BEARING FLAW678ZZA
14 -12	050-55207-307	PAPER ELEVATION GUIDE M DRIVE
14 -13	050-55118-002	GROUND PLATE 3
14 -14	050-55208-001	RELEASE LEVER PAPER ELEVATION
14 -15	050-55209-008	RELEASE LEVER SPRING P-ELEVATION
14 -16	050-55219-208	SIDE FRAME R PAPER ELEVATION
14 -17	050-55217-205	SIDE FRAME F PAPER ELEVATION
14 -18	600-50057-006	BEARING FLAW678ZZA
14 -19	050-55229-084	PENSIONER BRACKET P-ELEVATION
14 -20	635-00001-005	STEPPED SCREW F6X1.8 M3X4
14 -21	050-55228-002	PENSIONER SPRING
14 -22	611-90031-003	IDLER PULLEY S2M-24
14 -23	621-00009-000	BELT 60-S2M-344
14 -24	613-00003-000	PULLEY M1X22+30S2M
14 -25	050-55204-006	RELEASE LEVER GUIDE U
14 -26	050-55215-202	PAPER ELEVATION GUIDE L DRIVE
14 -27	050-55222-101	PAPER ELEVATION GUIDE L DRIVEN
14 -28	050-55214-001	SENSOR BRACKET IN SENSOR
14 -29	444-33013-007	SENSOR PS124TD1
14 -30	050-55903-001	WIRE HARNESS PAPER ELEVATION
14 -31	050-55403-009	RELEASE LEVER SEAL P-ELEVATION
14 -32	651-00098-002	BEARING 685ZZA
14 -33	052-55001-002	JAM RELEASE LEVER SEAL P-ELEVATION
14 -34	052-55017-006	SOCKET STOPPER 2
14 -35	050-12519-089	DIAL JAM RELEASE
14 -36	050-55401-006	JAM RELEASE DIAL SEAL P-ELEVAT
14 -37	052-75216-005	PAPER ELEVATION UNIT SU
14 -38	050-75020-009	DIAL C2 JAM RELEASE ASSY

Upper Transfer Unit

Ref.	Партс код	Наименование
15 -1	050-55201-007	UPPER TRANSFER GUIDE DRIVE
15 -2	052-55022-000	UPPER TRANSFER DIAL ROLLER 2
15 -3	052-55023-006	UPPER TRANSFER ROLLER 2
15 -4	050-55256-103	SHAFT SOCKET PLATE 2
15 -5	600-50057-006	BEARING FLAW678ZZA
15 -6	611-90030-104	PULLEY S3M-16
15 -7	639-00008-009	WASHER 6X19X1P
15 -8	629-00007-006	BELT 60-S3M-297
15 -9	050-15112-109	DRIVE COUPLER
15 -10	050-55232-000	JAM RELEASE DIAL2
15 -11	050-55402-002	JAM RELEASE DIAL SEAL UPPER TR
15 -12	050-55241-300	PRESS PLATE UPPER TRANSFER
15 -13	050-55242-005	PRESS ADJ SPRING
15 -14	050-55116-107	GROUND PLATE 1
15 -15	050-64328-206	SOCKET DRIVEN ROLLER
15 -16	050-64307-101	SPRING TRANSFER SWITCHBACK
15 -17	052-55021-100	SPRING 910G
15 -18	052-55014-007	DRIVEN ROLLER 4
15 -19	050-64369-000	SOCKET STOPPER
15 -20	030-21203-105	LOCK RING ROLLER
15 -21	050-55202-305	UPPER TRANSFER GUIDE DRIVEN
15 -22	052-55003-005	LEVER SEAL UPPER TRANSFER
15 -23	050-55234-002	CONNECT SHAFT JAM RELEASE
15 -24	050-65580-200	TRAY RAIL 2
15 -25	050-79719-007	LOCK_ASSY
15 -26	050-55205-002	BRACKET FLIPPER SENSOR
15 -27	444-33012-000	SENSOR GP2A210LCSJF
15 -28	050-55904-105	WIRE HARNESS UPPER TRANSFER
15 -29	050-79715-001	STOPPER_TR1
15 -30	052-75215-009	UPPER TRANSFER UNIT SU
15 -32	050-75138-000	FLIPPER SENSOR ASSY SU
15 -33	050-75021-102	DIAL D2 JAM RELEASE
15 -34	050-55260-003	STOPPER UPPER TRANSFER
15 -35	050-55261-000	STOPPER CUSHION UPPER TRANSFER
15 -36	050-55262-006	SPACER UPPER TRANSFER
15 -37	635-00424-003	THUMBSCREW M4X10
15 -38	052-55002-009	STOPPER SEAL UPPER TRANSFER

Switchback Unit B

Ref.	Партс код	Наименование
16 -1	050-64308-108	SWITCHBACK GUIDE DRIVE
16 -2	611-90028-002	PULLEY S3M-18
16 -3	607-15016-004	METAL F8X11/10X5.5
16 -4	050-64107-005	UPPER TRANSFER DRIVE ROLLER 6
16 -5	050-64362-005	HOOK CATCH SWITCHBACK B
16 -6	050-64323-000	SENSOR BRACKET OUT SENSOR
16 -7	444-33013-007	SENSOR PS124TD1
16 -8	050-64361-009	HINGE SWITCHBACK B
16 -9	050-64306-300	SWITCHBACK GUIDE DRIVEN
16 -10	052-55014-007	DRIVEN ROLLER 4
16 -11	050-64328-206	SOCKET DRIVEN ROLLER
16 -12	050-64371-004	SOCKET STOPPER R SWITCHBACK
16 -13	050-55249-107	SPRING DRIVEN ROLLER
16 -14	050-64320-000	RELEASE LEVER SWITCHBACK B
16 -15	050-64364-008	RELEASE LEVER SEAL SWITCHBACK B
16 -16	050-64319-002	RELEASE LEVER SPRING SWITCHBACK B
16 -17	050-64903-103	WIRE HARNESS SWITCHBACK B
16 -18	050-64370-008	SOCKET STOPPER F SWITCHBACK
16 -19	052-75218-008	SWITCHBACK UNIT B SU

Switchback Unit A

Ref.	Партс код	Наименование
17 -1	050-64326-009	SIDE FRAME R SWITCHBACK A
17 -2	050-64332-203	SIDE FRAME F SWITCHBACK A
17 -3	050-64106-106	RE-FEED DRIVE ROLLER
17 -4	607-15016-004	METAL F8X11/10X5.5
17 -5	052-64011-002	GATE STOPPER
17 -6	052-64010-006	GATE LEVER
17 -7	052-64007-005	SWITCHBACK GUIDE DRIVEN
17 -8	050-64328-206	SOCKET DRIVEN ROLLER
17 -9	052-55014-007	DRIVEN ROLLER 4
17 -10	050-64369-000	SOCKET STOPPER
17 -11	050-55249-107	SPRING DRIVEN ROLLER
17 -12	052-64018-007	SOCKET DRIVEN ROLLER SB
17 -13	052-64001-007	SWITCHBACK DRIVE ROLLER
17 -14	607-13000-402	METAL F6X10/9X6:12X1.5
17 -15	052-75209-009	GATE SHAFT SU
17 -16	052-64009-008	GATE
17 -17	023-28403-105	SPRING SAFETY SW
17 -18	024-28059-100	BRACKET SAFETY SW
17 -19	023-53026-103	DRIVE INTERLOCK SAFETY SW
17 -20	050-64337-000	BRACKET SB SENSOR
17 -21	444-33013-007	SENSOR PS124TD1
17 -22	052-64006-009	SWITCHBACK GUIDE DRIVE
17 -23	612-00016-008	GEAR M1X24X8
17 -24	050-64334-109	FULCRUM SHAFT COVER
17 -25	050-64316-003	COVER SWITCHBACK
17 -26	050-64302-100	RE-FEED GUIDE DRIVEN
17 -27	050-64321-104	RE-FEED GUIDE U DRIVE
17 -28	050-64312-407	BASE BRACKET DRIVEN ROLLER SWIT
17 -29	050-64313-004	GATE SPRING
17 -30	050-64345-003	BRACKET JAM RELEASE SHAFT
17 -31	050-64331-002	ASSIST GUIDE
17 -32	660-00002-004	MAGNET CATCH SM50-P
17 -33	050-64342-101	JAM RELEASE HOOK SWITCHBACK A
17 -34	050-64349-009	RELEASE LEVER SPRING SWITCHBACK A II
17 -35	050-64902-000	WIRE HARNESS 2 SWITCHBACK A
17 -36	050-64341-105	RELEASE LEVER SHAFT SWITCHBACK A
17 -37	050-64343-000	JAM RELEASE LEVER SWITCHBACK A
17 -38	050-64365-004	RELEASE LEVER SEAL SWITCHBACK A
17 -39	050-64901-208	WIRE HARNESS 1 SWITCHBACK A
17 -40	050-12519-003	DIAL JAM RELEASE
17 -41	050-64363-001	JAM RELEASE DIAL SEAL SB A
17 -42	050-79725-007	COVER_CABLE
17 -43	052-75217-001	SWITCHBACK UNIT A SU
17 -44	050-75001-004	SWITCH BACK COVER ASSY
17 -45	052-75200-001	GATE ASSY SU
17 -46	050-75019-000	DIAL G JAM RELEASE ASSY

Face-Down Ejection Unit (1)

Ref.	Партс код	Наименование
18 -1	050-62176-000	FRAME PAPER EJECTION
18 -2	607-11003-005	METAL F4X6/5.6X5.9 9X1
18 -3	050-62058-309	LINK PLATE FLIPPER SOLENOID
18 -4	050-62175-003	FULCRUM PLATE EJECTION GUIDE
18 -5	050-62042-003	SOLENOID SPRING
18 -6	613-10006-008	PULLEY M1X20+32S2M
18 -7	621-00010-009	BELT 40-S2M-132
18 -8	639-00007-002	WASHER 8X22X1.5
18 -9	050-62381-002	SOCKET STOPPER F FD EJECT
18 -10	050-62174-104	FULCRUM BASE PLATE R
18 -11	052-62011-005	SOLENOID COVER
18 -12	490-50011-100	SOLENOID TDS-09AL-508
18 -13	050-62060-206	DE-ELECTRICITY BRUSH 314
18 -14	023-75907-006	SUCTION MOTOR CCWRS-55PH
18 -15	023-21342-305	SLIT
18 -16	050-62178-002	BRACKET FULL SENSOR
18 -17	444-33010-008	SENSOR PS119ED1
18 -18	444-30008-100	SENSOR LG248NL1
18 -19	050-62173-000	FULCRUM BASE PLATE F
18 -20	050-62027-004	SWITCHBACK GUIDE U
18 -21	050-62028-108	SWITCHBACK GUIDE L
18 -22	050-62015-502	FLIPPER FD SB
18 -23	050-62013-500	EJECTION GUIDE L
18 -24	050-62041-007	PRESS SPRING EJECTION
18 -25	444-33013-007	SENSOR PS124TD1
18 -27	050-62382-009	SOCKET STOPPER R FD EJECT
18 -28	050-64328-206	SOCKET DRIVEN ROLLER
18 -29	050-62012-104	EJECTION GUIDE U
18 -30	050-62180-007	LEVER LOCK EJECTION
18 -31	050-75066-009	JAM RELEASE SHAFT ASSY SU
18 -32	050-65201-102	HOOK JAM RELEASE
18 -33	050-62009-103	DRIVE ROLLER EJECTION
18 -34	050-55216-004	SHAFT SOCKET PLATE
18 -35	612-10066-003	GEAR M1X20X4
18 -36	607-15016-004	METAL F8X11/10X5.5
18 -37	050-62904-005	GROUND WIRE FD EJECTION
18 -38	050-62901-006	WIRE HARNESS FD EJECTION
18 -39	050-62905-109	WIRE HARNESS FD EJECT. SENSOR
18 -40	052-62012-001	SOLENOID CUSHION
18 -41	052-62013-008	CUSHION COVER PLATE
18 -42	052-62003-002	EJECTION DRIVEN WING ROLLER
18 -43	651-00097-006	WASHER 6.2X9.5X0.5
18 -44	052-62004-009	EJECTION DRIVEN ROLLER
18 -45	052-62014-101	FLIPPER CUSHION
18 -46	052-62002-006	END WALL
18 -47	050-65398-100	LEVER JAM RELEASE
18 -48	050-62064-007	SEAL JAM RELEASE LEVER
18 -49	050-79716-008	BRACKET_EXIT_R
18 -50	050-79717-004	BRACKET_EXIT_F
18 -51	050-79718-000	STUD_EXIT
18 -52	052-75220-002	FD PAPER EJECTION UNIT SU

Face-Down Ejection Unit (2)

Ref.	Партс код	Наименование
19 -1	050-62001-102	FENCE UNIT BASE
19 -2	050-62021-200	BRACKET FENCE MOTOR
19 -3	612-10067-000	GEAR M1X48+M1X18
19 -4	612-10068-006	GEAR M0.5X90+M1X26
19 -5	490-33015-100	MOTOR PM42L-048-ZVS6
19 -6	042-30067-002	RACK
19 -7	050-62035-007	BRACKET FENCE HP SENSOR
19 -8	444-30008-100	SENSOR LG248NL1
19 -9	050-62057-000	FENCE UNIT COVER PLATE
19 -10	052-62016-007	FD FENCE F
19 -11	052-62017-003	FD FENCE R
19 -12	050-62902-002	WIRE HARNESS FD FENCE
19 -13	052-62022-007	SUB FENCE F FD
19 -14	052-62021-000	SUB FENCE R FD
19 -15	050-62050-006	BRACKET F FD FENCE
19 -16	050-62051-100	BRACKET R FD FENCE
19 -17	050-62067-006	LIGHT ABSORBER STRIP 18x18
19 -18	699-04003-107	SHEET FRONT DOOR DET. SENSOR
19 -19	050-62904-005	GROUND WIRE FD EJECTION
19 -20	052-75219-004	FD FENCE UNIT SU

Drive Area (1)

Ref.	Партс код	Наименование
20 -2	651-00095-100	HELICAL GEAR 1x25+30S2M
20 -3	052-15059-008	BRACKET EXTERNAL TRANSFER
20 -4	651-00020-003	F8x12/10.8x14 16x2
20 -5	651-00085-008	HELICAL GEAR m1x24x8
20 -6	050-79742-009	SHAFT_PU_GR
20 -7	052-15057-005	BRACKET EXTERNAL FEED MOTOR
20 -8	490-20007-108	MOTOR TD3357-240
20 -9	607-15016-004	METAL F8X11/10X5.5
20 -10	651-00096-000	HELICAL GEAR m1x24x12
20 -11	052-15025-006	BELT 60-S2M-264
20 -13	621-00017-003	BELT 60-S3M-1119
20 -14	050-79752-004	PULLEY_S3M-27_SET
20 -15	611-00090-001	PULLEY S2M-30
20 -16	050-79756-000	SHAFT_IDL_2
20 -17	050-79753-000	STOPPER_CLT
20 -18	020-65009-504	PAPER FEED CLUTCH
20 -19	050-79745-008	PULLEY_23_38_AS
20 -20	050-79746-004	SHART_PL
20 -21	050-79748-007	IDL_26_AS
20 -22	050-79747-000	SHAFT_IDL
20 -24	052-15048-006	SHAFT VERTICAL FEED CLUTCH
20 -25	651-00089-003	PULLEY 30S3M
20 -26	607-15016-004	METAL F8X11/10X5.5
20 -27	050-79744-001	SHAFT_GR
20 -28	612-00014-005	GEAR M1X30X8
20 -29	050-15201-004	BRACKET INTERNAL P FEED MOTOR
20 -30	611-90024-007	PULLEY P24/36-S3M
20 -31	620-00019-009	BELT 60-S3M-141
20 -32	611-90027-103	PULLEY S3M-15
20 -33	490-20010-001	MOTOR DR-7638-075
20 -34	050-79755-003	TENSIONER_ASSY
20 -35	050-79754-007	SPRING_BLT
20 -36	635-00004-004	STEPPED SCREW F8X2.3 M4X4.4
20 -37	052-15045-007	SPRING VERTICAL FEED CLUTCH
20 -38	052-15050-000	COVER VERTICAL FEED CLUTCH
20 -39	052-15046-100	T. SHAFT VERTICAL FEED CLUTCH
20 -40	052-15049-002	SPRING HOOK PL V-FEED CLUTCH
20 -41	612-12208-107	GEAR M1X28X8
20 -42	052-75214-002	EXTERNAL PAPER FEED MOTOR SU
20 -43	050-75124-009	INTERNAL PAPER FEED MOTOR SU

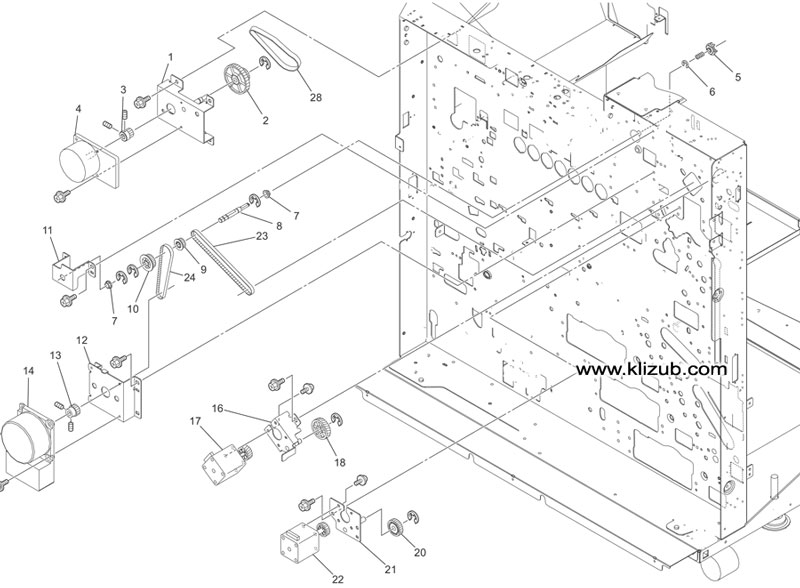

Drive Area (2)

Ref.	Партс код	Наименование
21 -1	050-15120-101	BRACKET UPPER TRANSFER MOTOR 1
21 -2	613-10017-000	PULLEY M1X22+90S
21 -3	611-90045-004	PULLEY S2M-25X12
21 -4	490-20009-003	MOTOR DR-6236-228
21 -5	050-15112-109	DRIVE COUPLER
21 -6	050-15143-004	DRIVE JOINT SPRING
21 -7	607-15016-004	METAL F8X11/10X5.5
21 -8	050-15111-102	SHAFT DRIVE JOINT
21 -9	611-90028-002	PULLEY S3M-18
21 -10	611-90023-000	PULLEY S2M-39
21 -11	050-79751-008	BRACKET DR
21 -12	050-15110-009	BRACKET UPPER TRANSFER MOTOR 2
21 -13	611-90026-107	PULLEY S2M-25
21 -14	490-20008-104	MOTOR BH80BT50-01
21 -15	050-75120-003	UPPER TRANSFER MOTOR 1 ASSY SU
21 -16	050-15106-001	BRACKET SWITCHBACK MOTOR
21 -17	490-31015-005	MOTOR KH42KM2R103B
21 -18	612-30003-008	HELICAL GEAR M1X34X9
21 -19	050-75142-007	DRIVE JOINT ASSY UPPER TR SU
21 -20	612-00014-005	GEAR M1X30X8
21 -21	050-15140-005	BRACKET RE-FEED MOTOR
21 -22	490-31014-009	MOTOR KH42KM2R103A
21 -23	621-00016-007	BELT 60-S3M-330
21 -24	621-00014-004	BELT 60-S2M-260
21 -25	050-75119-005	UPPER TRANSFER MOTOR 2 ASSY SU
21 -26	050-75122-006	SWITCHBACK MOTOR ASSY SU
21 -27	050-75121-000	RE-FEED MOTOR ASSY SU
21 -28	621-00008-004	BELT 60-S2M-212

BP Elevating Unit (1)

Ref.	Партс код	Наименование
22 -1	050-79658-008	STAR_WHEEL_ASSY
22 -2	050-79672-000	SHAFT_HOLDER
22 -3	050-79657-001	SW_SPRING
22 -4	052-75239-005	BP EL MOTOR ASSY SU
22 -5	050-79676-006	DRIVE_PLATE_COVER
22 -6	052-75238-009	WIRE DRIVE ASSY SU
22 -7	050-79880-002	WIRE HARNESS BPELMTR2
22 -8	050-79861-105	WIRE HARNESS RFDRV
22 -9	052-68021-002	JUNCTION GEAR BP EL MOTOR
22 -10	052-68020-006	GEAR BP EL MOTOR

BP Elevating Unit (2)

Ref.	Партс код	Наименование
23 -1	050-79710-000	ROLL_UP_SHAHUT
23 -3	050-79675-000	GEAR_M1.5Z20_SET
23 -4	651-00018-009	METALF8X13/12X5 16X2
23 -6	050-79694-004	T_LIMITTER_4000
23 -7	050-79699-103	WIRE_ASSY_L
23 -8	050-79700-101	WIRE_ASSY_R
23 -9	050-79708-005	T_LIMITTER_6000
23 -10	030-21203-105	LOCK RING ROLLER
23 -11	050-79709-001	LIMITER_STOPPER
23 -12	052-75237-002	GAP ADJUST SET
23 -13	050-79682-006	BP_ADJUST_ASSY
23 -14	050-79685-102	CNT_HOLDER
23 -15	052-68016-009	CONTACT SPRING
23 -16	050-79684-009	HOLD_CLIP
23 -17	050-79643-000	3ERING
23 -18	050-79698-000	CORNER_GUIDE
23 -19	050-79696-007	WIRE_GUIDE
23 -20	050-79711-006	GUIDE_PULLY
23 -21	050-79697-003	SPRING
23 -22	050-79883-001	MICRO SW WIRE SLACK
23 -23	050-79681-000	SCALE
23 -24	050-79891-004	WIPSNAP1 CBL
23 -25	050-79875-009	WIRSNAP CBL
23 -26	050-79885-101	WIRSLAKIF CBL
23 -27	052-68018-001	GROUND SHIELD L
23 -28	052-68019-008	GROUND SHIELD R
23 -29	050-79979-009	WIRE STOPPER N
23 -30	050-84697-003	HOLD BASE 2
23 -31	050-84680-003	HOLD BASE 1

Ink Cartridge Holder (1)

Ref.	Партс код	Наименование
24 -1	050-79624-006	CA_HOLDER_ASSY
24 -2	050-79634-001	FRAME_BRACKET_AS
24 -3	050-79637-000	GEAR_Z50
24 -4	050-79635-008	CA_CAM_SET
24 -5	050-79636-004	CA_MCTOR_ASSY
24 -6	023-75906-000	MOTOR ASSY(CWRS-445PA)
24 -7	444-30008-100	SENSOR LG248NL1
24 -8	050-79633-005	ARM_PLAET
24 -9	050-79638-007	GEAR_Z15_Z38
24 -10	050-79860-001	WIRE HARNESS INK HOLD UNIT
24 -11	050-79632-009	ARM_STOPPER
24 -12	042-24090-000	PLATE SPRING DISPOSAL BOX
24 -13	052-75231-004	CA HOLDER UNIT SU

Ink Cartridge Holder (2)

Ref.	Партс код	Наименование
25 -1	050-79626-009	CA_JOINT_K_SET
25 -2	050-79627-005	CA_JOINT_C_SET
25 -3	050-79628-001	CA_JOINT_M_SET
25 -4	050-79629-008	CA_JOINT_Y_SET
25 -5	050-79631-002	JOINT_SPRING
25 -6	050-79639-003	CA_PAN_SET
25 -7	050-75140-004	RFID PCB UNIT SU
25 -8	444-30008-100	SENSOR LG248NL1
25 -9	050-79860-001	WIRE HARNESS INK HOLD UNIT
25 -10	050-79625-100	SPRNG_SET
25 -11	050-79620-000	T_CLIP5
25 -12	052-75231-004	CA HOLDER UNIT SU

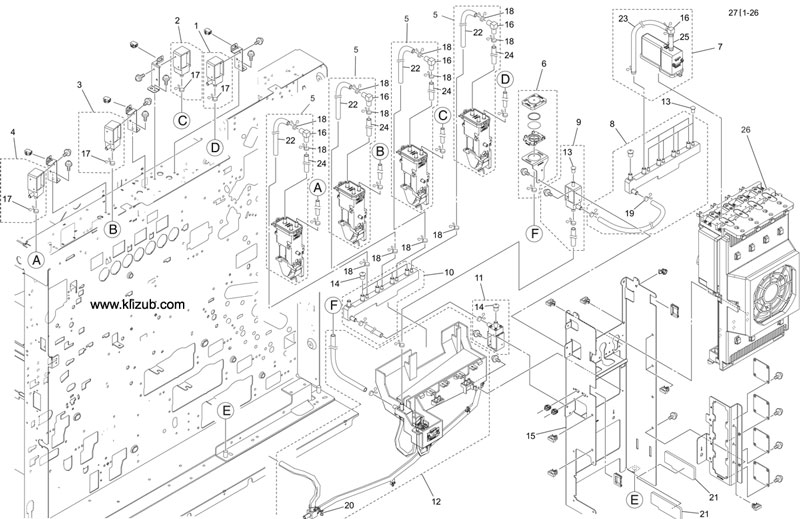

Ink Flow Unit Tower (1)

Ref.	Партс код	Наименование
26 -1	050-79615-104	SOLENOID_WR2_B_SET
26 -2	050-79616-208	SOLENOID_WR2_C_SET
26 -3	050-79617-204	SOLENOID_WR2_M_SET
26 -4	050-79618-200	SOLENOID_WR2_Y_SET
26 -5	052-75230-008	NEGA-PRESS TANK 2 SU
26 -6	050-79612-008	PRESS. FILTER SET
26 -7	052-75251-005	PRESS TANK ASSY SET SU
26 -8	052-75252-001	PRESS AIR TANK SET SU
26 -9	050-79610-102	SOLENOID PRESS. SET
26 -10	052-75253-008	NEGA-PRESS AIR TANK SET SU
26 -11	050-79611-206	SOLENOID NEGA.-PRESS. SET
26 -12	050-79603-009	OF_PAN_ASSY
26 -13	050-79991-009	SOLENOID CAP F
26 -14	050-79990-002	HSL CAP VE
26 -16	052-68035-100	TUBE JOINT 7
26 -17	050-79621-007	T_CLIP5_SFT
26 -18	050-79623-000	T_CLIP3
26 -19	050-79620-000	T_CLIP5
26 -20	050-79622-003	T_CLIP7
26 -21	052-68030-001	INK ABSORPTIVE SHEET
26 -22	052-68031-008	TUBE LONG NEGA-PRESS TANK
26 -23	052-68032-004	TUBE LONG PRESS TANK
26 -24	052-68033-000	TUBE SHORT NEGA-PRESS TANK
26 -25	052-68034-007	TUBE SHORT PRESS TANK
26 -27	052-75250-009	INK SUPPLY UNIT SU

Ink Flow Unit Tower (2)

Ref.	Партс код	Наименование	Примечание
27 -2	050-79608-000	IL_FAN
27 -3	050-79943-004	HEAT_SINK_

Bellows Unit

Ref.	Партс код	Наименование
28 -1	050-79605-001	BELLOWS_MOTOR
28 -2	050-79604-005	REG_BELLOWS
28 -3	444-33010-008	SENSOR PS119ED1
28 -4	444-30008-100	SENSOR LG248NL1
28 -5	050-79609-007	REG_SEN_BRACKET
28 -6	050-79620-000	T_CLIP5
28 -7	052-53004-101	WIRE HARNESS TWRIF
28 -12	050-79602-100	BELLOWS_ASSY_SET

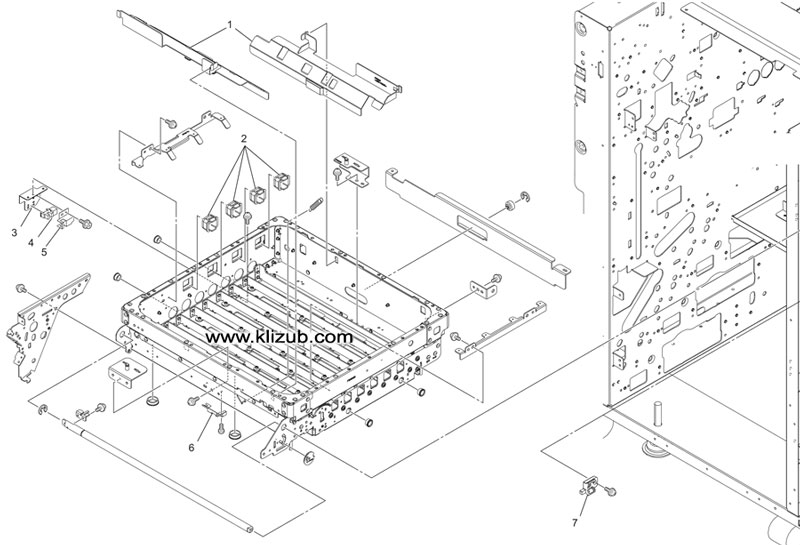

Head Carriage Area

Ref.	Партс код	Наименование
29 -1	050-79707-009	HH_WIRE_COVER
29 -2	050-79669-000	TUBE_GUARD
29 -3	050-79677-002	BRACKET_BP_SENSOR
29 -4	444-30008-100	SENSOR LG248NL1
29 -5	050-18014-108	SENSOR COVER
29 -6	050-79683-002	COVER TOP EDGE SEN
29 -7	050-79842-003	HH_PURLL_KNOB

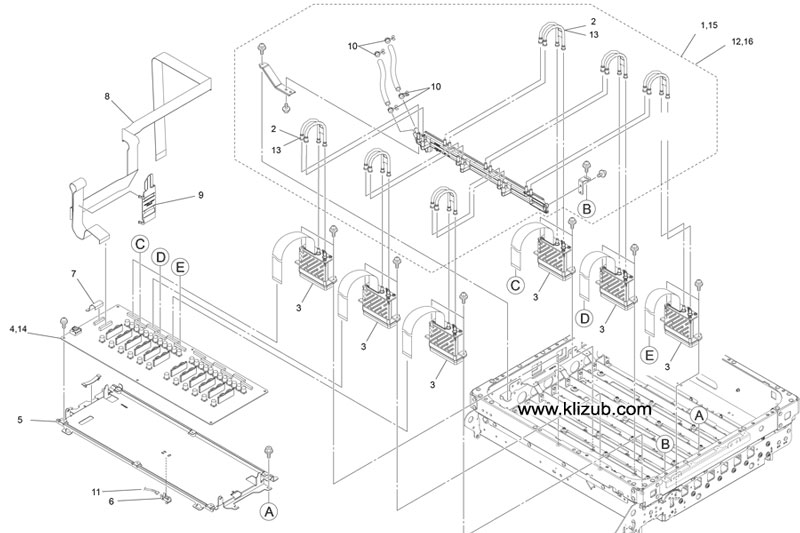

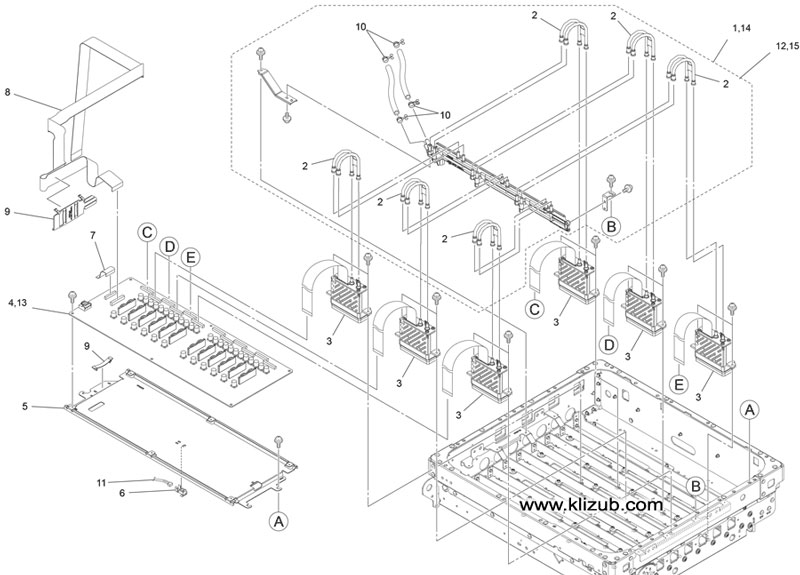

Print Head Area CK

Ref.	Партс код	Наименование	Примечание
30 -1	050-79702-007	INK_BUS_SET_C	Cyan 9,7 series
30 -2	050-79960-103	HEAD_TUBE_RE	Cyan
30 -3	050-79002-005	HEAD_CF1_SET
30 -4	050-79003-001	HDR PCB	CC9,7 series
30 -5	050-79661-009	HDR_BRACKET_I_ASSY
30 -6	050-79663-001	THERMSTOR_HLDR
30 -7	050-79791-204	FFC_40CK
30 -8	050-79792-200	FFC_50CK
30 -9	050-79659-004	FFC_GUARD
30 -10	050-79621-007	T_CLIP5_SFT
30 -11	050-79795-102	OR2HDICRT_CBL
30 -12	050-79701-000	INK_BUS_SET_B	Black 9,7 series
30 -13	050-79706-002	HEAD_TUBE	Black
30 -14	050-79004-008	OR2HDR_PCB	CC3 series
30 -15	050-79897-002	INK_BUS_SET_CA4	Cyan 3 seirs
30 -16	050-79896-006	INK_BUS_SET_BA4	Black 3 series

Print Head Area MY

Ref.	Партс код	Наименование	Примечание
31 -1	050-79703-003	INK_BUS_SET_M	Magenta 9,7 series
31 -2	050-79706-002	HEAD_TUBE
31 -3	050-79002-005	HEAD_CF1_SET
31 -4	050-79003-001	HDR PCB	CC9,7 series
31 -5	050-79661-009	HDR_BRACKET_I_ASSY
31 -6	050-79663-001	THERMSTOR_HLDR
31 -7	050-79793-207	FFC_40MY
31 -8	050-79794-203	FFC_50MY
31 -9	050-79659-004	FFC_GUARD
31 -10	050-79621-007	T_CLIP5_SFT
31 -11	050-79795-102	OR2HDICRT_CBL
31 -12	050-79704-000	INK_BUS_SET_Y	Yellow 9,7 series
31 -13	050-79004-008	OR2HDR_PCB	CC3 series
31 -14	050-79898-009	INKBS_SET_MA4	Magenta 3 series
31 -15	050-79899-005	INKBS_SET_YA4	Yellow 3 series

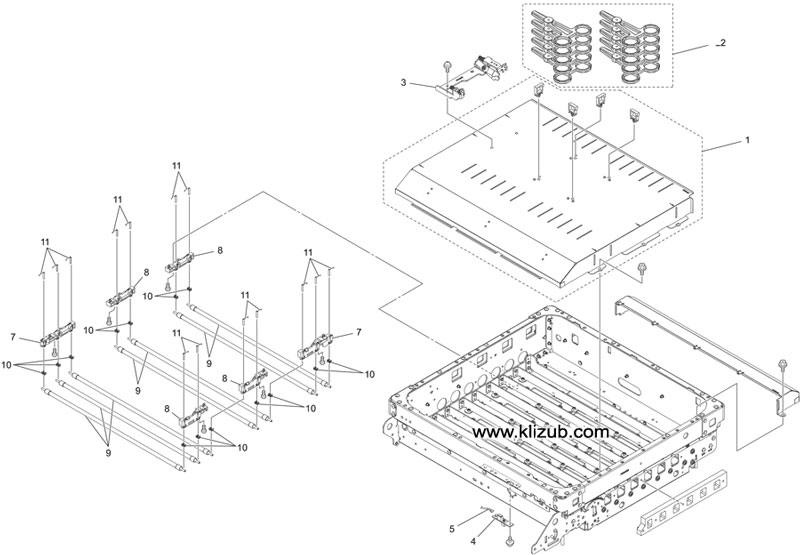

KG Roller Area

Ref.	Партс код	Наименование
32 -1	050-79660-002	C-COVER_I_ASSY
32 -2	050-79665-004	PLASTIC FORCEPS
32 -3	050-79655-106	HEAD_ADJUST_ASSY
32 -4	444-43010-103	RPR-220-PCB
32 -5	050-79882-101	WIRE HARNESS TOPSNS2
32 -7	052-68015-100	KG BASE B
32 -8	052-68014-103	KG BASE A
32 -9	052-68013-107	KG ROLLER 8
32 -10	052-68040-007	KG BEARING
32 -11	052-68041-003	KG SPRING
32 -12	052-75242-006	KG BASE B SU
32 -13	052-75241-000	KG BASE A SU

Head Cooling Fan

Ref.	Партс код	Наименование
33 -1	050-79666-000	EXHAUST_DUCT_ASSY
33 -2	490-41014-104	FAN E1033H24BYAZ
33 -3	050-79667-007	COOLING_DUCT_ASSY
33 -4	050-79668-003	COOLING_NOZZLE_SET
33 -5	050-79669-000	TUBE_GUARD

Maintenance Unit

Ref.	Партс код	Наименование
34 -1	052-75232-108	INK PAN UNIT SU
34 -2	050-79641-008	WIPE_MOTOR_SET
34 -3	050-79653-006	WIPE_ASSY
34 -4	444-30008-100	SENSOR LG248NL1
34 -5	050-79879-004	WIRE HARNESS WIPMTRSNS
34 -6	052-68003-004	KG RETRACT PLATE R
34 -7	052-68042-000	KG LIFTER
34 -8	050-84890-202	INK PAN

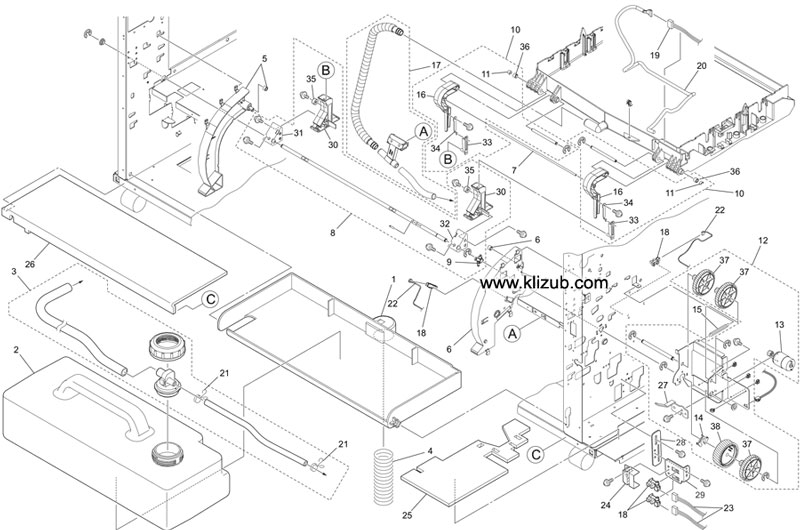

Waste Ink Tank

Ref.	Партс код	Наименование
35 -1	050-79585-108	WST_TANK_HOLDER
35 -2	050-79583-105	WST_TANK_SET
35 -3	050-79584-004	WST_CAP_SET
35 -4	050-79586-007	WST_TANK_SPRING
35 -5	050-79644-007	GUIDE_PLATE_FR_ASSY
35 -6	050-79645-003	GUIDE_PLATE_RR_ASSY
35 -7	050-85374-003	STAY
35 -8	052-75234-003	ARM SHAFT SET SU
35 -9	050-79647-006	ARM_BEARING
35 -10	052-75233-007	SLIDER SET SU
35 -11	050-79643-000	3ERING
35 -12	052-75235-000	INK PAN DRIVE MOTOR SET SU
35 -13	052-75236-006	INK PAN DRIVE MOTOR SU
35 -14	050-79651-003	DRIVE_BEARING
35 -15	050-79650-007	DRIVE_SPRING
35 -16	052-68004-000	MAINTENANCE SLIDER
35 -17	050-79654-207	EXIT_HOSE_ASSY
35 -18	444-30008-100	SENSOR LG248NL1
35 -19	050-79879-004	WIRE HARNESS WIPMTRSNS
35 -20	050-79878-202	WIRE HARNESS WIPIF
35 -21	050-79622-003	T_CLIP7
35 -22	050-79884-008	WIRE HARNESS MEINPOSSNS
35 -23	050-79859-003	WIRE HARNESS MENTIF
35 -24	052-68039-009	SENSOR COVER PLATE WST TANK
35 -25	052-10005-007	INK ABSORPTIVE SHEET RR
35 -26	052-10006-003	INK ABSORPTIVE SHEET TANK
35 -27	052-68027-000	GUIDE R TRAY RAIL
35 -28	050-68006-009	SNR PLATE A
35 -30	052-68007-107	MAINTENANCE ARM
35 -31	052-68006-100	ARM PLATE F
35 -32	052-68008-103	ARM PLATE R
35 -33	052-68026-004	ARM GUIDE MAINTENANCE
35 -34	052-68028-007	GUIDE HOLDING
35 -35	030-14133-002	COLLAR SLIDE RACK P-F-T
35 -36	050-84616-003	P-ROLL-RING
35 -37	651-00079-008	HELICAL GEAR M0.8X78+M0.8X15
35 -38	651-00080-103	HELICAL GEAR M0.8X78X22

Electrical Components Area

Ref.	Партс код	Наименование
36 -1	052-75001-009	ENGINE CONTROL PCB SU
36 -2	050-79596-002	PCB_PLATE
36 -3	050-79595-006	ARM
36 -5	052-50007-207	POWER SUPPLY PS25-NWW
36 -7	052-50005-000	I-PF PCB
36 -10	050-79590-004	HINGE
36 -11	050-79594-000	PS_BRA_ASSY
36 -12	052-53005-000	MAIN POWER SW
36 -13	050-79888-003	WIRE HARNESS SCANP
36 -14	052-53014-000	INLET
36 -15	050-50903-208	PF-RELAY-PCB
36 -16	050-79861-105	WIRE HARNESS RFDRV
36 -17	052-53003-105	WIRE HARNESS PSUNIT
36 -18	052-53004-101	WIRE HARNESS TWRIF
36 -19	050-79868-207	WIRE HARNESS RRUACT
36 -20	052-53008-204	WIRE HARNESS RRUSNC
36 -21	052-53004-101	WIRE HARNESS TWRIF
36 -22	050-79863-400	WIRE HARNESS FRNT
36 -23	052-53007-100	WIRE HARNESS IPCONN3
36 -24	050-79869-106	WIRE HARNESS IPFTSZ
36 -25	050-79870-104	WIRE HARNESS IPFEVA
36 -26	052-53010-101	WIRE HARNESS I-PFTP

PMS Unit

Ref.	Партс код	Наименование
37 -1	052-75227-104	CONTROLLER PCB UNIT SU
37 -2	052-75254-004	IP PCB ASSY SU
37 -3	052-50004-003	DECOUPLE-PCB
37 -4	052-53012-007	WIRE HARNESS CTL-DECOUPLE
37 -5	052-53013-100	WIRE HARNESS 2 CTL-DECOUPLE
37 -6	052-53003-105	WIRE HARNESS PSUNIT
37 -7	052-53002-109	WIRE HARNESS PNL
37 -8	052-75522-009	HDD CC 2 SU
37 -9	052-75265-006	WIRE HARNESS SATA SIGNAL
37 -10	052-75266-002	WIRE HARNESS HDD POWER
37 -11	052-53001-102	WIRE HARNESS USBM
37 -12	050-79793-207	FFC_40MY
37 -13	050-79794-203	FFC_50MY
37 -14	050-79791-204	FFC_40CK
37 -15	050-79792-200	FFC_50CK
37 -16	052-53007-100	WIRE HARNESS IPCONN3
37 -17	050-79590-004	HINGE
37 -18	052-75264-000	FAN PMS
37 -19	052-75261-000	PMS PCB
37 -20	052-75262-007	MEMORY 1GB
37 -21	050-53954-105	WIRE HARNESS LVDS

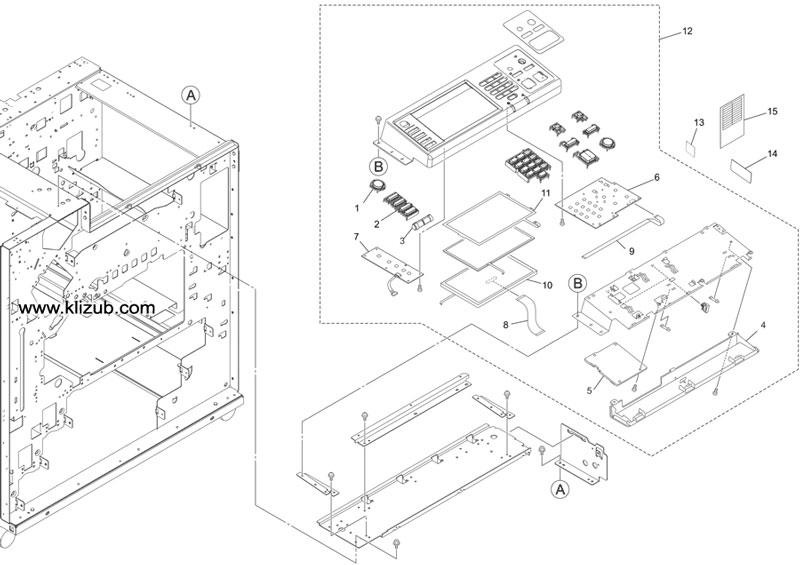

Operation Panel Area

Ref.	Партс код	Наименование
38 -2	050-37021-000	FUNCTION/COUNTER KEY
38 -3	050-37017-002	COVER START/STOP LAMP
38 -4	050-37002-005	COVER PANEL LOWER
38 -5	052-75256-201	PNL CTL PCB
38 -6	052-75257-003	TEN KEY PCB
38 -7	052-75258-000	MODE KEY PCB
38 -8	052-75259-006	LCD FFC
38 -9	052-75260-004	TEN KEY FFC
38 -10	052-75267-009	LCD ASSY
38 -11	052-75268-005	TOUCH PANEL ASSY
38 -12	052-75207-103	PANEL UNIT SU
38 -13	050-37007-007	SHEET BLIND
38 -14	050-79894-100	SEAL USB CAUTION
38 -15	050-37033-105	SEAL FUNCTION

Cover Area

Ref.	Партс код	Наименование
39 -1	050-79764-002	COVER_TOP_R
39 -2	050-79763-006	COVER_TOP_L
39 -3	052-34021-003	COVER REAR R
39 -4	050-79782-000	COVER_REAR_M_AS
39 -5	050-79761-100	COVER_REAR_L
39 -6	050-79765-009	BRACKET_GND
39 -7	050-79768-008	COVER_LS_L
39 -8	052-75243-002	COVER INNER L ASSY SU
39 -9	052-75246-001	FRONT DOOR R ASSY SU
39 -10	052-34018-100	KNOB L
39 -11	050-79766-005	HINGE_L_ASSY
39 -12	050-79785-000	COVER_INNER_LOW
39 -13	050-79773-001	COVER_TR_LOW
39 -14	052-75247-105	COVER INNER M ASSY SU
39 -15	052-75248-004	COVER INNER R ASSY SU
39 -16	050-79776-000	HINGE_R_ASSY
39 -17	050-79771-106	COVER_RF_ASSY
39 -18	050-79772-102	KNOB_R
39 -19	050-79778-003	COVER_R_SIDE
39 -20	050-79777-007	COVER_EXIT
39 -21	050-79779-107	COVER_WST
39 -22	050-79788-009	RF_HOUSING
39 -23	050-75140-004	RFID PCB UNIT SU
39 -24	050-79780-008	COVER_INNER_INK
39 -25	050-79787-002	BRACKET_COUNT
39 -26	492-00001-108	COUNTER MZ-775-DC24V 117
39 -27	050-79786-103	BRACKET_TOP_L
39 -28	050-34016-005	BRACKET 1 SAFETY SW
39 -29	023-28403-105	SPRING SAFETY SW
39 -31	048-53018-100	SAFTY SW
39 -32	660-00002-004	MAGNET CATCH SM50-P
39 -33	050-79789-005	BRACKET MCATCH
39 -34	050-79790-003	COVER_LOCK_ASSY
39 -36	050-36006-007	CASE USER GUIDE
39 -37	635-10005-203	STEPPED SCREW F6X7.2 M3X4
39 -39	052-75244-009	FRONT DOOR L ASSY SU
39 -40	052-75246-001	FRONT DOOR R ASSY SU
39 -41	050-75141-000	SAFETY SW ASSY SU
39 -42	660-05112-100	CATCH TL-117

Face Down Paper Ejection Tray

Ref.	Партс код	Наименование
40 -1	050-62004-101	FACE_DOWN_TRAY
40 -2	052-62020-004	SUPPORT TRAY FD
40 -3	050-62183-006	FACE_DOWN_SUB_TRAY
40 -4	050-62007-003	SWITCHBACK_GUIDE_INNER
40 -5	050-62182-107	BRACKET FD_TRAY_HOLD_R
40 -6	050-62181-003	BRACKET FD_TRAY_HOLD_F
40 -7	050-62006-007	BRACKET FD_TRAY_R
40 -8	050-62005-000	BRACKET FD_TRAY_F
40 -9	444-33013-007	SENSOR PS124TD1
40 -10	050-62903-203	WIRE HARNESS FACE_DOWN_TRAY

/18.09.2019/

Другие новости и события

13.12.2021 Сервисный центр раскатных цилиндров (печатных барабанов) Riso, Ricoh, Duplo!

подробнее » » »

30.11.2020 Доступны к заказу узлы и запасные части Riso EZ300

подробнее » » »

24.11.2020 Доступны к заказу узлы и запасные части Riso EZ230

подробнее » » »
